120A SB120 Dual Powerpole Connector w/Contacts
SKU: VUPN8671
manufacturer: Anderson Power Products®
manufacturer part number: 6800G3
Anderson Powerpole connectors are the standard power connector for many emergency communications agencies, Ham Radio, Etc.
This is the high-current 120A dual connector version that is often found on large 12VDC systems, UPS backups, etc. The hot-plugging rating of this connector is 60 amps - The contacts themselves are rated for 120A each, and the entire set is UL rated for 120 Amps.

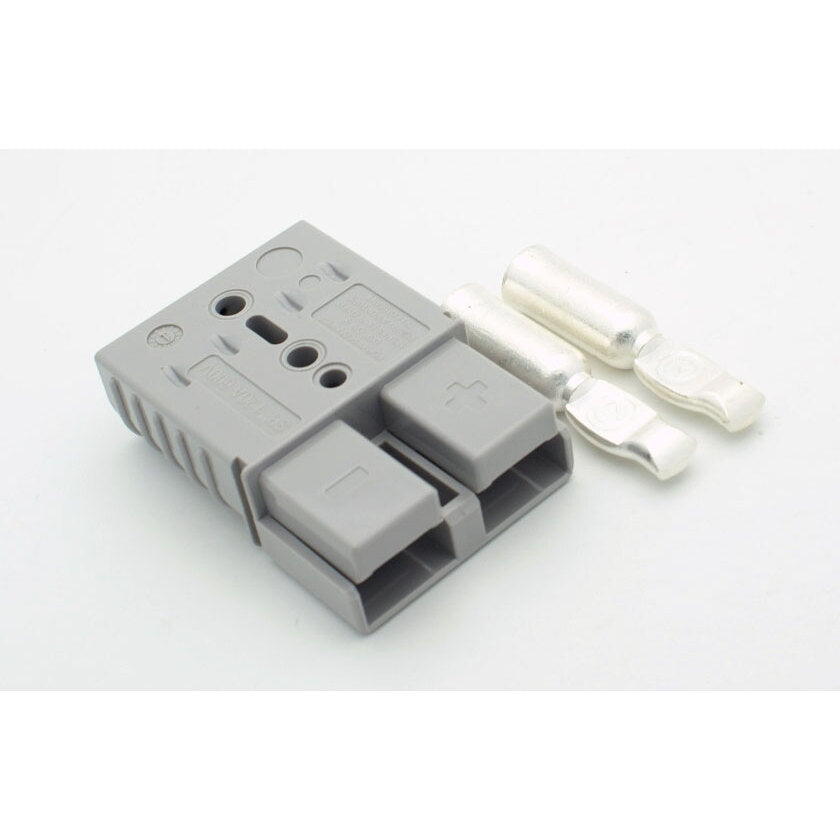

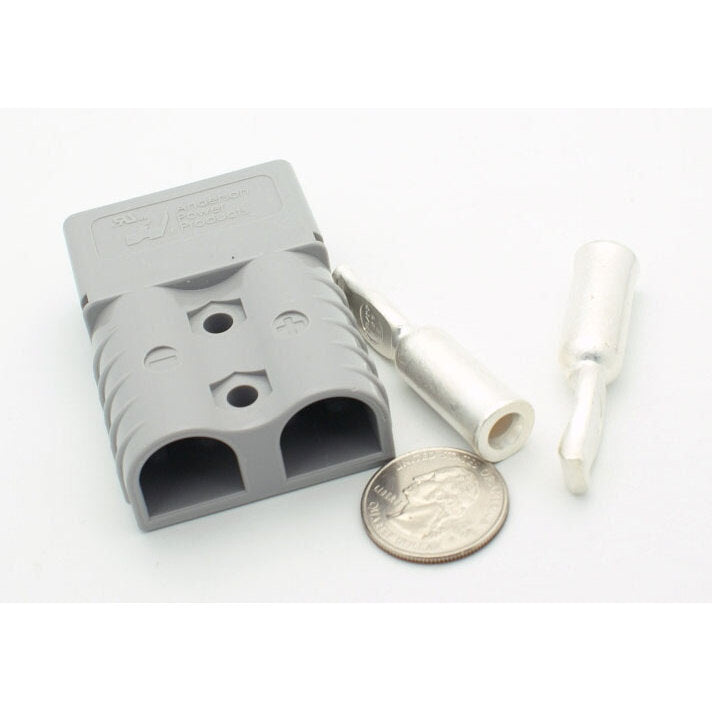

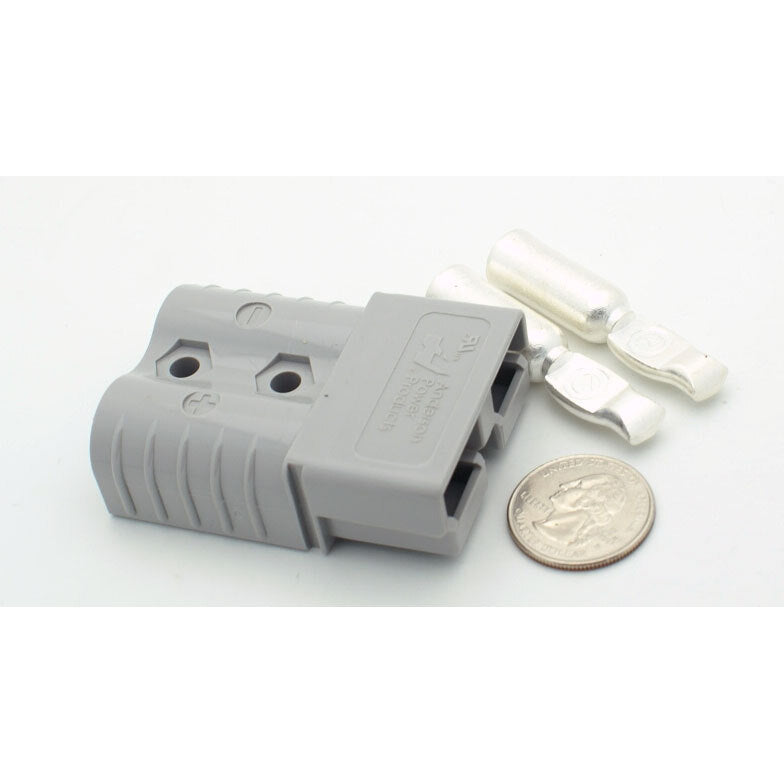

This is a complete set that includes the connector housing and two crimp/solder pins for 6AWG wire.
Powerpole® connectors are both polarized and genderless, so you never have to worry about male vs. female or positive vs. negative. Connections can be quickly made and remade in the dark without any hassles. The 120 Amp connector can handle demanding loads and mates securely.
Highly conductive silver-plated copper contacts allow minimal contact resistance at high currents. Self-wiping action on make and break keeps conducting surfaces clean. Contact dents keep connectors mated in high-vibration applications and provide quick-break, snap action upon disconnect.
Features:
QTY: 1 Connector Set - Includes SB50 Shell/Housing and 2 contacts.
Powerpole® is a registered trademark of Anderson Power Products.
manufacturer part number: 6800G3
Anderson Powerpole connectors are the standard power connector for many emergency communications agencies, Ham Radio, Etc.
This is the high-current 120A dual connector version that is often found on large 12VDC systems, UPS backups, etc. The hot-plugging rating of this connector is 60 amps - The contacts themselves are rated for 120A each, and the entire set is UL rated for 120 Amps.
This is a complete set that includes the connector housing and two crimp/solder pins for 6AWG wire.
Powerpole® connectors are both polarized and genderless, so you never have to worry about male vs. female or positive vs. negative. Connections can be quickly made and remade in the dark without any hassles. The 120 Amp connector can handle demanding loads and mates securely.
Highly conductive silver-plated copper contacts allow minimal contact resistance at high currents. Self-wiping action on make and break keeps conducting surfaces clean. Contact dents keep connectors mated in high-vibration applications and provide quick-break, snap action upon disconnect.
Features:
- Color: Grey
- Rating: 60A Hot Plug, 120A Continuous
- Wire Size: 6AWG
QTY: 1 Connector Set - Includes SB50 Shell/Housing and 2 contacts.
Powerpole® is a registered trademark of Anderson Power Products.
