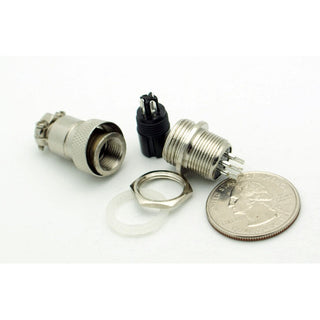

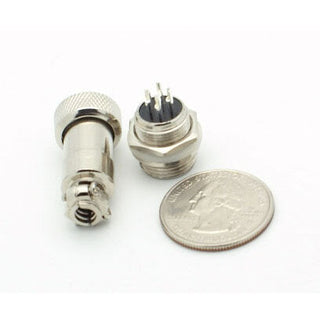

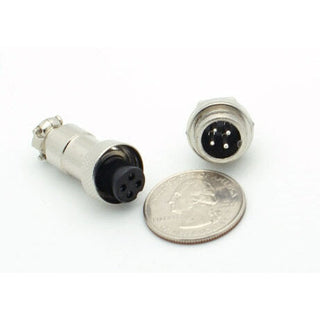

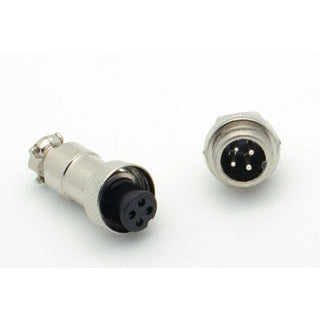

4 Pin Miniature Microphone Connector (Male/Female Pair)
4 Pin Miniature Microphone Connector – Male & Female PairCompact 4 Pin Microphone Connector for Audio and DIY Projects
Looking for a reliable and compact solution for your microphone or audio connections? This 4 pin miniature microphone connector set includes one male (chassis mount) and one female (inline) connector, giving you a versatile and easy-to-use pair that's perfect for many audio and communication projects. These connectors are about half the size of standard mic connectors, saving space while maintaining rugged performance.
Designed for Secure, Trouble-Free Connections
Each connector features a threaded locking ring for solid, vibration-resistant connections—even in mobile or on-the-go setups. The keyed design ensures proper polarity every time so you get reliable audio and data transfer without guesswork. The female inline connector includes built-in strain relief to help prevent cable damage during frequent use.
Versatile for Voice, Data, and Power Applications
These 4 pin mic connectors are designed for flexibility, making them ideal for microphones, audio equipment, and even small-scale power or data projects. Their compact size and robust construction make them an excellent choice for radio communication gear, portable sound systems, DIY electronics, robotics, or anywhere you need a compact, dependable connector.
Technical Specifications
- Number of Pins: 4 (fits 20AWG and smaller wire, solder cup terminals)
- Female Inline Connector: 0.45" diameter x 1.31" length
-
Male Chassis Mount:
- Panel hole size: 1/2" diameter
- Max panel thickness: 1/4"
- Current Rating: 5A maximum
- Insulation Resistance: 1000 MΩ DC min
- Dielectric Withstanding Voltage: 500VAC
- Contact Resistance: 50mΩ max
- Included: 1 pair (male and female) connectors
- Product ID: VUPN8218
Why Choose This 4 Pin Miniature Microphone Connector?
These mini XLR-style connectors provide a professional, space-saving alternative for your next audio, data, or small power connection project. Easy to solder, easy to install, and built to last—it's a smart choice for hobbyists and everyday users alike!
