3 Pin Miniature Microphone Connector (Male/Female Pair)
3 Pin Miniature Microphone Connector – Male and Female PairCompact 3 Pin Miniature Microphone Connector Set
Upgrade your audio connections with this 3 pin miniature microphone connector pair. This set includes one male chassis mount connector and one female inline connector, giving you everything you need for a reliable and secure audio connection. Perfect for microphones, audio equipment, and DIY projects, these miniature microphone connectors are about half the size of standard microphone connectors, saving space without sacrificing durability.
Features of the 3 Pin Microphone Connector
- Keyed design for easy, mistake-free connections and correct polarity every time.
- Threaded locking ring ensures a secure fit even in mobile and high-vibration environments.
- Suitable for voice, data, and power applications.
- Female inline connector includes built-in strain relief for added cable protection.
- Versatile audio connector for home, studio, and field use.
Technical Details
Female Inline Plug
- Number of Pins: 3
- Solder Cups: Accepts 18-20 AWG wire
- Dimensions: 0.45" diameter x 1.31" long
Male Chassis Mount Jack
- Number of Pins: 3
- Solder Cups: Accepts 18-20 AWG wire
- Mounting Hole Diameter: 1/2"
- Maximum Panel Thickness: 1/4"
- Current Rating: 5A max
- Insulation Resistance: 1000 MΩ (DC min.)
- Dielectric Withstanding Voltage: 500 VAC
- Contact Resistance: 50 mΩ max
Why Choose These Miniature 3 Pin Microphone Connectors?
These 3 pin miniature microphone connectors are built for lasting performance and easy installation. Their compact size makes them perfect for crowded panels and portable audio setups. With solder-type contacts, you can get a solid electrical connection for your audio gear, communications equipment, or custom projects.
What’s Included

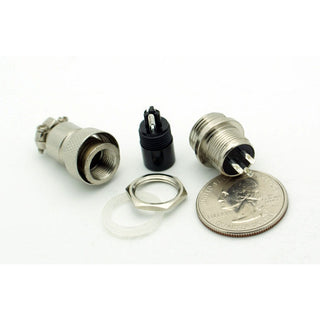

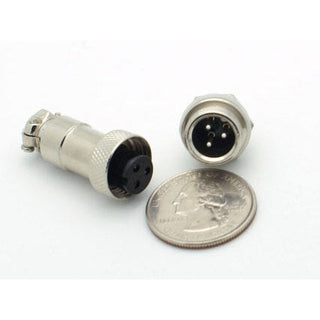

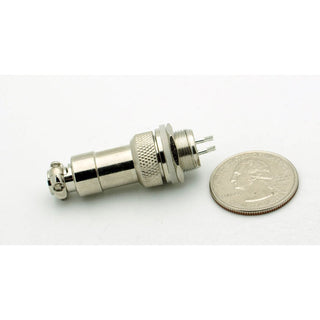

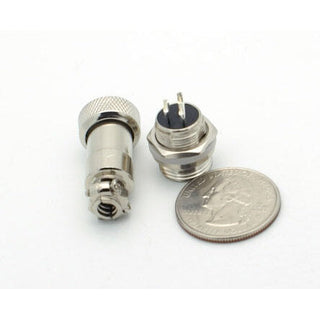

- One (1) male chassis mount 3 pin microphone connector
- One (1) female inline 3 pin microphone connector
Looking for a compact, rugged, and reliable 3 pin microphone connector? This miniature microphone connector set is a great solution for audio and power applications. Product ID: VUPN8217
