CAT-6 Cable Solid (Bulk / By the Foot)
manufacturer: Wavenet
manufacturer part number: 6E04URBL

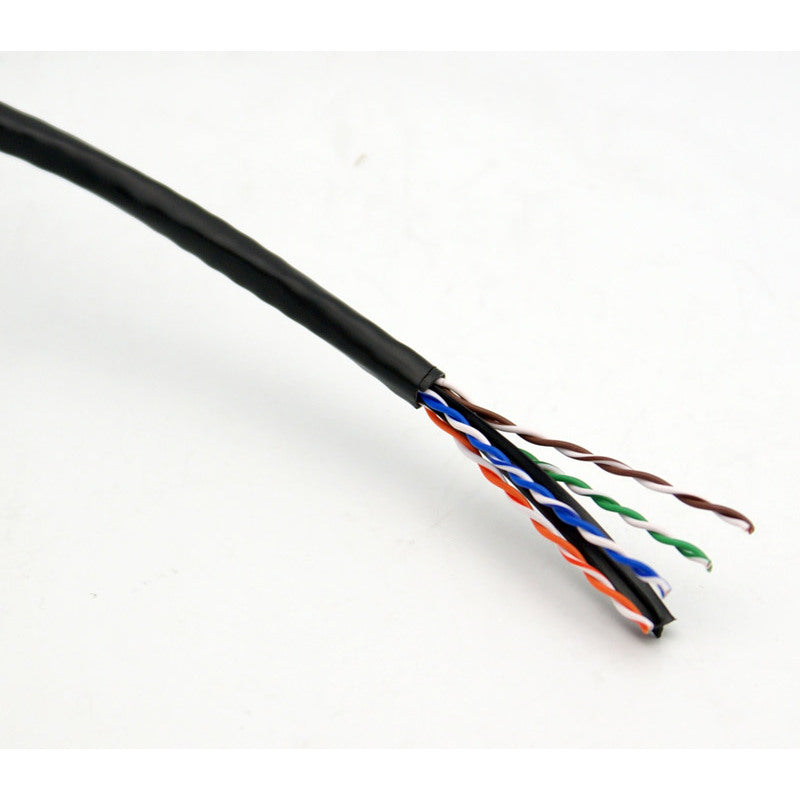

Bulk Cat-6E Solid cable.
This cable is a standard CAT-6E Solid Conductor cable. Commonly used for Ethernet networking and telephone communications. Cat-6 supports gigabit, but requires RJ-45 connectors and jacks to be CAT-6 compatible. This cable is CMR rated (riser), and has a flame retardant PVC jacket. For full specifications, please see the datasheet link above.

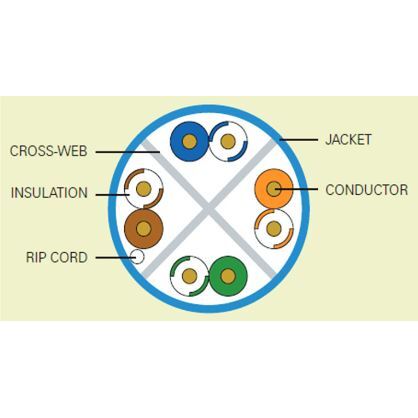

| Number of Conductor Pairs: | 4 |
| Size: | 23 AWG |
| Stranding: | Solid Conductor |
| Conductor Material: | Solid Annealed Bare Copper |
| Shield Material: | Unshielded |
| Rip Cord: | Yes |
| Insulation Material: | Polyethylene |
| Insulation Overall Diameter: | 0.040in |
| Insulation Thickness: | 0.0088in |
| Jacket: | Flame Retardant PVC |
| Outer Jacket Wall Thickness: | 0.023in |
| Outer Jacket Nominal OD: | 0.244in |
| Weight per 1000': | 30lbs |
The cable jacket is printed with: "E223070-GW 23AWG 4PR UTP CMR C(UL)US VERIFIED 75C FT4 (UL) CATEGORY 6 C(ETL)US FT4 TESTED TO 550 MHZ ETL VERIFIED TO TIA/EIA - 568C.2 TO ****FT"
Several colors may be available, please inquire at the time of purchase to see what we have available.
Sold by the foot, or by a box of 1000'. Please enter the quantity in feet that you would like to purchase. For example, to purchase 25 feet, enter the quantity as 25
