100K 2 Watt Linear Taper Potentiometer
100K 2 Watt Linear Taper Potentiometer - PEC KU SeriesReliable 100K Ohm 2 Watt Linear Taper Potentiometer
Upgrade your electronic projects with this high-quality 100K Ohm 2 Watt Linear Taper Potentiometer. Perfect for audio, DIY electronics, and repair applications, this single-turn potentiometer offers reliable and precise control in an easy-to-use design. Built to meet MIL Spec standards (MIL-R-94, QPL Listed), it's ideal for both hobbyists and professionals.
Key Features
- Resistance: 100K Ohm (100,000Ω)
- Power Rating: 2 Watt
- Tolerance: ±10%
- Linear Taper (KU Series) for smooth, predictable adjustment
- Single-turn, 314° rotation rated for 25,000 cycles
- Stainless steel round shaft: 1/4" diameter, 7/8" length, with 0.065" deep split for anti-rotation knobs
- Termination style: Solder eyelets with gold-plated terminals
- Panel mount, 3/8" mounting hole with built-in locating pin (foldable or removable)

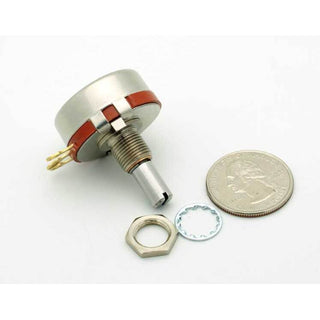

- Includes mounting hardware: nut and lock washer
- Carbon film resistive element for durability
- Meets or exceeds MIL Spec for premium reliability
Technical Specifications
- Manufacturer: NTE Electronics
- Manufacturer Part Number: 501-0015
- PEC Part Number: KU1041S28

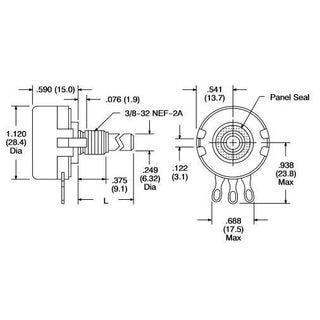

- Body Dimensions: 1.12" diameter x 0.536" height
- Rotation: 1-turn (Single turn), clockwise to increase resistance
- Mounting Type: Panel Mount (3/8" hole)
- Resistive Material: Carbon
- Termination Style: Solder eyelet, gold-plated
Easy to Install & Versatile
Designed for straightforward panel mounting, this 2 watt potentiometer fits a standard 3/8" hole and includes a built-in locating tab for stability—which can be cut or folded if not needed. The smooth stainless steel shaft supports a wide range of knob styles, including those with anti-rotation features.
Quality You Can Trust
With a rugged carbon element and gold-plated terminals, this 100K potentiometer is built for long-lasting performance and minimal signal loss. Ideal for volume controls, tone controls, and adjustable power supplies.
Documentation & Datasheet
For additional technical information, see the datasheet (pdf download).
QTY: 1 x 100K Ohm 2 Watt Linear Taper Potentiometer
