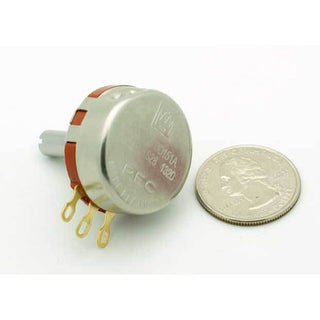

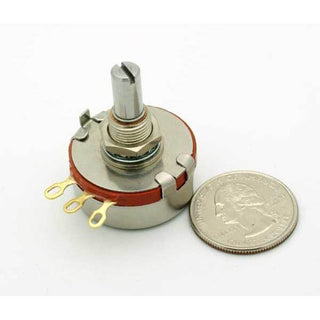

1K 2 Watt Linear Taper Potentiometer

Easy-to-Use Variable Resistor for DIY and Home Projects

Looking for a reliable and versatile 1K 2 Watt linear taper potentiometer? This rotary potentiometer is perfect for everyday consumers, hobbyists, and makers. Easily adjust resistance and control volume, tone, or brightness in your electronics projects with smooth, precise movement.

Key Features & Benefits

• Value: 1K Ohm resistance – ideal for audio controls and adjustable circuits.
• Power: Handles up to 2 Watts, suitable for demanding applications.
• Linear Response: Linear taper (KU curve) for even, predictable adjustment across the entire range.
• Durable Design: Hot molded carbon element and stainless steel round shaft.

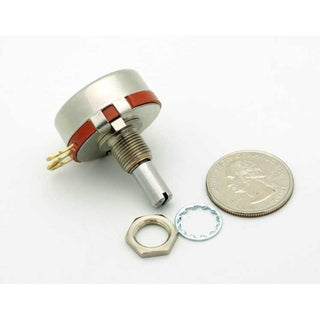

• Easy Installation: Mounts to a standard 3/8" panel hole; includes nut and lock washer for secure panel mounting.
• Smooth Operation: 314° rotation with single-turn (1 rotation) adjustment.
• Long Life: Rated for 25,000 cycles for lasting performance.
• Versatile Use: Great for audio projects, guitar pedals, amplifier repairs, lighting dimmers, and more.

Specifications

• Resistance: 1 KΩ (1,000 Ohms)
• Power Rating: 2 Watt
• Tolerance: ±10%
• Number of Turns: Single turn (1 rotation clockwise from minimum to maximum)

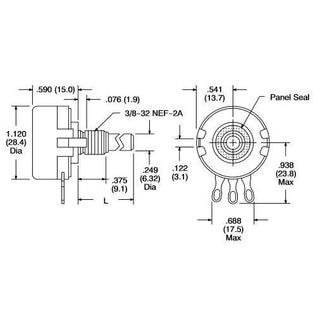

• Shaft Length: 7/8"
• Shaft Diameter: 1/4"
• Shaft Material: Stainless Steel, smooth and round, with split top for anti-rotation knobs
• Termination: Solder eyelets, gold plated for reliable contacts
• Mounting Style: Panel mount (fits 3/8" hole), includes built-in locating tab (can be removed if not needed)
• Body Size: 1.12" diameter x 0.536" height
• Rotation: 314° (nearly full circle)
• Resistive Material: Carbon
• Series: PEC KU/RV4NAY
• Manufacturer: NTE (Part Number: 501-0005; PEC P/N: KU1021S28)
• Standards: Meets or exceeds MIL-R-94, QPL Listed
• Quantity: 1 potentiometer per package (VUPN8110)

Why Choose This 1K Ohm Linear Potentiometer?

This adjustable resistor combines ease of use, reliability, and high performance—perfect for any DIY electronics project or quick repair. With gold plated terminals and a rugged stainless steel shaft, you'll enjoy long-lasting, smooth operation. Compatible with most volume control knobs and mounting panels.

Perfect for Consumers, Hobbyists, and Makers

Whether you’re building a new audio setup, repairing a vintage amp, or creating custom lighting, this 1K linear potentiometer makes your project easier. Its straightforward installation and durable build make it a top choice for home electronics enthusiasts.
