500 Ohm 2 Watt Linear Taper Potentiometer

Reliable 500 Ohm Potentiometer for Everyday Projects

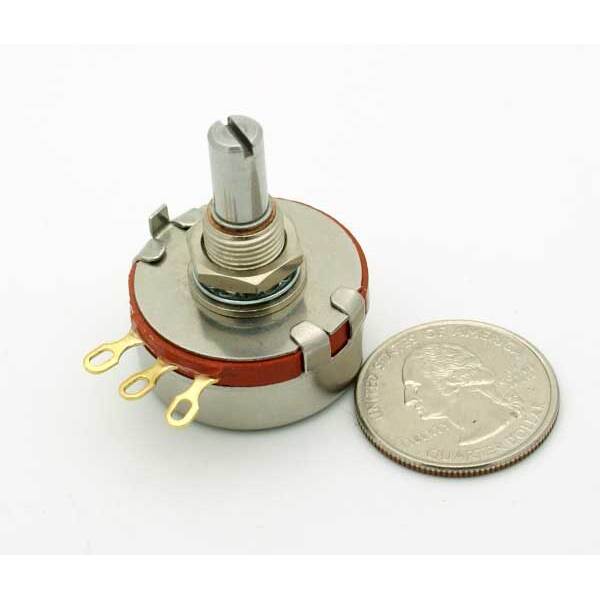

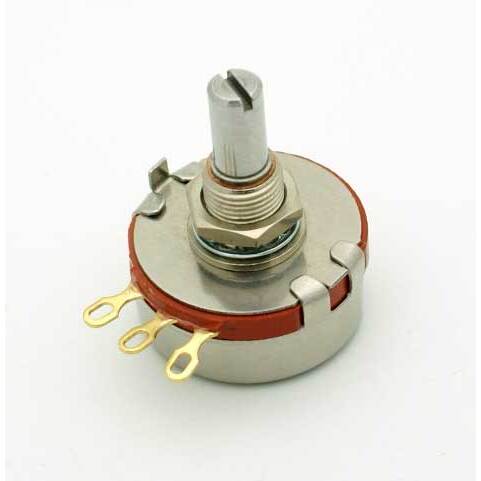

This 500 Ohm 2 Watt Linear Taper Potentiometer is perfect for DIY electronics, audio projects, and precise resistance control tasks. Featuring a panel-mount design, durable stainless steel round shaft, and gold-plated solder eyelet terminals, it's built for smooth, reliable performance in both new builds and repairs.

Key Features of the 500 Ohm 2 Watt Linear Taper Potentiometer

• Resistance: 500 Ohms (Ω)
• Power Rating: 2 Watts
• Linear Taper (KU Type): Adjusts resistance evenly for consistent output—ideal for volume controls and adjustable circuits
• Tolerance: ±10%
• Number of Turns: Single rotation, clockwise for increased resistance
• Actuator/Shaft: 7/8" long, 1/4" diameter, stainless steel round shaft with 0.065" deep slot at the top
• Panel Mounting: Installs in a 3/8" hole with built-in locating pin for extra stability
• Terminals: Gold-plated solder eyelets for easy, corrosion-resistant connection
• Life Cycle: Rated for up to 25,000 smooth, 314° rotations
• Quality Standard: Meets or exceeds MIL-R-94, QPL listed
• Material: Hot-molded carbon resistive element
• Manufacturer: NTE Electronics
• Manufacturer Part Number: 501-0004

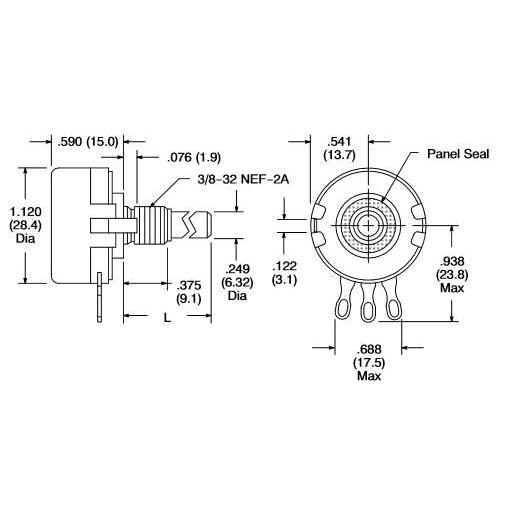

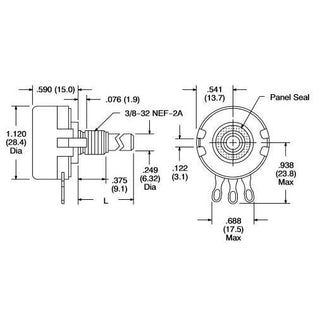

• Body Size: 1.12" diameter x 0.536" height

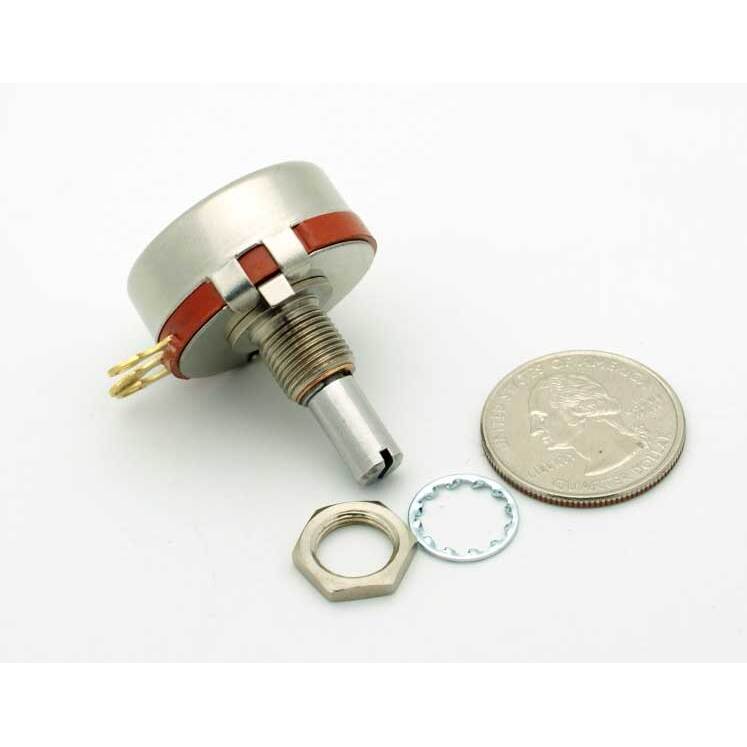

• Includes: Nut, lock washer, and mounting hardware

Easy Installation and Versatile Applications

Designed for everyday consumers, this 2 watt potentiometer is easy to mount and fits any standard 3/8" panel cutout. The gold-plated terminals ensure excellent electrical contact, while the smooth stainless steel shaft is compatible with most knobs—great for audio controls, model railroads, and adjustable power supplies.

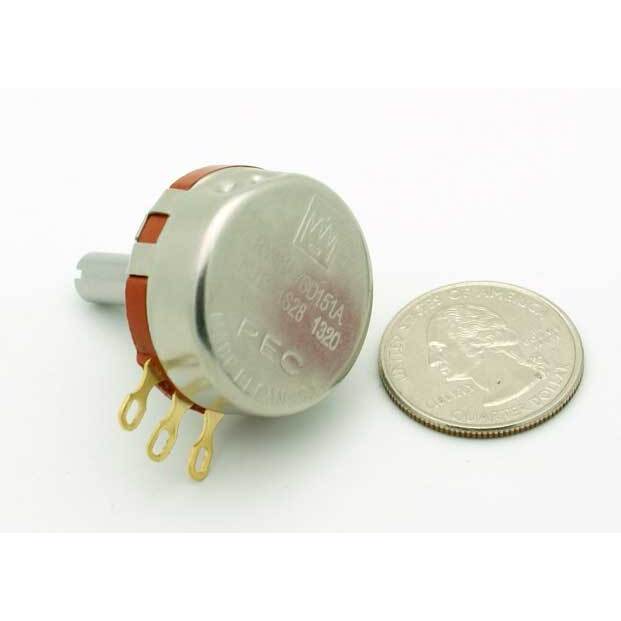

PEC KU/RV4NAY Series & Documentation

This potentiometer is part of the PEC KU/RV4NAY series (PEC part number: KU5011S28) for trusted quality and durability. For more technical details, please refer to the datasheet (pdf download).
