6A Miniature Push Button Circuit Breaker

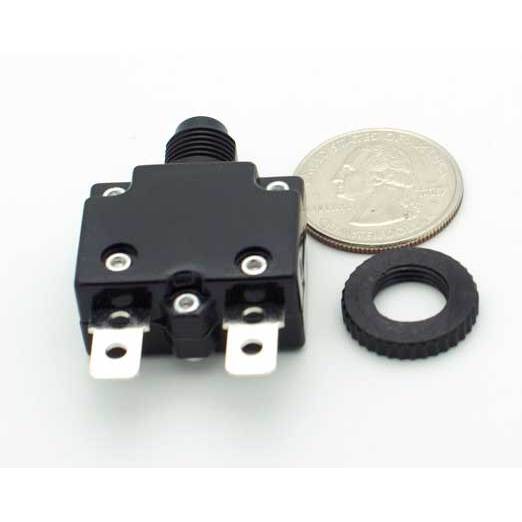

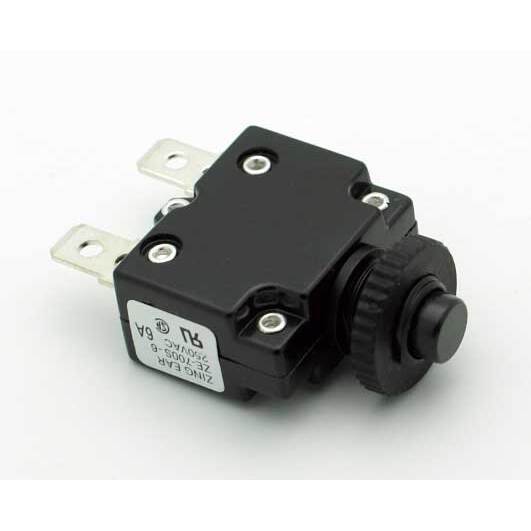

6A Miniature Push Button Circuit Breaker - Manual ResetReliable Protection: Miniature Push Button Circuit Breaker
Looking for dependable overcurrent protection in tight spaces? This 6A miniature push button circuit breaker from Philmore is built for ease of use and reliability. Designed for easy panel mounting, it's a great choice for audio equipment, power supplies, small appliances, or other everyday electronics. Compact and simple to reset—just push the button!
Features of the 6 Amp Push Button Circuit Breaker
- Current Rating: 6 Amps
- Voltage Rating: 125VAC / 250VAC
- Type: Manual reset, push-to-reset circuit breaker
- Mounting: Panel mount, fits 7/16” hole (0.437”); panel nut included (diameter: 0.71”)
- Terminals: Accept 0.250" quick connect/faston connectors or direct soldering
- Compact Size: Only 1.43"D x 1.1"W x 0.57"H, with a maximum panel thickness of 0.17"
Performance You Can Trust
- Interrupt Capacity: 1000A @ 125VAC, 2000A @ 250VAC
- Contact Endurance: 500 cycles at 125VAC and 150% of rated current
- Temperature Calibration: Responds to overloads from 25°C: trips at 150% within 1 hour, and 200% within 1 minute
- Dielectric Strength: 1500VAC / 1 minute
- Insulation Resistance: Less than 100MOhm
Easy Installation for Any Project
This panel mount circuit breaker is smaller than most thermal circuit breakers, making it perfect for projects where space is limited. The manual reset function allows quick recovery from overloads—just push to reset and get back up and running, no tools needed!
Ideal For Everyday Use
Whether you're a DIY enthusiast, home electronics hobbyist, or upgrading your gear, this thermal push button circuit breaker offers easy installation and trusted protection. Its compact size and simple design make it a versatile choice for almost any application.
Product Details
- Philmore Part Number: 30-6006
- QTY: 1 x 6A Miniature Push Button Circuit Breaker
