IR Phototransistor - NPN - QSC112 - 880nm
SKU: VUPN7995
manufacturer: Fairchild
manufacturer part number: QSC112
This 3mm sized IR Phototransistor is made from black plastic to enable it to be easily distinguished from an LED. Generous 26mm long leads enable this phototransistor to be breadboard friendly.
For full specifications, please see the linked datasheet above.

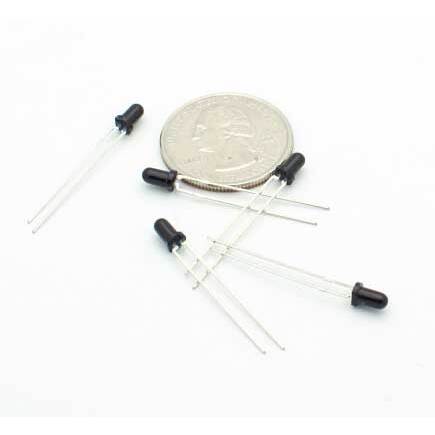

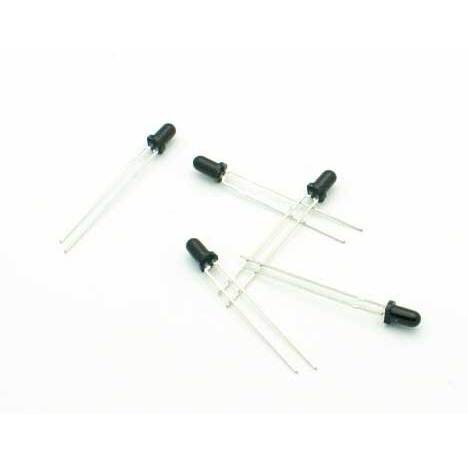

QTY: 1 x IR Phototransistor - NPN - QSC112 - 880nm (several pictured)
manufacturer part number: QSC112
Documentation Links
This 3mm sized IR Phototransistor is made from black plastic to enable it to be easily distinguished from an LED. Generous 26mm long leads enable this phototransistor to be breadboard friendly.
| Peak Sensitivity Wavelength: | 880nm (IR) |
| Reception Angle: | +/- 4° |
| Collector-Emitter Dark Current: | 100nA Max |
| Collector-Emitter Breakdown: | 30V |
| Emitter-Collector Breakdown: | 5V |
| On-State Collector Current: | 1mA (min) ~ 4mA (max) |
| Saturation Voltage: | 0.4V |
| Rise Time: | 0.4us |
| Fall Time: | 0.4us |
QTY: 1 x IR Phototransistor - NPN - QSC112 - 880nm (several pictured)
