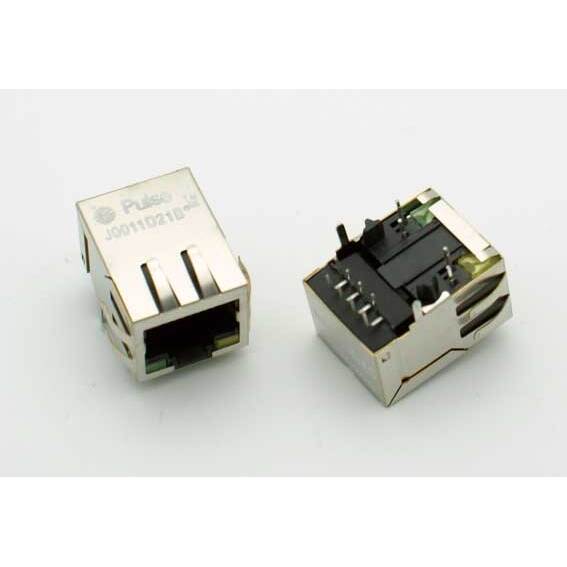

Ethernet RJ-45 Jack with LEDs and Magnetics – Horizontal PCB Mount

Easy-to-Use Ethernet RJ-45 Connector for Reliable Networking

Upgrade your network project with this Ethernet RJ-45 jack with LEDs and magnetics. This high-quality connector from Pulse (part number: J0011D21B) is designed for horizontal PCB mounting, making it ideal for custom PCBs or DIY network solutions. Its simple design helps everyday users and hobbyists achieve professional results with minimal effort.

Built-In LEDs and Magnetics for Enhanced Performance

This RJ-45 jack features integrated green and yellow LED indicators for easy link and activity monitoring, letting you know your connection status at a glance. The built-in magnetics (transformers) provide electrical isolation and minimize noise, creating a stable and reliable Ethernet port for your devices while reducing component count on your board.

Horizontal 90-Degree PCB Mount Design

The 90-degree, horizontal PCB mount RJ-45 connector offers a compact profile, perfect for designs where height is limited or where you want your network jack facing out from the side of your project enclosure. Its standard footprint makes it easy to integrate into new or existing designs.

Pulse J0011D21B Technical Highlights

• Manufacturer: Pulse
• Part Number: J0011D21B
• Type: RJ-45 jack with integrated magnetics and LED indicators
• LEDs: Green and Yellow for link/activity
• Mounting Style: Right angle (90-degree) horizontal through-hole for PCB
• Magnetics: Built-in for electrical isolation
• Compact design simplifies installation and board layout

Ideal for Many Ethernet Applications

This Ethernet port is well-suited for home networking projects, Raspberry Pi and Arduino LAN shields, custom routers, or any DIY electronics that require a reliable, horizontal PCB mount RJ-45 jack.

QTY: 1 x Ethernet RJ-45 Jack w/LEDs and Magnetics (horizontal PCB mount). Part ID: VUPN7985.
