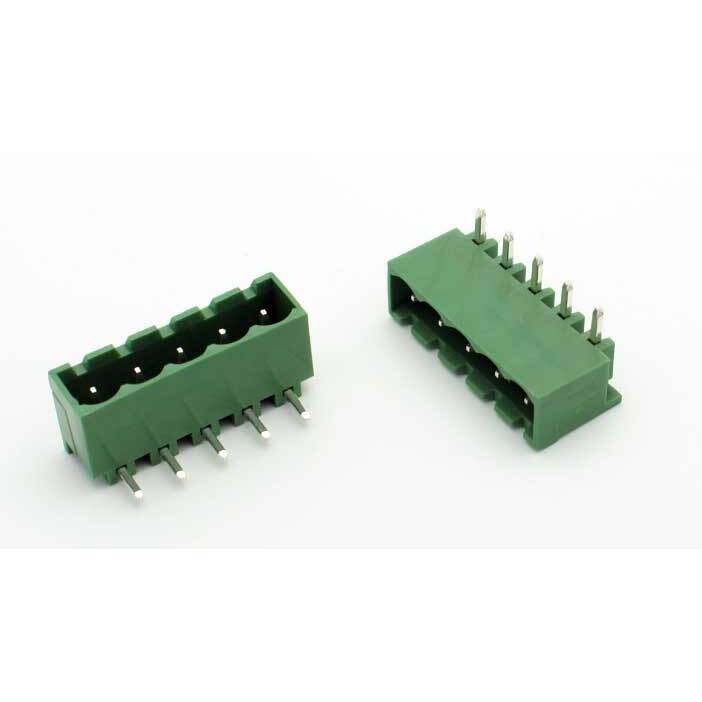

5 Position Phoenix Connector Jack – PCB Mount

Easy-to-Use 5 Position PCB Mount Connector

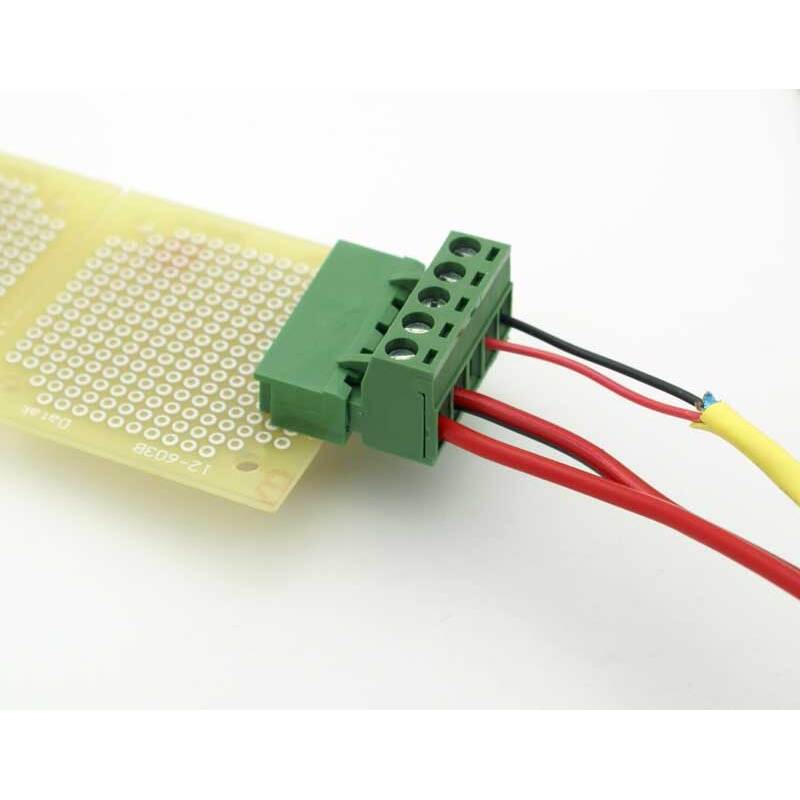

Looking for a reliable way to connect multiple wires to your circuit board? This 5 position Phoenix connector jack is designed for PCB mounting and makes wiring simple and secure. Pluggable terminal block connectors like this allow you to quickly plug and unplug groups of wires—no tools required!

Perfect Fit for Your PCB Projects

The horizontal (90°) design keeps the connector parallel to your circuit board for a neat and organized finish. With solder pins spaced 0.2" (5.08mm) apart, this Phoenix connector jack easily mounts to standard PCBs and even works well on 0.1" protoboards. Use it in DIY electronics, home automation, hobby projects, and more.

Durable & Certified Construction

• Manufacturer: Philmore
• Manufacturer Part Number: 13-2805
• Positions: 5
• Contact Material: Tin Plated Brass
• Housing Material: Type 6/6 Polyamide 94V-0 (flame retardant)
• Current Rating: 15A at 300V
• Certifications: UL Listed & CSA Certified
• Center Spacing: 0.2" (5.08mm)
• Recommended PC Hole Size: 0.055" (1.4mm) – Use #55 drill bit
• Operating Temperature Range: 105°C (221°F) Max, -40°C (-40°F) Min

Why Choose a Phoenix Connector Jack?

Phoenix connectors—sometimes called Euro Terminal Blocks—are trusted for their secure, tool-free connections. This 5 position terminal block is ideal for anyone from electronics beginners to experienced DIYers who want dependable, easy wiring on their circuit boards.

Compatible Phoenix connector terminal plugs are sold separately.
