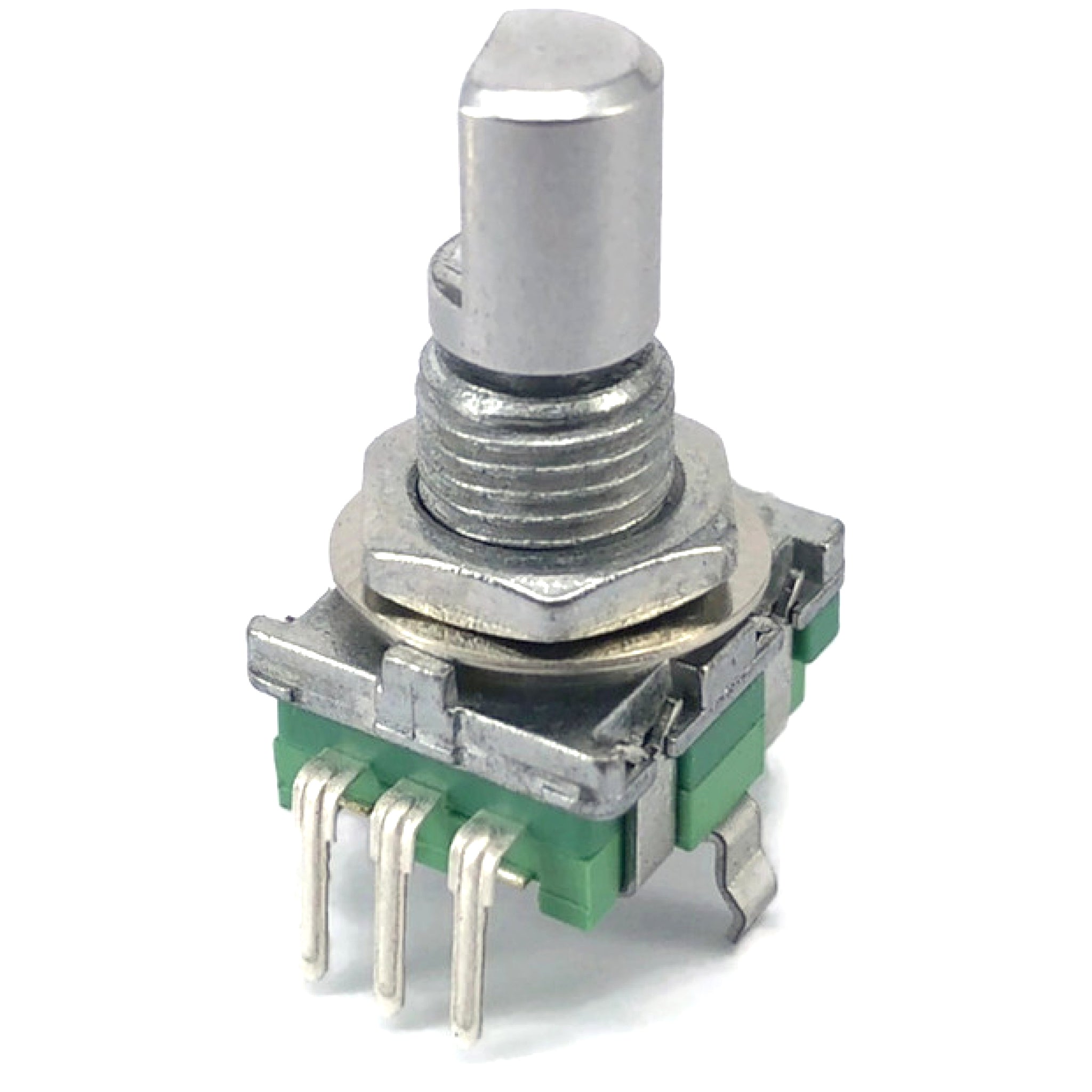

Rotary Encoder w/Push Button Switch - 5 Pin - 20 Detents - With Push Button - 360 Degree Rotation
20-Detent, 360 Degree Rotation Rotary Encoder with a built-in SPST momentary Normally-Open push-button switch. This encoder is ideal for interfacing to an Arduino or other microcontroller.
Specs:
20 Pulses per rotation
Shaft Diameter: 6mm
Shaft Length: 10mm
Dimensions: 15mm L x 12mm W x 25mm T
Rated Voltage: 5VDC
Mounting Hole Size: 7mm

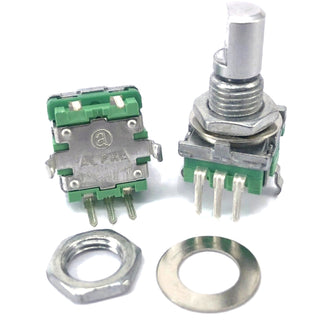

Includes washer and nut
The 2-Pin side of the encode is for the SPST push-button switch, the 3-pin side are the encoder outputs and ground. The single tab on either side of the encoder is for mounting/stabilization.
QTY: 1 x Rotary Encoder w/Push Button Switch
Previously known under part number: VUPN7453
