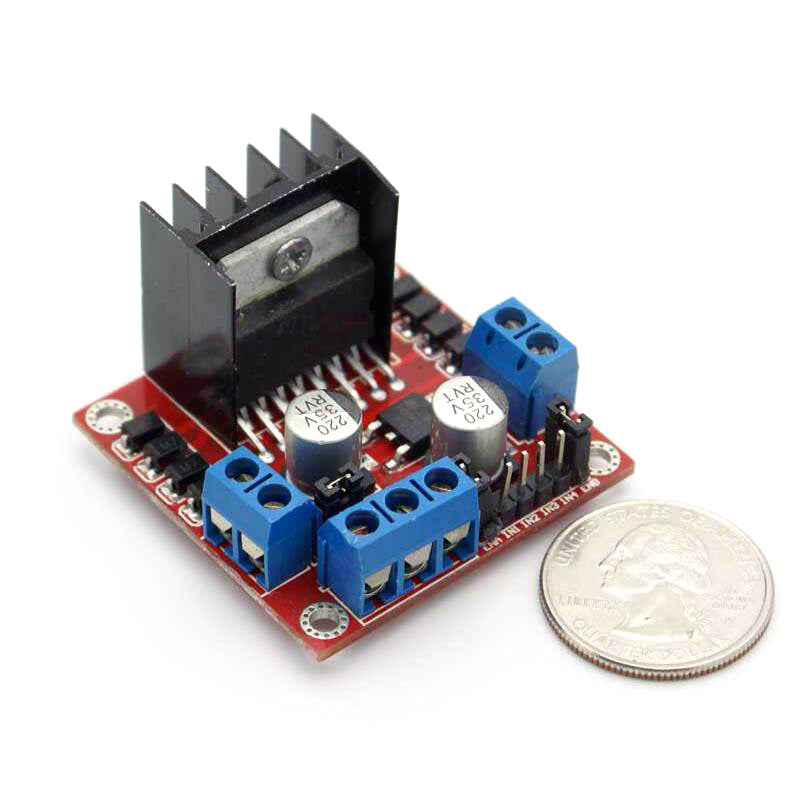

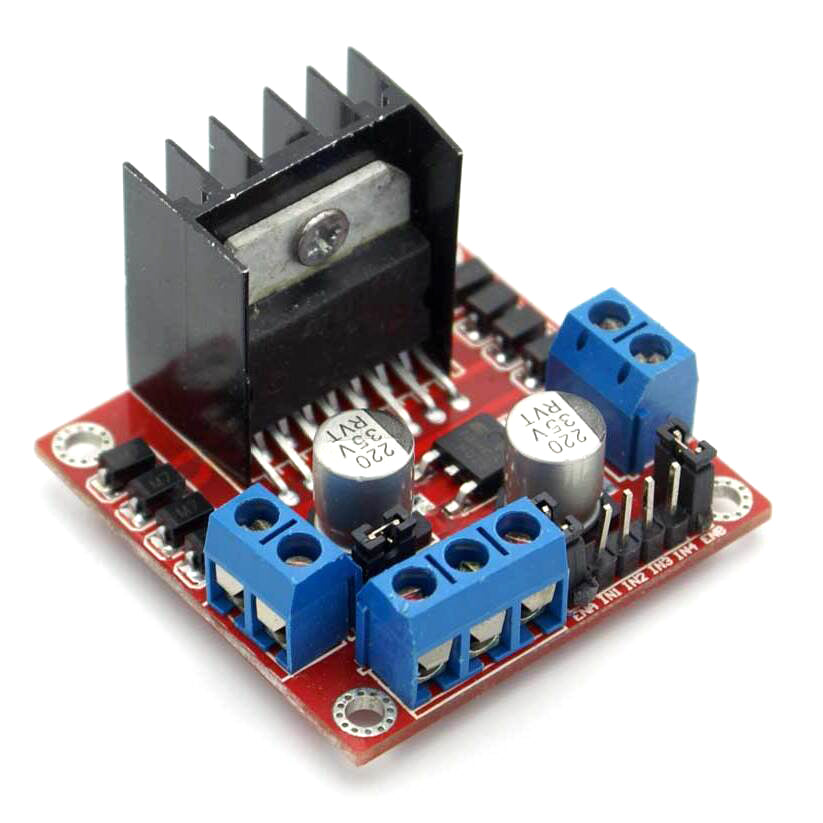

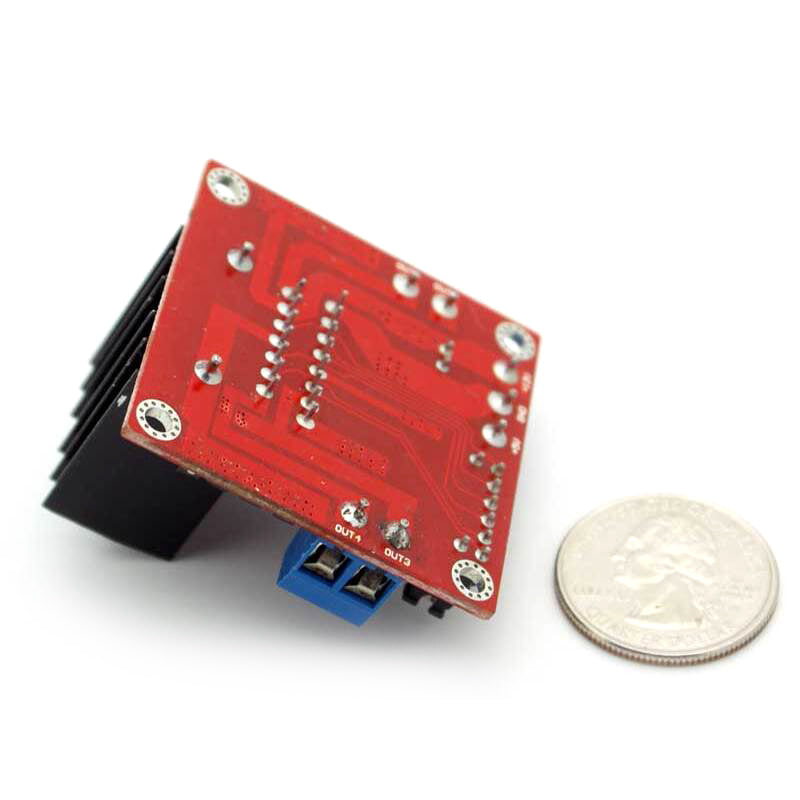

Arduino or Raspberry Pi L298N Motor Driver Module (D83)
L298N Motor Driver Module for Arduino & Raspberry PiEasy Motor Control for Your Projects
Looking for a simple way to drive DC motors or stepper motors with your Arduino or Raspberry Pi? The L298N Motor Driver Module is a user-friendly, versatile solution perfect for building robots, cars, and automated machines.
L298N Motor Driver Features
- Dual H-Bridge Motor Driver: Control two DC motors independently or a single 2-phase bipolar stepper motor easily.
- Wide Compatibility: Works seamlessly with Arduino and Raspberry Pi, making it perfect for beginners and makers.
- Durable Design: Includes a finned aluminum heatsink on the L298N chip for reliable, cool performance during continuous use.
- Onboard Power Options: Built-in 5V DC regulator with a jumper to choose between external 5V or the onboard supply.
- Flexible Connections: Screw terminals for motor power, ground, 5V supply, and each motor output for secure and easy wiring.
- Simple Logic Control: Standard 0.1-inch header pins connect to your microcontroller’s logic outputs. Only 4 control pins needed.
- Clamping Rectifiers & Filter Capacitors: Increase reliability and reduce electrical noise for smoother motor control.
- Enable Jumpers: Use jumpers to tie enable inputs to ground when required, adding extra flexibility to your setup.
- Current Handling: Each channel can switch up to 2 amps, suitable for most small to medium motors.
Technical Specifications
- L298N dual H-Bridge chip
- Input Voltage (motor VCC): 5V-35V
- Logic Voltage: 5V
- Max Current Per Channel: 2A
- Onboard 5V Regulator (jumper selectable)
- PC Board Dimensions: 1.70" x 1.70" x 1.16" (height includes heatsink)
- Mounting holes for 1/8" screws or standoffs
Simple Setup for Makers & Hobbyists
Designed for ease-of-use, just connect your motors, supply power, and link 4 logic pins to your Arduino or Raspberry Pi. Whether you’re controlling robot wheels, a conveyor, or a small stepper motor, this module offers reliable, flexible motor control for all kinds of DIY electronics projects.
Includes: 1 x L298N Motor Driver Module (VUPN7162)
