9G Digital Micro Servo for Arduino - 360 Degrees (D27)

SKU: VUPN5951
Regular price $9.95
Unit price
per

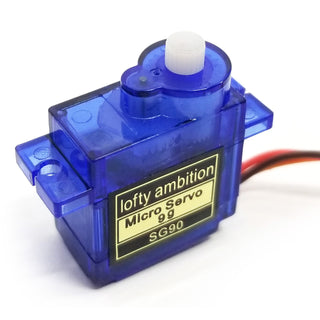

9G Micro Servo for Arduino

This tiny (and we mean tiny!) servo is a light weight mechanical actuator that can be controlled directly from the digital output pins on your Arduino or other microcontroller. Only 1 digital pin is required!
There are a plethora of tutorials online that will walk you through all aspects of controlling servos using the Arduino.

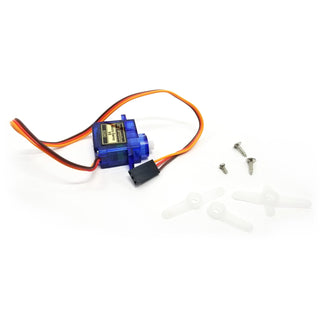

The servo comes with a 3 Pin Female 0.1" connector on a 6" cable. All you need to do is provide power, ground and a digital signal! Also included is a small assortment of plastic arms and screws to aid in attaching parts to the servo.

Description:

    Item Name: SG90 Mini Analog Servo
    Operating Speed (4.8V no load): 0.12sec/60 degrees
    Stall torque: 1.2kg / 42.3oz(4.8V);1.6 kg / 56.4oz (6.0V)
    operating voltage: 3.0-7.2V
    Angle: 360° of rotation
    Temperature range: -30℃~60℃
    Dead band width: 7us
    Item size: 3.2 x 3 x 1.2cm
    Item weight: about 9g
    Connector wire length: 24.5cm

Features:

    High quality and high cost performance.
    All Nylon Gear.
    245mm connector wire.
    Large stall torque of 1.6 Kg.
    Small size and light weight.
    With 3 sets of servo horns and fittings.
