Arduino 3S Motor Driver Shield L293D (D8)

SKU: VUPN5799
Regular price $24.99
Unit price
per

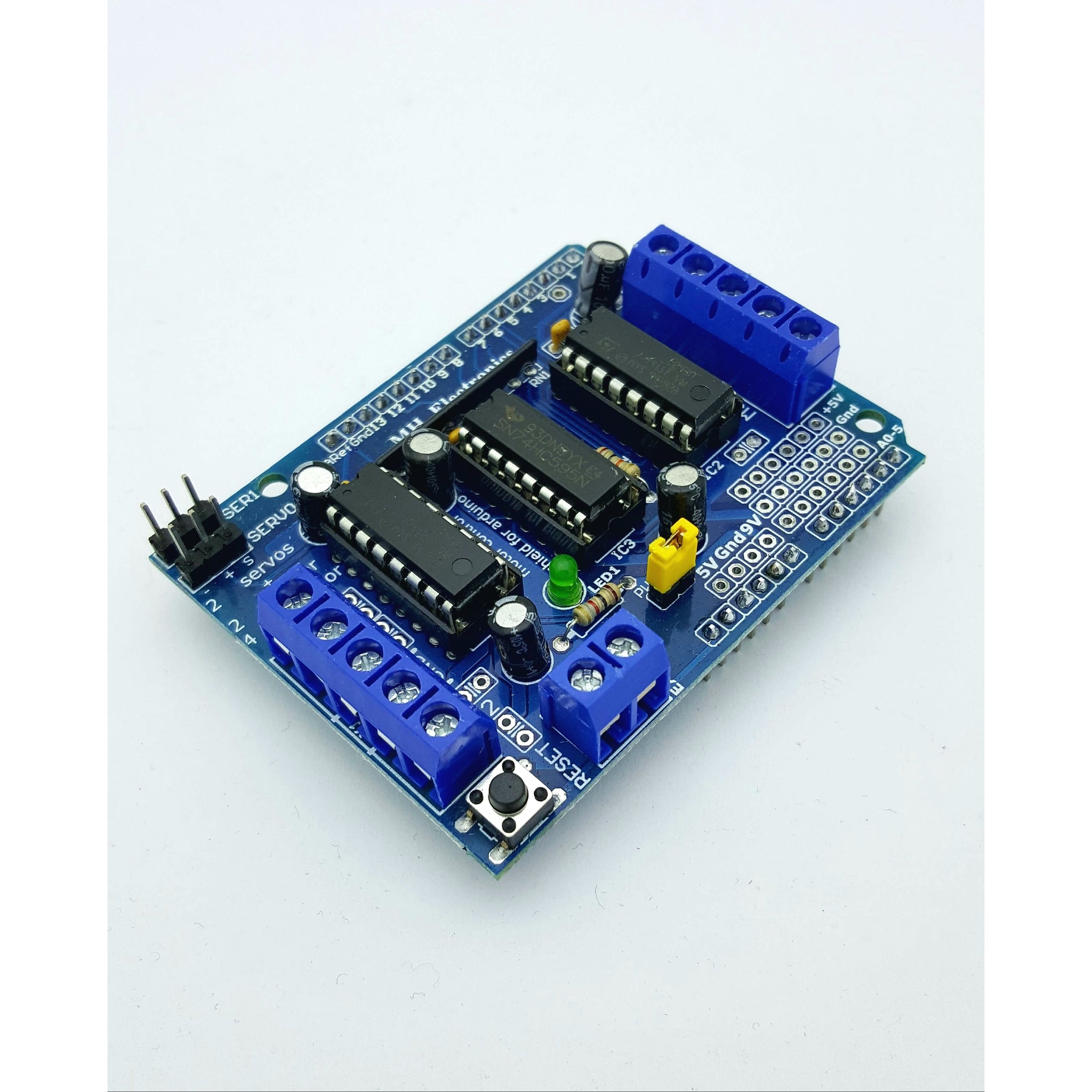

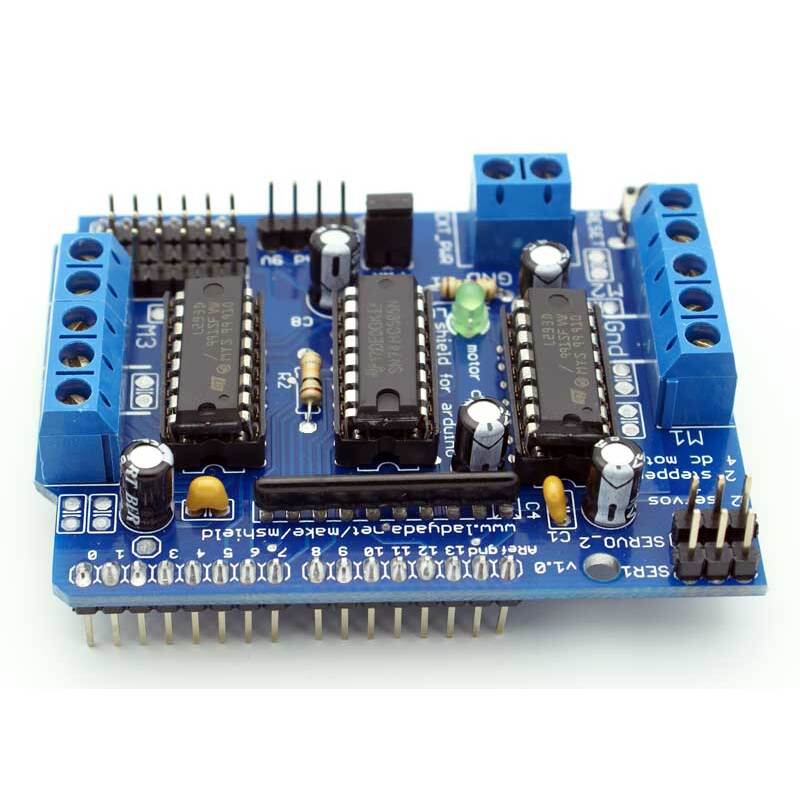

Arduino 3S Motor Driver Shield
The Arduino 3S Motor Driver Shield includes 4 H-Bridge drivers, allowing you to control up to 4 DC motors with independent control of speed and direction from your Arduino UNO, Diecimila, Duemilanove or Freeduino or compatible boards. Alternatively, it will drive two stepper motors, and the PWM capability makes microstepping a breeze!
This shield also provides two headers for connecting standard RC hobby servos!

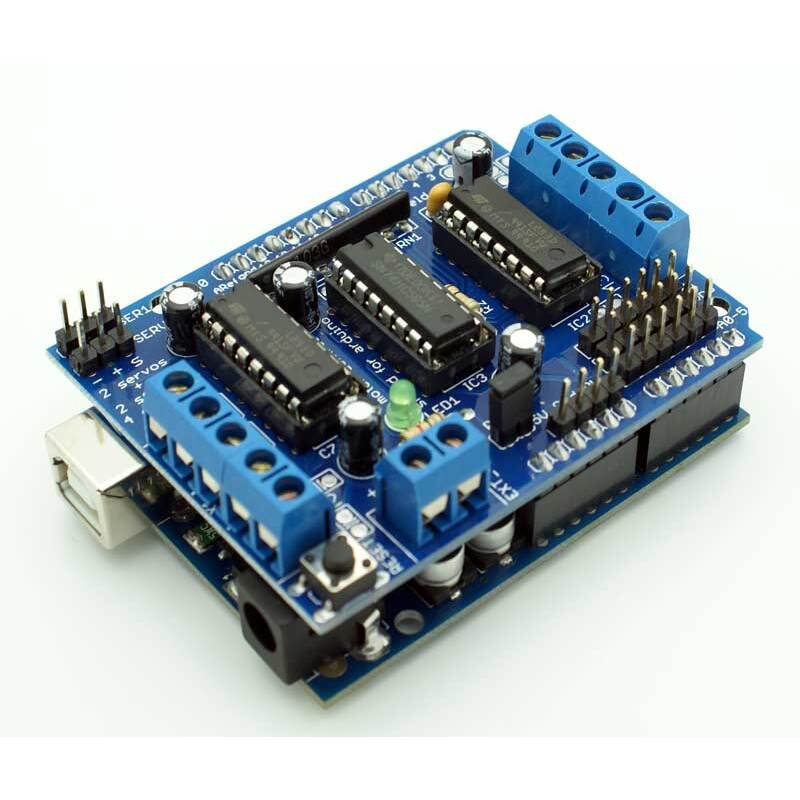

It is an easy to use module that simply plugs onto your Arduino's stacking headers. It is well documented with full schematics and libraries available.

Features:

  • 2 x L293D Motor Control Chips
  • Total of 4 H-Bridges for controlling 4 DC motors or 2 Stepper motors
  • External power connection via a screw-terminal block
  • Screw-Terminal blocks for connection to motors
  • 2 x Server ports for controlling RC Hobby Servos


The L293D Motor Driver IC can support a current of 600mA continuous per channel with a peak of 1.2A. Our clip-on NTE425 16-Pin DIP heatsinks are an excellent way to help keep these chips cool. (Two per package, only one package of NTE425 is required). It is possible to increase the current by piggybacking up to three extra L293D chips on top of the each other.

This item is just the Arduino 3S Motor Driver Shield. No additional shields, power supplies, cables, software or other accessories are included.

Vetco sells an ever increasing selection of Arduino shields and Arduino sensors.

This item may differ from image slightly depending on what is in stock (what we received from overseas manufacturers).

Functionally, the item will be the L293D board. We can not refund or change an item out for small differences. Some header pins are entirely OPTIONAL and may not be included, depening on the manufacturer of the board. And we can not specify if those header pins are included or not on every board. You can call us for specific item pictures if you wish.

QTY: 1 x Arduino 3S Motor Driver Shield
