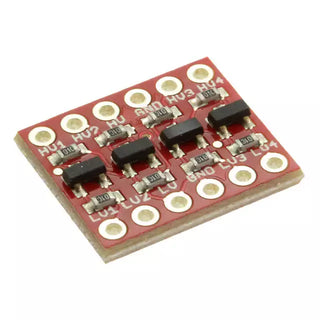

4-Channel Bi-Directional Logic Level Converter – 3.3V to 5V (BOB-12009)

Reliable Voltage Level Translation for Everyday Electronics

Easily connect 3.3V and 5V devices with this 4-channel logic level converter, designed to safely bridge the gap between different voltage systems. Whether you're working with Arduino, Raspberry Pi, or other development boards, this bi-directional logic level shifter makes mixed-voltage projects effortless and risk-free.

What is a Logic Level Converter?

A logic level converter (also called a voltage level translator) is an essential tool for anyone combining 3.3V and 5V parts. It protects sensors, microcontrollers, modules, and ICs from potential damage caused by direct high-voltage connections. With this 4-channel bi-directional logic level converter, you can send signals both ways—up from 3.3V to 5V, and down from 5V to 3.3V.

Key Features

• 4 Channels: Shift four separate signals on one board
• Bi-directional Operation: Converts signals both from high to low and low to high voltage
• Wide Compatibility: Works with I2C, SPI, UART, and GPIO signals
• Plug-and-Play: Simple PCB design makes setup quick and easy—no complicated wiring
• Safe for Sensitive Devices: Protects your 3.3V sensors and 5V microcontrollers
• Small Size: Perfect for breadboards and compact projects
• Model Number: BOB-12009

Technical Specifications

• Operating Voltage: 1.8V to 6V (low voltage), 2.8V to 10V (high voltage)
• Logic Signal Channels: 4 bi-directional channels
• Signal Types Supported: I2C, SPI, UART, general-purpose digital I/O
• Board Dimensions: ~13mm x 15mm
• Model: BOB-12009
• Included: 1 logic level converter module per package

Easy Integration with Arduino, Raspberry Pi & More

This 4-channel logic level converter is perfect for connecting Arduino 5V outputs to Raspberry Pi’s 3.3V logic, or any other mixed-voltage project. Both hobbyists and beginners will appreciate the simple setup—the labeled pins make installation and troubleshooting straightforward.

Why Use a 4-Channel Bi-Directional Level Shifter?

Without a logic level shifter, you risk damaging your microcontrollers and sensors. This module ensures safe, reliable communication between all your 3.3V and 5V devices, especially in I2C and SPI applications.

Order with Confidence from Vetco Electronics

Vetco Electronics offers the 4-channel bi-directional logic level converter (BOB-12009) for fast, secure integration into your next electronics project. Have a question? Our team is ready to help you choose the right logic level shifter for your setup.
