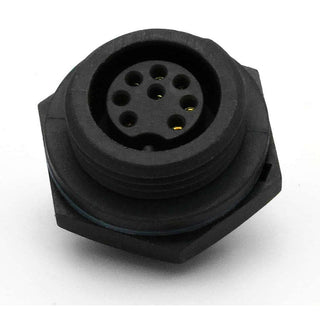

LARGE Series Waterproof Connector - 8 pin Female Panel Mount
8-Pin Female Panel Mount Waterproof Connector – Large SeriesReliable 8-Pin Waterproof Panel Mount Connector
Looking for a durable and easy-to-use 8-pin female panel mount waterproof connector? Our Large Series waterproof connector is designed for reliable, watertight connections in harsh environments. Ideal for marine, automotive, and industrial projects, this connector keeps your connections protected from water and dust without the mess of silicone sealants or electrical tape.
Easy Installation and Dependable Protection
This panel mount waterproof connector is simple to assemble with just a soldering iron and wire cutters—no specialty tools required. A secure locking system, internal compression gaskets, and robust o-ring seals combine to achieve an IP67 environmental rating, keeping your electrical connections dry and secure even in demanding conditions.
- Perfect for power or data: Use for low-voltage power transmission (up to 5A) or communications.
- Mess-free waterproofing: No additional sealing or chemicals needed for installation.
- Strong locking mechanism: Threaded ring provides positive locking and vibration resistance.
Technical Specifications
| Number of Pins: | 8 |
| Rated Current (40°C): | 5 Amps |
| Voltage Rating: | 50 Volts |
| Max Wire Gauge: | 22 AWG |
| Environmental Protection: | IP67 (Dust and temporary water immersion) |
| Mechanical Life: | 500 mating cycles |
| Operating Temperature: | -45°C to 105°C |
Dimensions: 24mm diameter x ~50mm long
Product ID: VUPN10507
Why Choose This 8-Pin Female Waterproof Connector?
- Rugged construction for long-lasting performance
- Compatible with marine, automotive, and industrial wiring projects
- Easy, tool-friendly field installation
- Trusted IP67 waterproof and dustproof protection
Upgrade your project with an 8-pin female panel mount waterproof connector designed for reliability and simplicity. One connector per pack.
