EC5 plugs are often found on RC battery packs in cars and aircraft. They are a polarized plug that securely mates to withstand vibration. This is a very reliable way to supply power to your brushless DC motor. The EC5 plug has 5mm bullet pins and can handle current up to 120A (60A per pin). The pins are intended to be soldered onto wire and then inserted into the connector housing.

• Rated Current: 120A
• Wire Size: 10AWG
• Approximate Dimensions: 1.31" Long x 0.75" Wide (when mated)

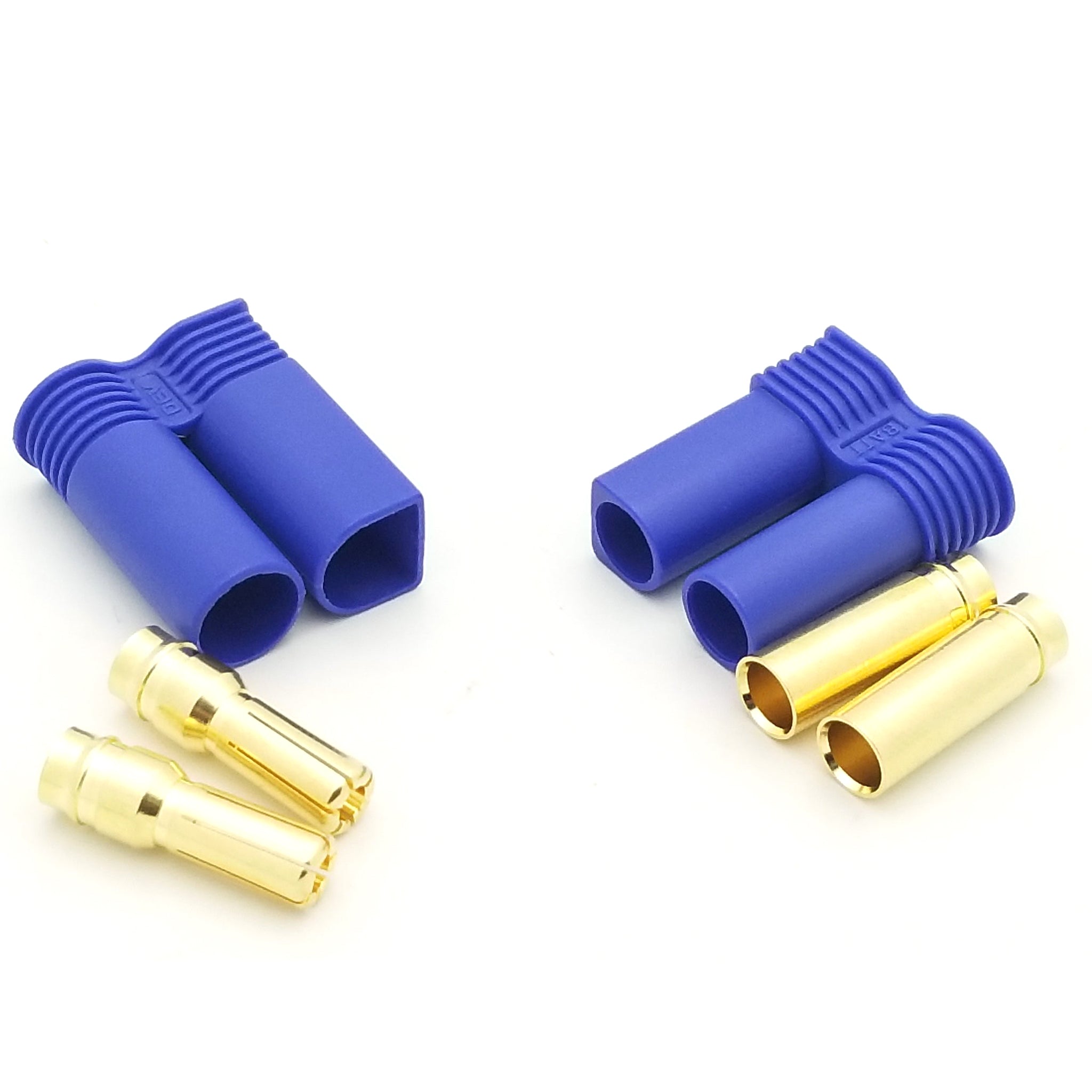

QTY: 1 Pair (1 Male, 1 Female) of EC5 Connectors, includes 2 male and 2 female pins.

OLD Part number: VETEC5
