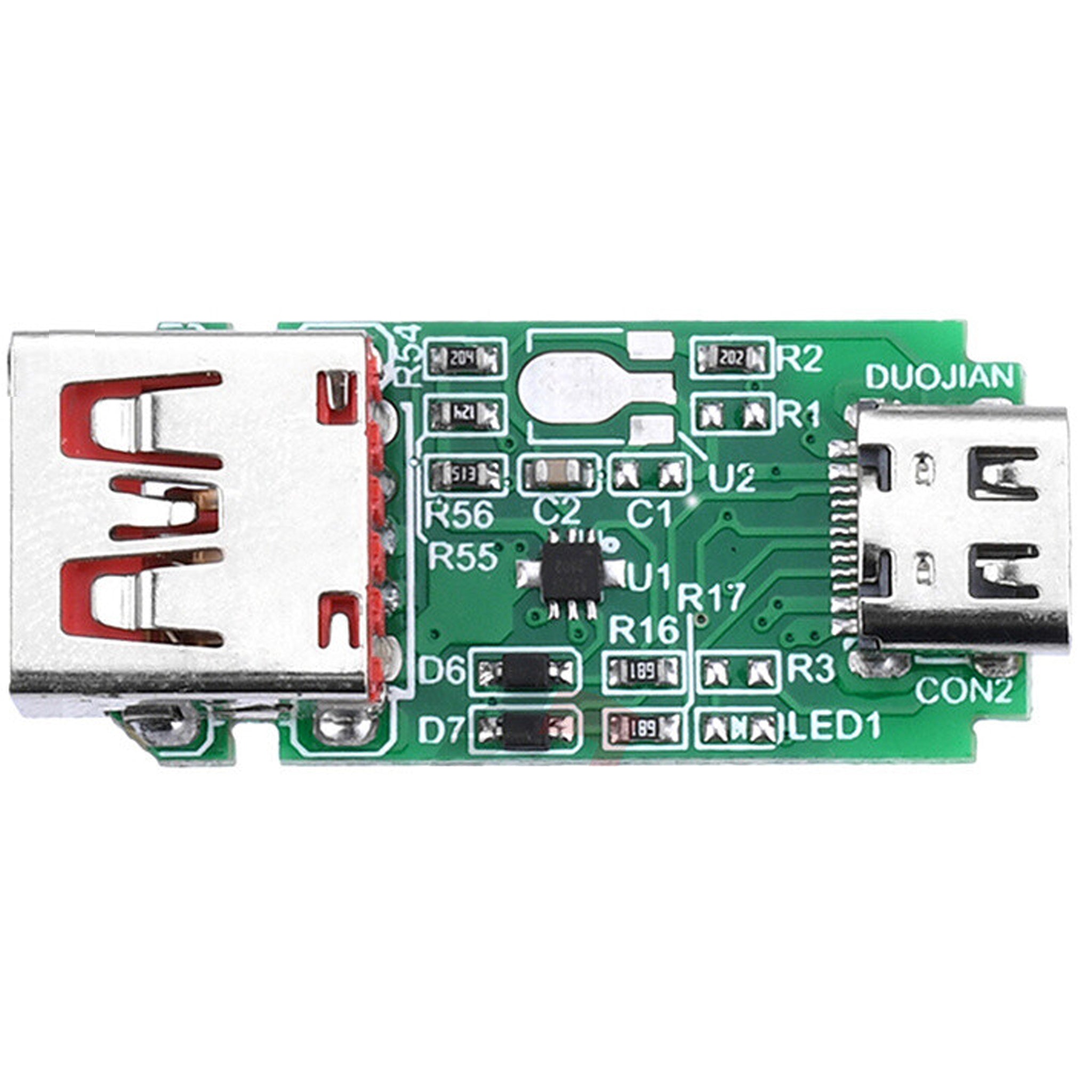

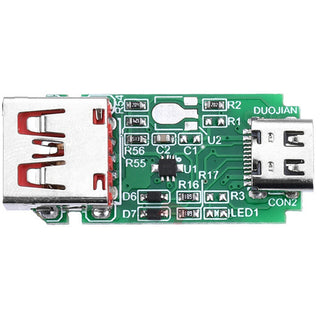

USB-C Female PD QC 3.0 Decoy Trigger Board - USB-A Female Output Voltage Selector
USB-C Female PD QC 3.0 Decoy Trigger Board - USB-A Female Output Voltage Selector
Easy USB-C Female Output Voltage Selection for Everyday Use
Take control of your USB Type-C power with this USB-C Female Output Voltage Selector Decoy Trigger Board. Ideal for hobbyists, DIYers, and everyday consumers, this simple USB-C PD trigger module makes it easy to select the voltage you need for your projects or devices -no complicated setup required.
Key Features and Benefits
- Multi-Protocol Support: Compatible with both USB Power Delivery (PD 3.0) and Quick Charge (QC 2.0/3.0) protocols for broad device compatibility.
- Select Your Output Voltage: Choose from 5V, 9V, 12V, 15V, or 20V output directly, using the easy DIP switch combination.
- High Power Capacity: Supports up to 100W (20V/5A max input) — perfect for powering devices of all sizes, from phones to laptops and testing equipment.
- Quality Construction: Built with high-quality materials, featuring double-sided tin reinforcement and countersunk feet for added stability and reliability, even at high currents.
- Color: Usually supplied in red, but may arrive in a different random color.
How to Use the USB-C PD Trigger Board

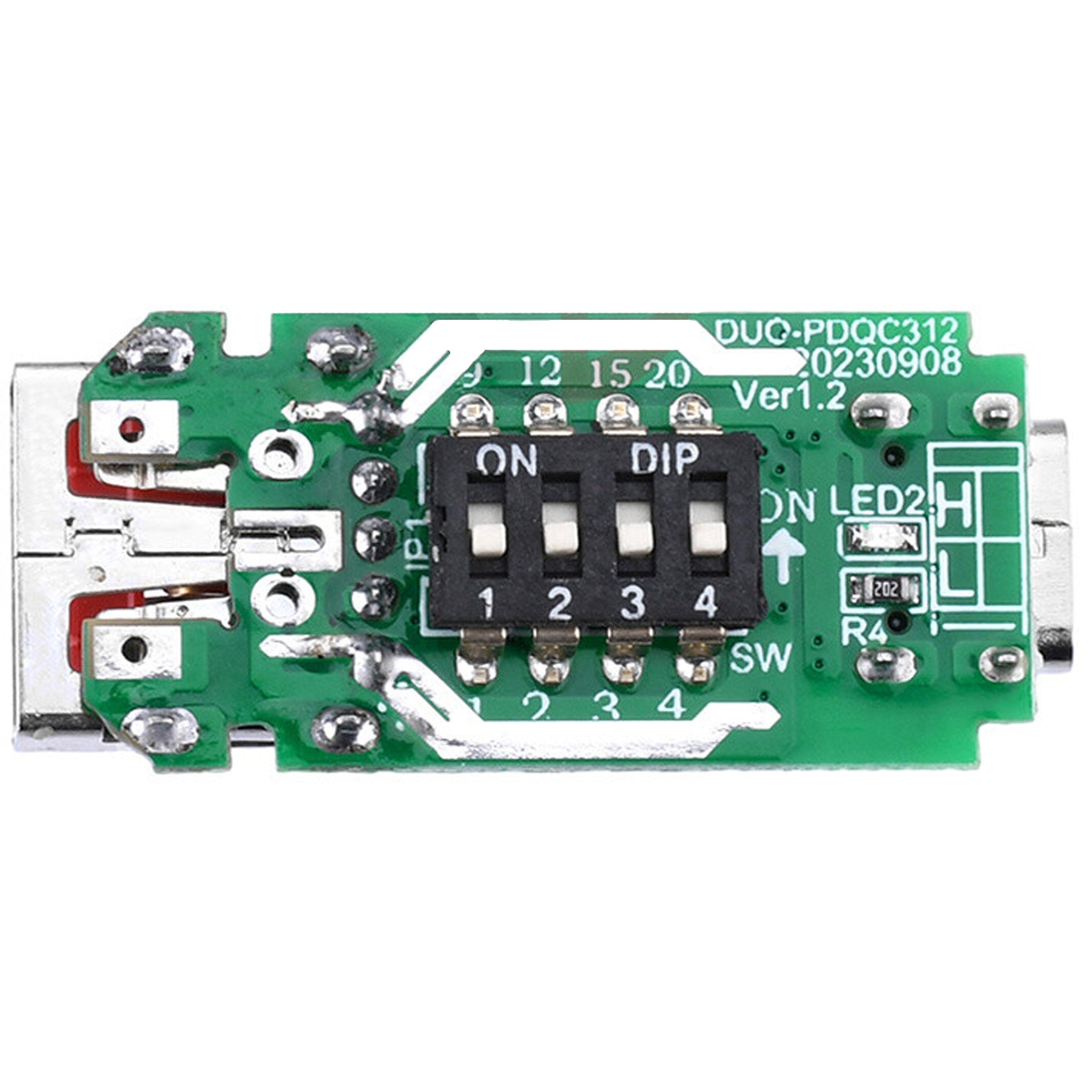

There are two versions of this board. One with 3 DIP switches and one with 4 DIP switches.
For the version with 3 switches; Set the DIP switches to easily select your desired output voltage:
- Switch 1 ON, all others OFF: 20V Output
- Switch 2 ON, all others OFF: 12V Output
- Switch 3 ON, all others OFF: 5V Output
- Switch 1 & 2 ON, 3 OFF: 15V Output
- All switches OFF: 9V Output
For the version with 4 switches; Set the DIP switches to easily select your desired output voltage:
- Switch 1 ON only = 9V
- Switch 2 ON only = 12V
- Switch 3 ON only = 15V
- Switch 4 ON only = 20V
- All switches OFF = 5V default USB-C output
WARNING: Never assume that you've set the switches correctly without checking the output with a mulitmeter prior to hooking a device up to the trigger board's output. By using this board, you are bypassing the built in safeties in the USB-C Design. You can potentially damage your device if you do not ensure the voltages are set correctly.
No software, programming, or special tools needed — just plug it in and select your voltage!
Technical Specifications
- Input Voltage: Up to 20V DC
- Max Current: 5A
- Power Rating: Up to 100W (depends on your USB-C power source)
- Supported Protocols: USB PD 3.0, QC 2.0, QC 3.0
- Selectable Output Voltages: 5V, 9V, 12V, 15V, 20V
- Materials: Double-sided tin, high-quality PCB
- Product ID: VUPN2121
- Ports: USB-C Female, USB-A Female
Why Choose This USB-C Voltage Trigger Module?
Power your devices safely and reliably with this USB-C PD decoy board. Great for powering and testing electronics, charging devices at specific voltages, or prototyping DIY projects requiring adjustable output. Make voltage selection quick, safe, and easy!
