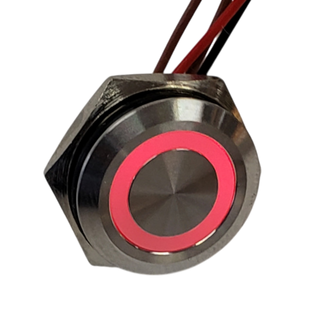

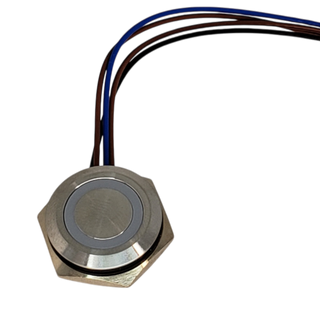

Ultra Thin 16mm Red Momentary Push Button with LED

This ultra-thin 16mm red momentary push button with LED is a compact control for DIY electronics, project boxes, custom panels, automotive accessories, test fixtures, and repair work. Its red illuminated ring makes the button easy to identify, while the metal body gives a polished look to finished projects.

This is a normally open momentary switch. It makes contact only while the button is pressed, then releases when you let go. It is useful for reset buttons, triggers, start controls, signal inputs, and other low-current switching applications.

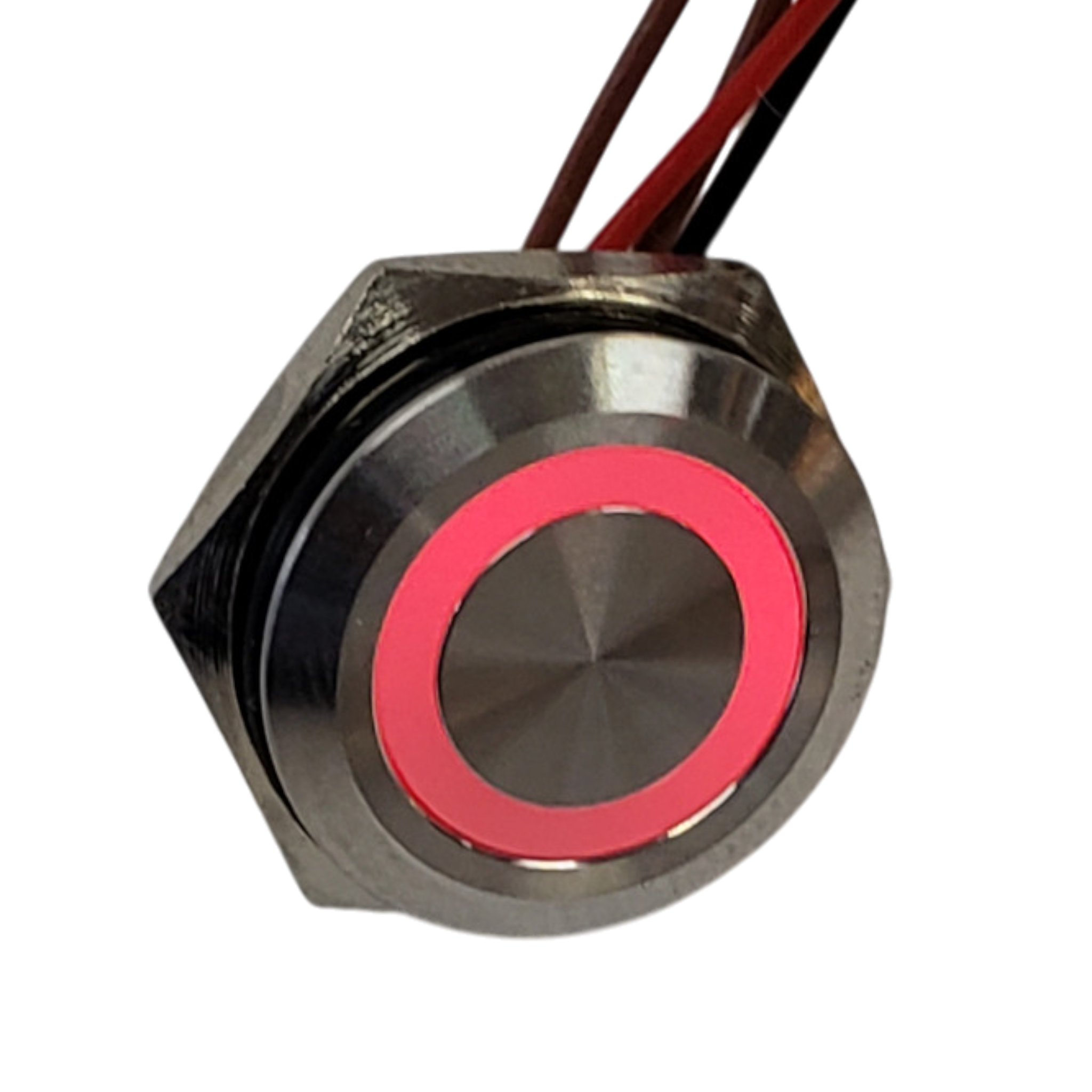

Compact Red Illuminated Push Button

The 16mm mounting size is a good fit for smaller panels and enclosures. The red LED ring provides a clear visual indicator while helping the control stand out on your project.

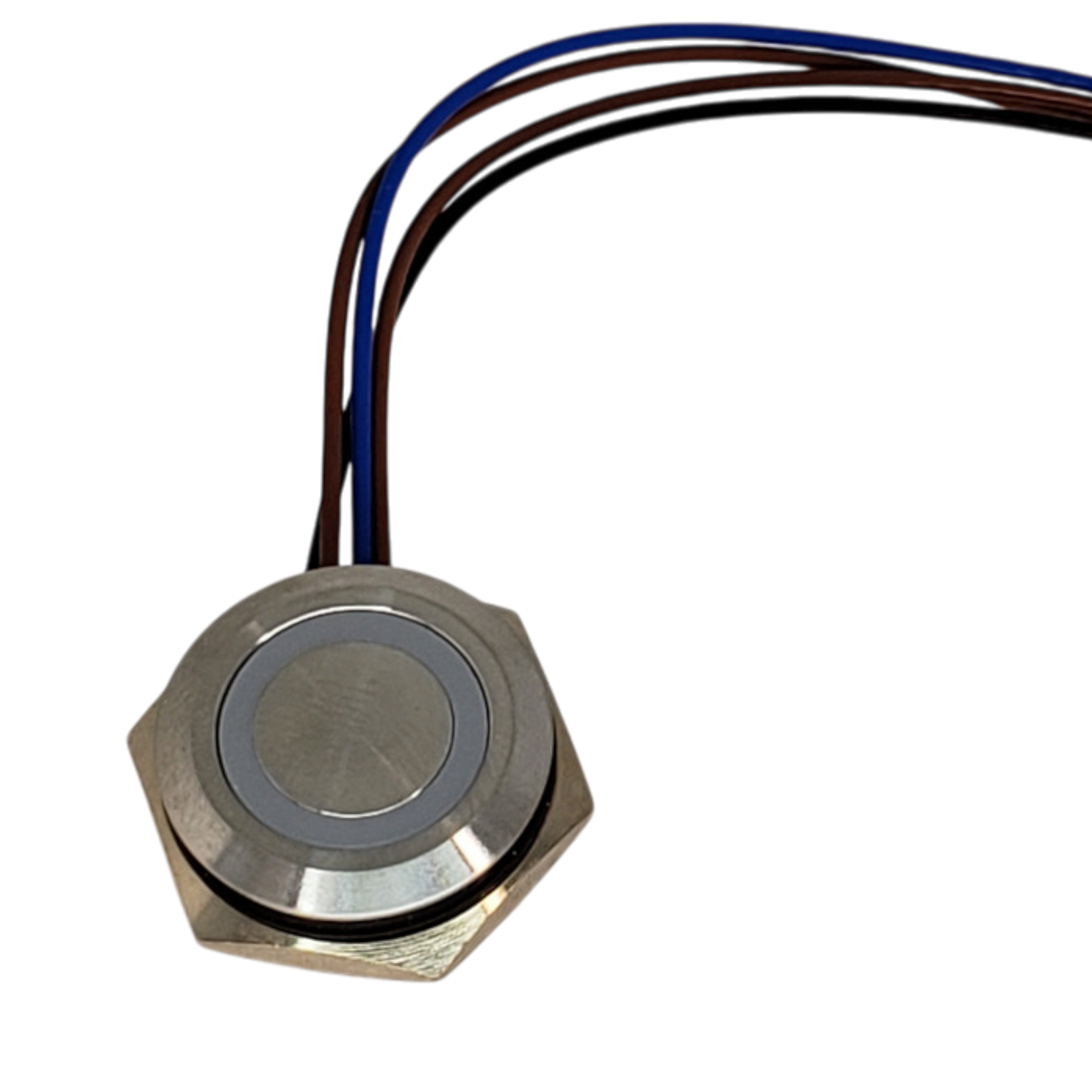

Wire Harness Included for Easy Installation

This version includes a wire harness for easier installation and cleaner wiring inside a project box, control panel, vehicle, or custom enclosure. The pre-wired connection helps simplify setup compared with individual loose terminals.

Ultra-Thin 16mm Panel-Mount Switch

The switch installs through a 16mm panel hole and uses an M16 x 1.0 threaded bushing with a mounting nut. Its slim front profile and bright red LED ring help create a clean, organized control panel.

Built for Low-Voltage Controls

The red LED ring operates from 12V to 24V DC. The switch head is rated IP67 and IK08, making it a useful choice for projects that need better protection against dust, water exposure, and everyday handling.

Technical Specifications

Why Choose This 16mm Red Momentary Push Button?

This compact red LED push button is a simple way to add an illuminated control to a small panel or enclosure. It combines a clear visual indicator, momentary operation, and a neat metal panel-mount design.
