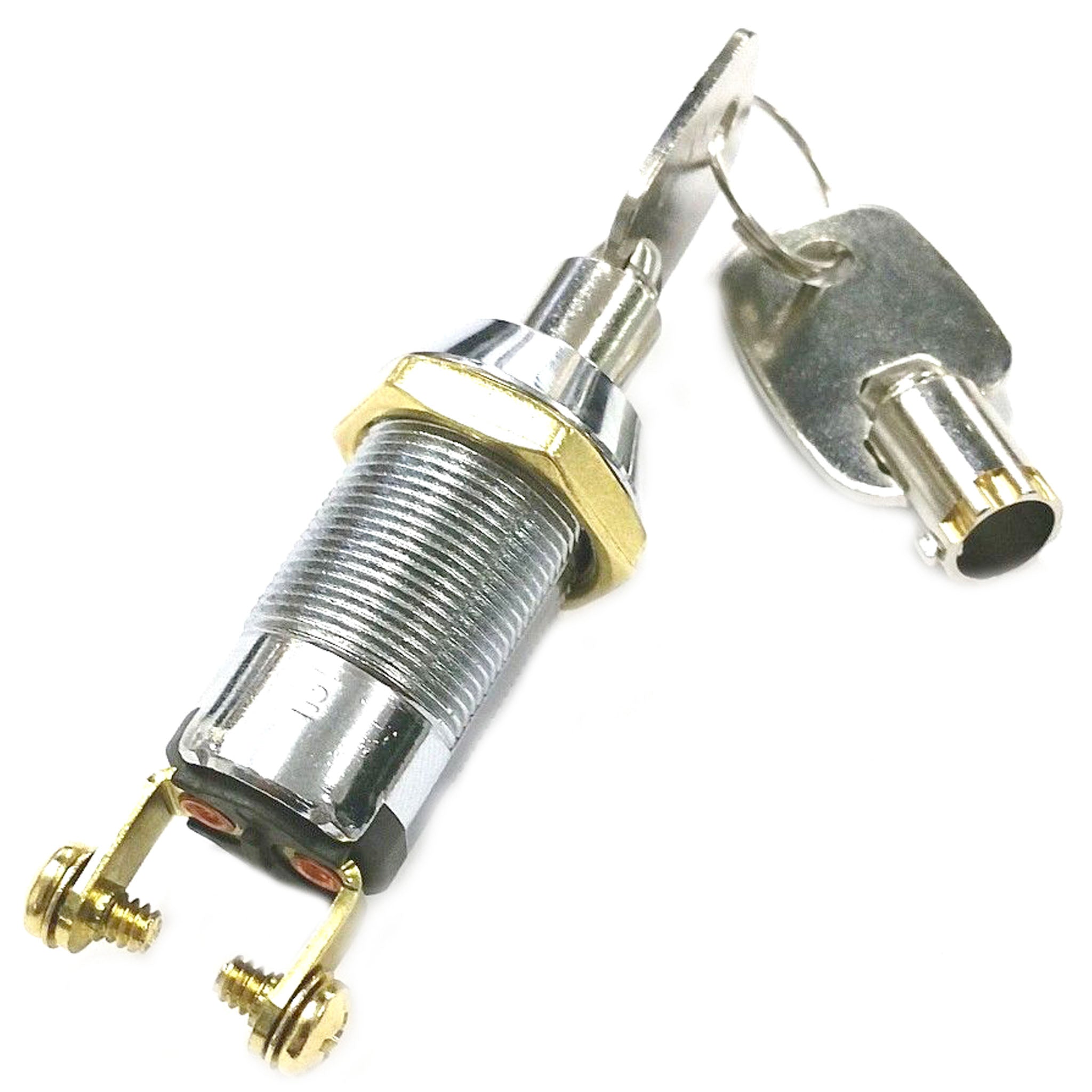

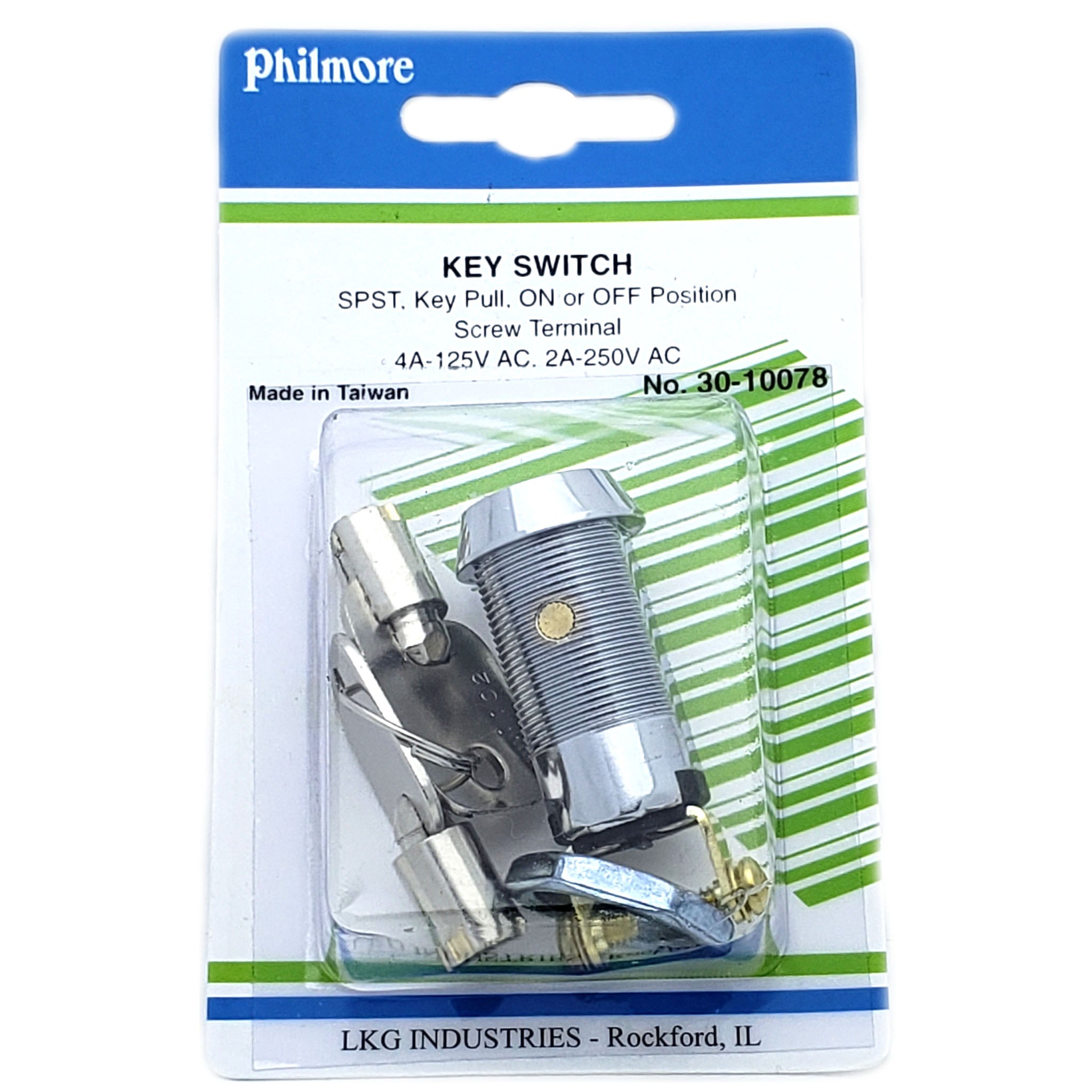

SPST Keyed Switch (ON - OFF) With Two 1102 Tubular Keys
Keyed On/Off SPST Lock Switch
Easy On/Off Control with a Key
This keyed on/off lock switch gives you simple, secure control over your power or circuit. Turn the key to switch your device on or off, then remove the key to prevent someone from flipping it by accident. It’s a great choice for hobby projects, access panels, DIY equipment, and anywhere you want a basic security layer instead of a plain toggle switch.
Everyday Uses
Use this key switch to:
- Lock out small machines, tools, or lights so only you can turn them on
- Add a “parent-only” power control on hobby projects or game setups
- Prevent accidental shutdowns on benches, displays, or demo units
- Add a simple security control to panels, cabinets, and enclosures
Simple to Install
The switch is designed for easy panel mounting. The barrel fits a standard round cutout, and the body includes a nut for securing it in place. Screw terminals on the back make wiring straightforward – no special crimp connectors required.
Keyed Alike Convenience
This lock switch comes with two matching keys, and all switches of this style use the same key pattern of 1102. That means if you use more than one of these switches on a project or in a small shop, a single key can operate them all. The key can be removed in either the ON or OFF position, so you can lock your circuit in the state you prefer.
Electrical Ratings
This SPST (single-pole, single-throw) key switch is built for typical AC loads found in small tools, lights, and control circuits. Always make sure your application stays within the ratings below.
- Switch type: SPST (On/Off)
- Key positions: ON or OFF (key removable in both positions)
- Current rating: 4A at 125VAC; 2A at 250VAC
- Dielectric strength: 1500VAC for 1 minute
- Initial contact resistance: 10 mΩ max
- Insulation resistance: 100 MΩ min at 500VDC
Mechanical Details
- Actuator: barrel-style key (all keyed alike with 1102 keying)
- Mounting: panel mount with round hole (approx. 19 mm mounting hole)
- Barrel size: 5/8" barrel, approximately 2-1/8" long (overall)
- Terminals: screw type for easy wiring
- Contact material: silver-plated brass
- Terminal material: silver-plated brass
