Quick Splice Wire Tap - 18-14 AWG - 4 Pack
Quick Splice Wire Tap - 18-14 AWG - 4 Pack

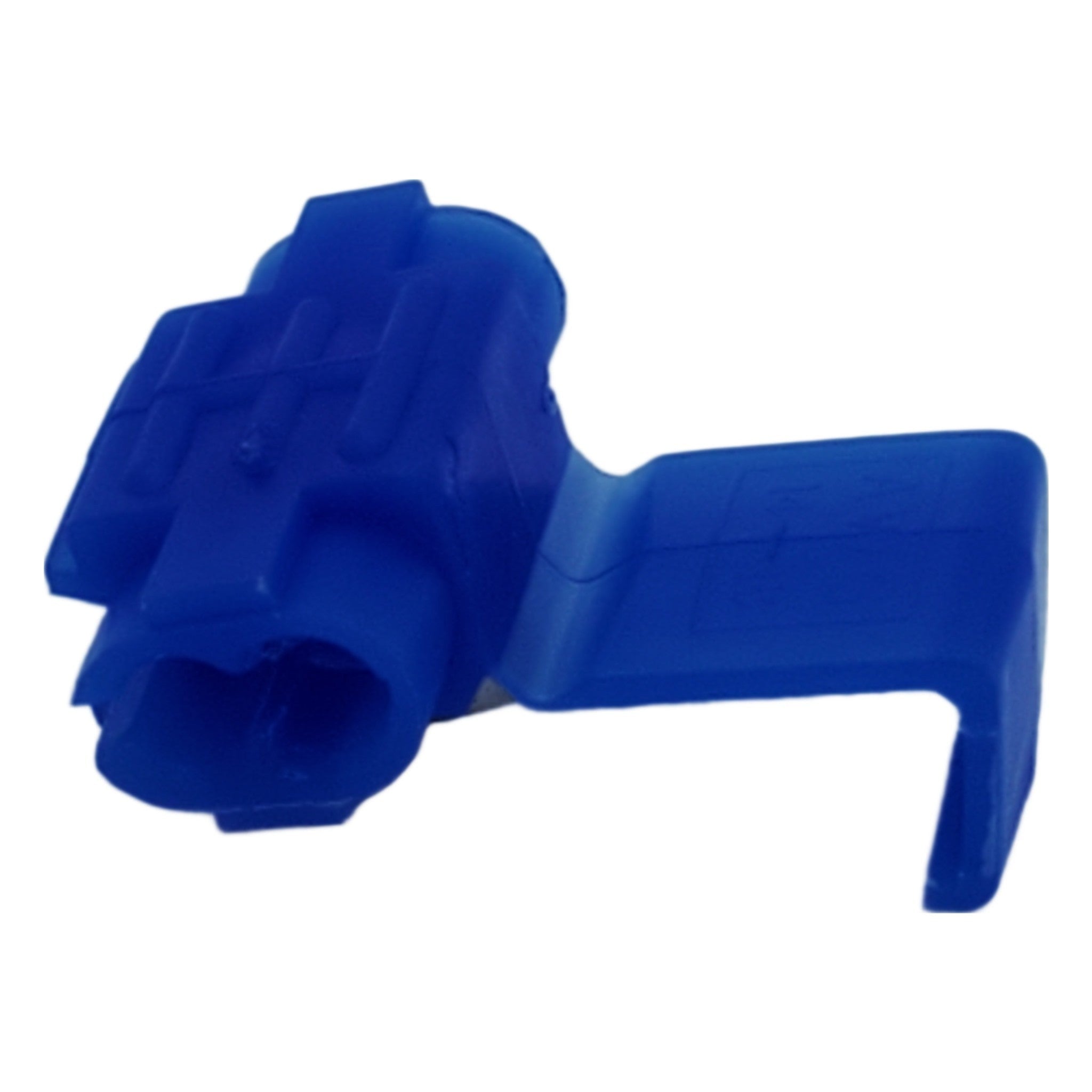

Quick Splice Wire Connectors for Fast Electrical Repairs
Add a branch wire to an existing circuit without cutting, stripping, or soldering. These blue quick splice wire connectors use a self-stripping insulation displacement contact to make a secure connection with 18-14 AWG wire.
Simply insert the existing run wire and new tap wire, clamp the metal contact closed with pliers, and snap the insulated cover shut. The result is a secure, vibration-resistant splice for automotive wiring, trailer lights, marine projects, low-voltage home wiring, and everyday DIY electrical repairs.
Self-Stripping 18-14 AWG Wire Tap Connectors
These self-stripping wire tap connectors eliminate several wire preparation steps. The internal IDC contact cuts through the wire insulation as it is pressed into place, creating a solderless electrical connection without manually exposing the conductor.
The blue vinyl-insulated body identifies this version for larger 18-14 AWG wire, approximately 0.82-2.08 mm2 (0.0013-0.0032 in2). Each connector is designed for one-time installation.
Quick Splice Wire Tap Installation
- Place the existing run wire into the open channel without cutting it.
- Insert the new tap wire into the second channel.
- Use pliers to press the metal IDC contact fully into the wires.
- Snap the blue insulated cover closed over the connection.
No soldering iron or traditional wire stripper is required. These solderless wire tap connectors are a convenient choice for adding lights, accessories, and other branch circuits.
Automotive and Low-Voltage Wire Connector Applications
Designed for 12-32V DC systems, these automotive wire splice connectors are useful for vehicle accessories, trailer lighting, marine wiring, low-voltage home projects, and general electrical repair. The connectors are electrically rated for up to 600V and a maximum temperature of 105°C (221°F).

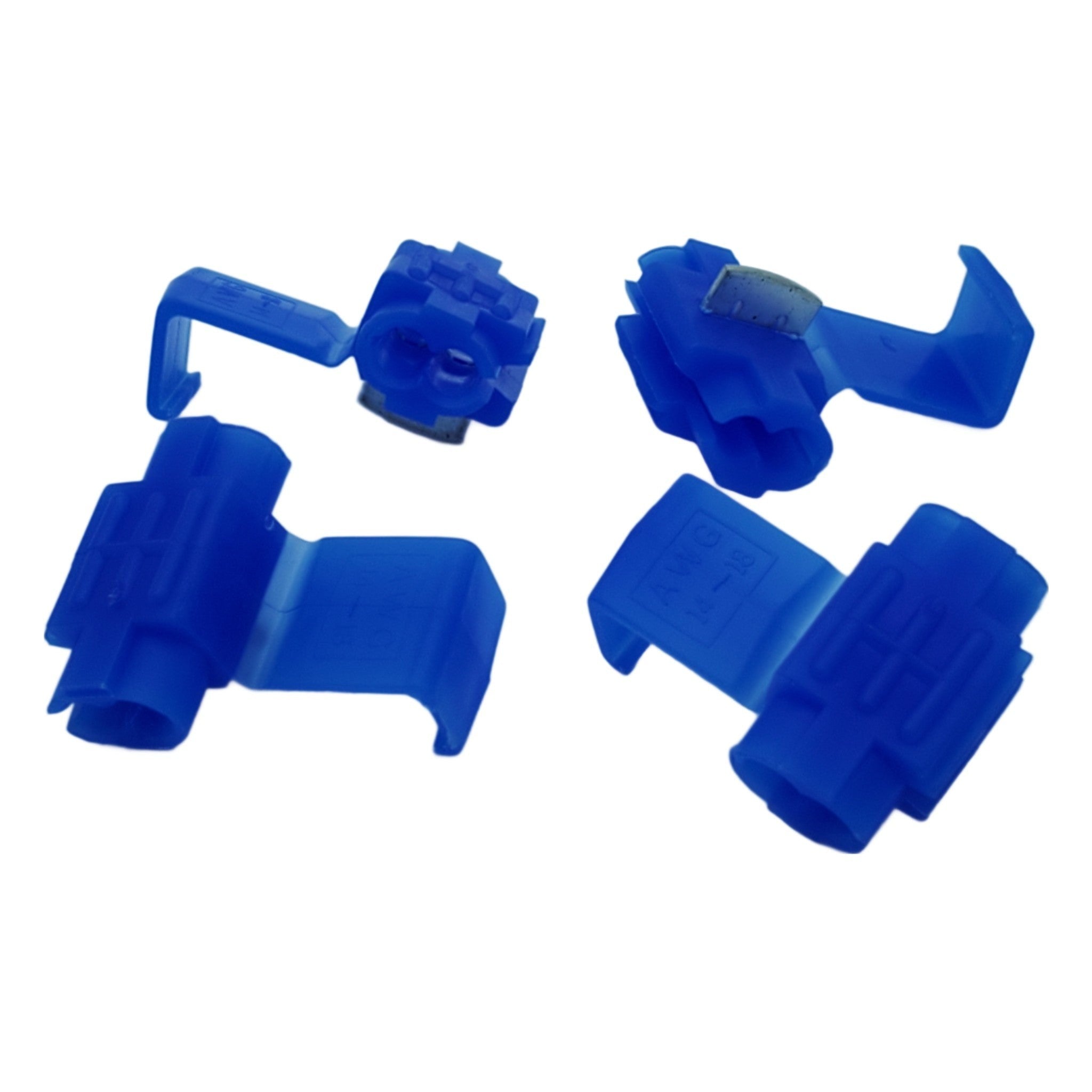

This package includes four blue connectors. Other wire gauge options in the same connector family include red 22-18 AWG and 16-14 AWG versions.
Quick Splice Wire Connector Specifications
| Specification | Details |
|---|---|
| Product Type | Quick splice wire tap connector |
| Connector Type | IDC insulation displacement connector |
| Installation Type | Self-stripping and solderless |
| Compatible Wire Size | 18-14 AWG |
| Approximate Conductor Area | 0.82-2.08 mm2 (0.0013-0.0032 in2) |
| Color | Blue |
| Body Material | Vinyl-insulated |
| Application Range | 12-32V DC systems |
| Voltage Rating | Up to 600V |
| Maximum Temperature | 105°C (221°F) |
| Usage | Single-use |
| Installation Tool | Pliers |
| Package Quantity | 4 connectors |
| Part Number | SSS-2FP |
| SKU | SR-SSS-2FP |
| Approximate Retail Price | $2.49 per 4-pack |
