Protective Function Analog Multimeter

Easy-to-Use Analog Multimeter for Home, Education, and DIY

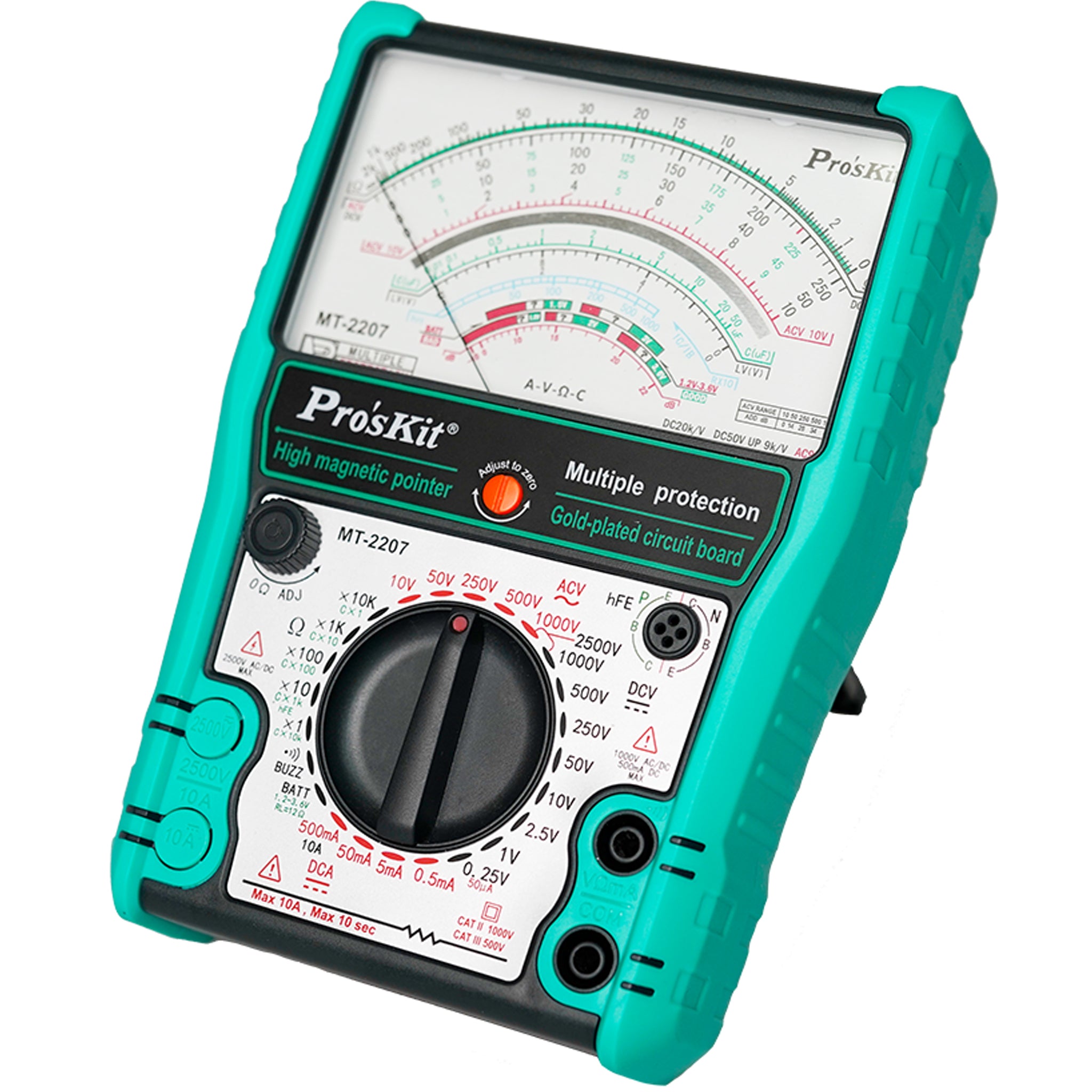

The Pro’sKit MT-2207 analog multimeter is a practical, easy-to-read testing tool designed for everyday electrical and electronics work. Its classic analog display makes it simple to see changes and trends in voltage or current at a glance, which is especially useful when checking batteries, power supplies, and basic AC or DC circuits. This analog multimeter is well suited for home users, students, beginners, and anyone who prefers the fast, natural response of an analog meter.

Multi-Functional Analog Multimeter with Accurate Measurement

This multi-functional analog multimeter combines several essential measurement functions into one compact tool. It supports AC voltage, DC voltage, and DC current measurements, along with resistance testing for troubleshooting wiring, components, and simple circuits. Additional functions include diode and LED testing, battery checks, capacitance measurement for approximate values, and transistor hFE testing, making it a versatile choice for basic electronics learning and repair.

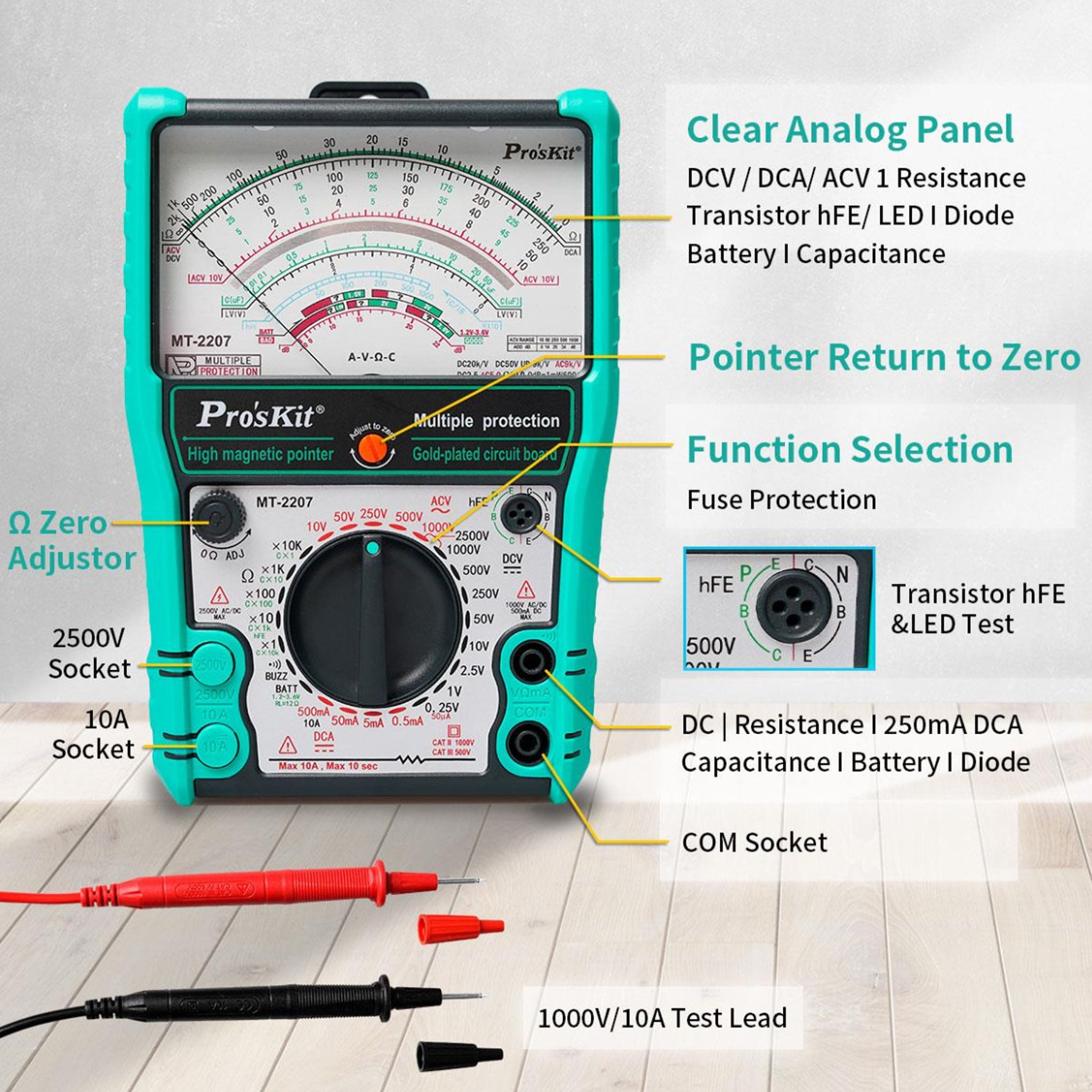

Clear Analog Display with Quick Pointer Response

The large, high-contrast analog scale is designed for quick and accurate readings without the delay sometimes seen on digital displays. A high-magnetic pointer provides smooth movement and stable readings, making it easier to observe real-time changes. A built-in zero adjustment control allows you to recalibrate resistance measurements before testing for improved accuracy.

Continuity Testing with Audible Buzzer

An integrated continuity test with an audible buzzer helps quickly identify complete circuits, good connections, and intact fuses. The sound alert allows you to focus on your work without constantly watching the display, speeding up common troubleshooting tasks.

Triple Protection Design for Safer Everyday Use

This analog multimeter features a triple protection design intended to help protect both the user and the meter during normal operation. It uses separate 0.5A and 10A fuses rated at 250V for current protection. The internal layout separates the PCB and battery compartment for added safety, and a gold-plated circuit board improves conductivity while helping resist oxidation over time.

Durable Rubber Case with Stand and Magnet

A robust rubber protective case helps shield the meter from drops and daily wear while providing a secure, non-slip grip. The fold-out rear stand supports hands-free bench use, and the built-in strong magnet and hanger hole make it easy to mount the meter on metal surfaces or hang it nearby while working.

High-Rated Test Leads Included

The included test leads are rated for up to 1000V and 10A, supporting a wide range of common measurement tasks. Clearly labeled input jacks help ensure correct and safe lead placement for each function.

Common Applications

This protective function analog multimeter is suitable for electronics maintenance, general electrical testing, classroom instruction, laboratory environments, and home projects. Its straightforward operation and visual feedback make it especially useful for beginners learning how electrical measurements behave in real time.

Key Features and Functions

• Analog multimeter with clear, easy-to-read scale
• Measures AC voltage, DC voltage, and DC current
• Resistance measurement with zero adjustment control
• Capacitance measurement for approximate values
• Diode and LED test function
• Transistor hFE test
• Battery check function from 1.2V to 3.6V
• Continuity test with audible buzzer
• Decibel (dB) measurement
• Triple protection design with fuse protection
• Gold-plated PCB for improved durability
• Durable rubber protective case with anti-slip design
• Foldable stand, strong magnet, and hanger hole
• 1000V / 10A rated test leads included

Technical Specifications

• DC Voltage (DCV): 0.25V, 1V, 2.5V, 10V, 50V, 250V, 500V ±3% FSD; 1000V (2500V) ±4% FSD
• AC Voltage (ACV): 10V, 50V, 250V, 500V ±4% FSD; 1000V (2500V) ±5% FSD
• DC Current (DCA): 50 µA, 0.5 mA, 50 mA, 500 mA ±3% FSD; 10A ±4% FSD
• Resistance: X1 (0.2 to 2 kΩ), X10 (2 to 20 kΩ), X100 (20 to 200 kΩ), X1K (200 kΩ to 2 MΩ), X10K (2 to 20 MΩ)
• Continuity: Audible buzzer, less than 50 Ω
• Fuses: 0.5A 250V and 10A 250V, 5 x 20 mm
• Power Source: 2 x 1.5V AAA batteries (not included)
• Weight: Approx. 400 g (1.3 lbs)
• Dimensions: 179 x 118 x 50 mm (6.5 x 5 x 2.5 in)

Brand: Pro’sKit

SKU: ECL-MT-2207
