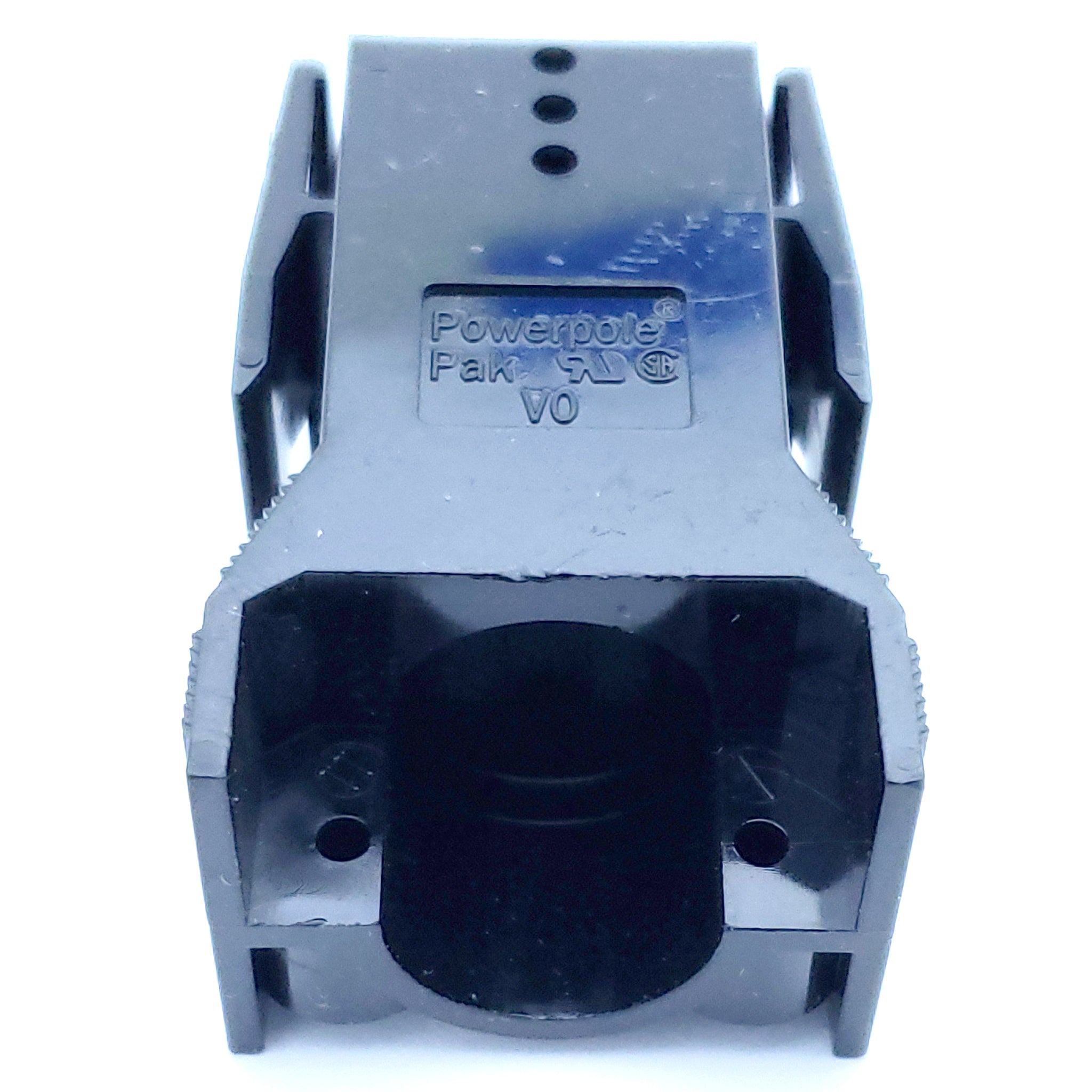

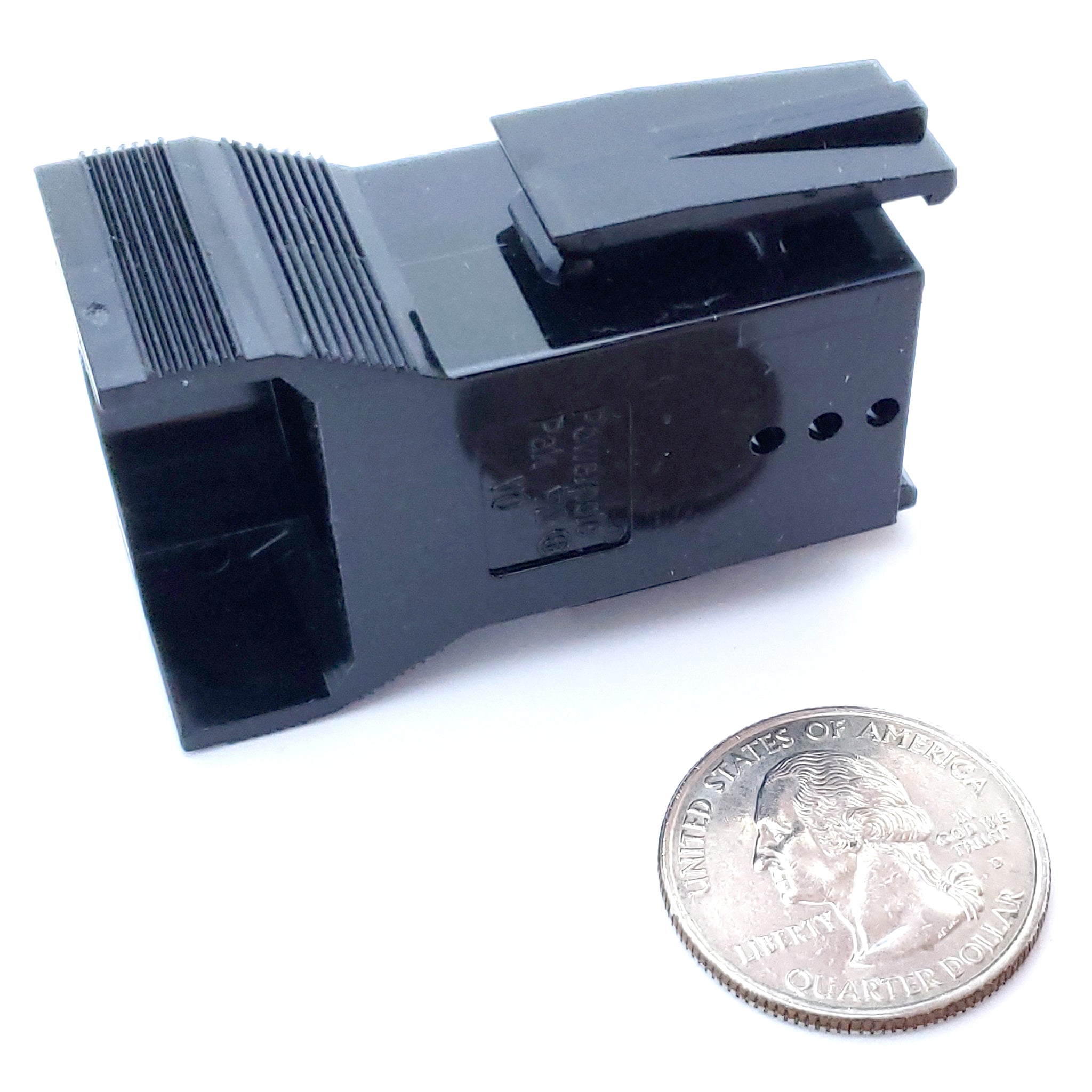

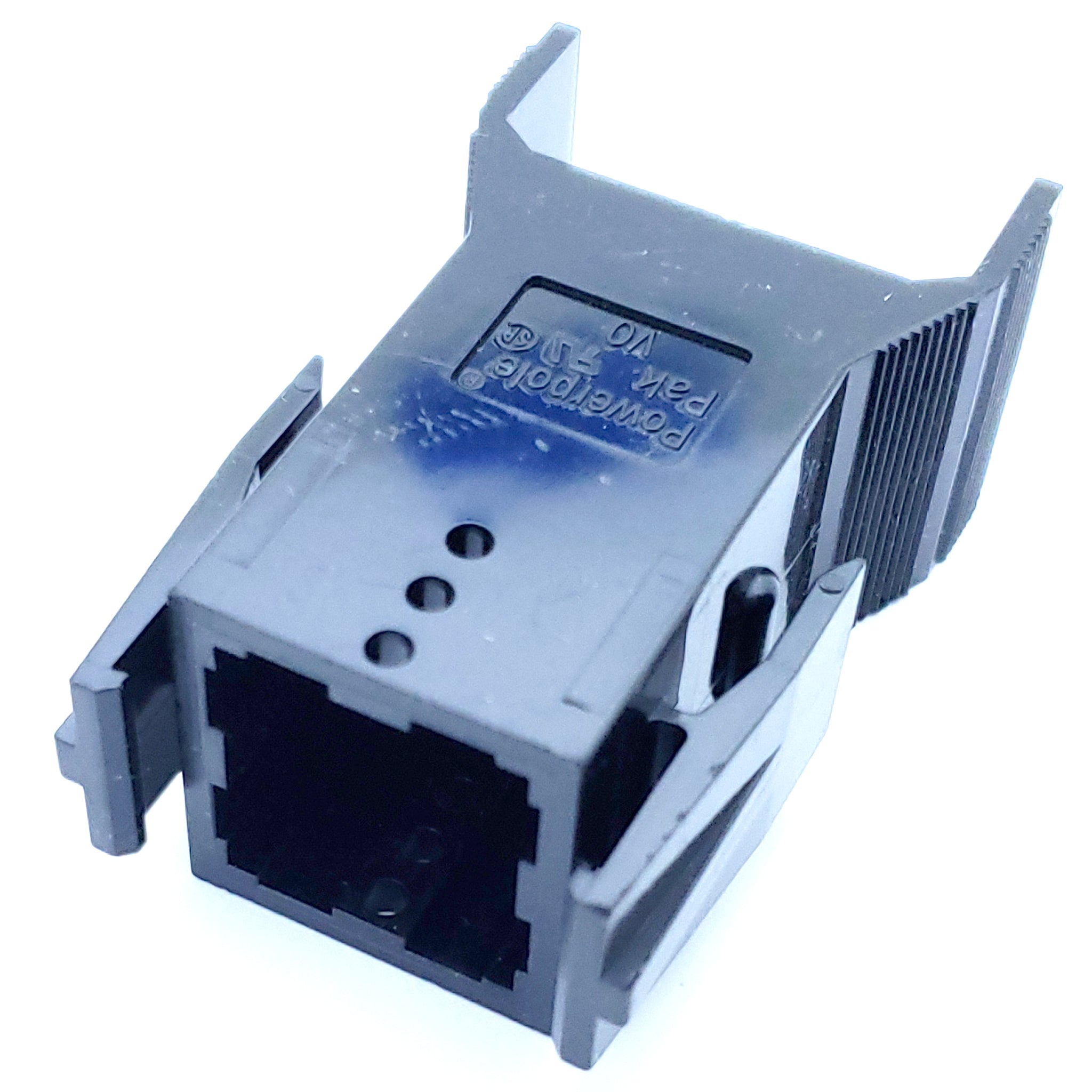

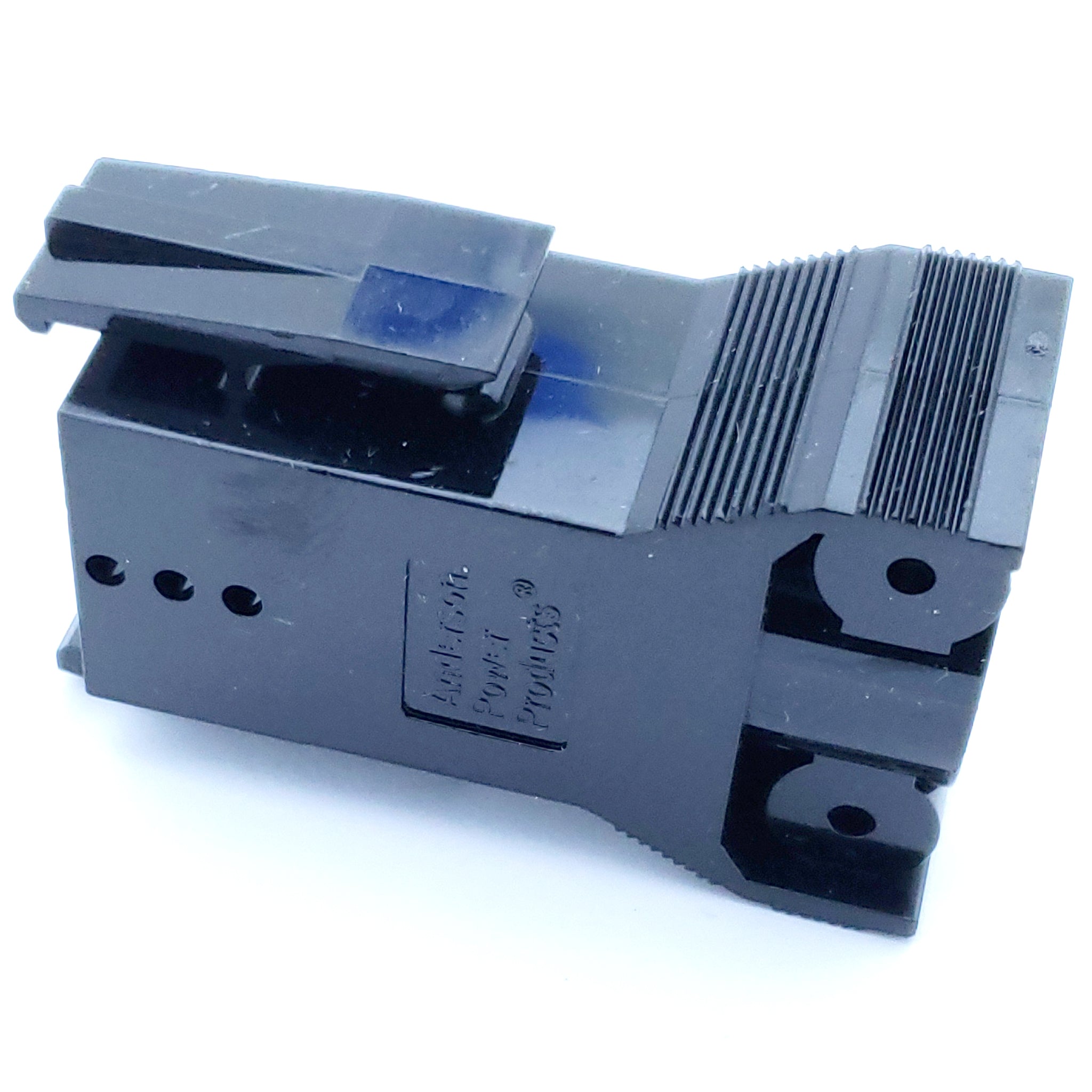

Inline Plug for 30A Powerpole Connectors
- Unit price
- / per
Panel Mount Plug Shell for 30A Powerpole ConnectorsEasy Panel Mounting for Powerpole Connector Systems
Upgrade your power connections with this panel mount plug shell specifically designed for 30A Powerpole connectors. Perfect for clean and secure panel installations, this shell ensures a professional, low-profile fit on ham radios, emergency communication gear, mobile equipment, and solar power systems.
Reliable, Durable, and Safe
Built from high-impact polycarbonate housing (UL94 V‑2 flame rating), this Powerpole connector housing offers outstanding durability and heat resistance. Its genderless design and color-coded modules (available in red, black, white, green, and more) provide convenient circuit identification and hassle-free mating—even in tight or dark spaces.
Consistent Power for Everyday Consumers
Depend on 30 amp Powerpole panel mount technology that supports up to 30A continuous current (45A peak) and voltages up to 600 V DC/AC (connector rated). Stainless-steel spring mechanisms keep your connections secure and vibration-resistant, making this shell perfect for both stationary and mobile setups.
Key Features & Benefits
- Ultra-low resistance & heat control – Silver-plated copper contacts and stainless springs deliver reliable, cool operation even at maximum load.
- Blind-mate ease – Genderless, modular connectors make it nearly impossible to connect wrong—great for fast hookups in tricky installs.
- Vibration resistant – Spring-loaded contacts hold tight and self-wipe, ensuring a solid connection on the go.
- Modular expandability – Multiple shells can be stacked for custom, multi-pole panel assemblies.
Technical Specifications
Specification | Detail |
---|---|
Current Rating | 30 A continuous, 45A peak |
Voltage Rating | Up to 600 V DC/AC (Powerpole connector rated) |
Wire Gauge Supported | 10–16 AWG (1.3–5 mm²) |
Contact Material | Silver-plated copper, stainless-steel springs |
Housing Material | Polycarbonate, UL94 V‑2 flame rating |
Insert Cycles | ~100,000 no-load; 250 hot-plug |
Temperature Range | –20 °C to +105 °C |
Mounting Hole | 1‑1/8″ diameter panel cutout (rear threaded nut not included) |
Module Colors | Red, black, white, green (and more) for polarity/circuit coding |
Sold As | Single shell (crimp/solder pin not included, ships separately) |
Upgrade Your Power Connections with Vetco Electronics
Shop Vetco for the best panel mount Powerpole shell solutions. Our Powerpole panel mount plug offers the performance, safety, and simplicity you need for everyday and emergency power applications. Questions about compatibility or installation? Our expert support team is ready to help you every step of the way!
