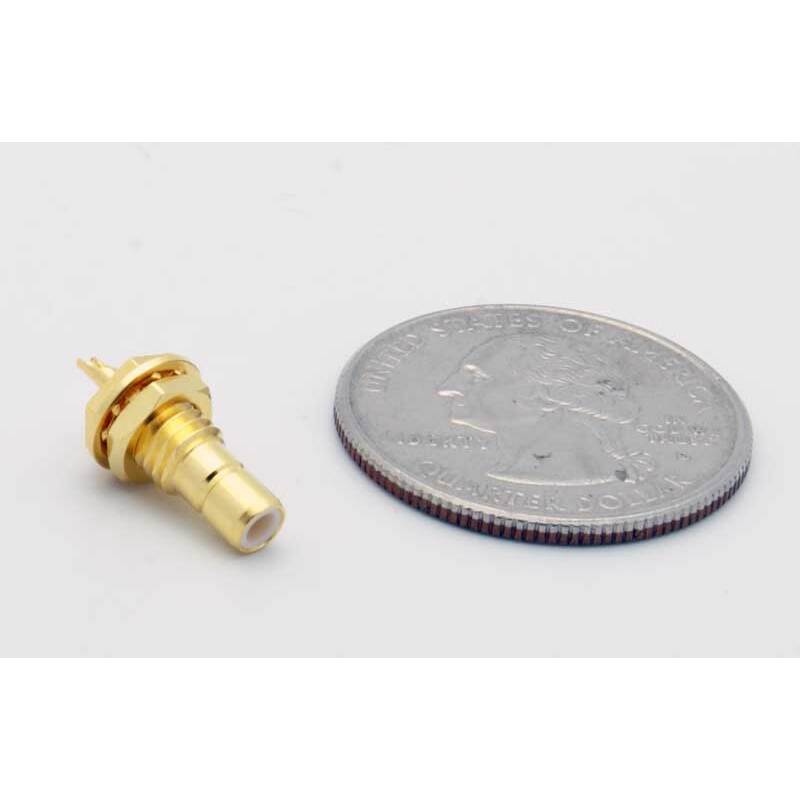

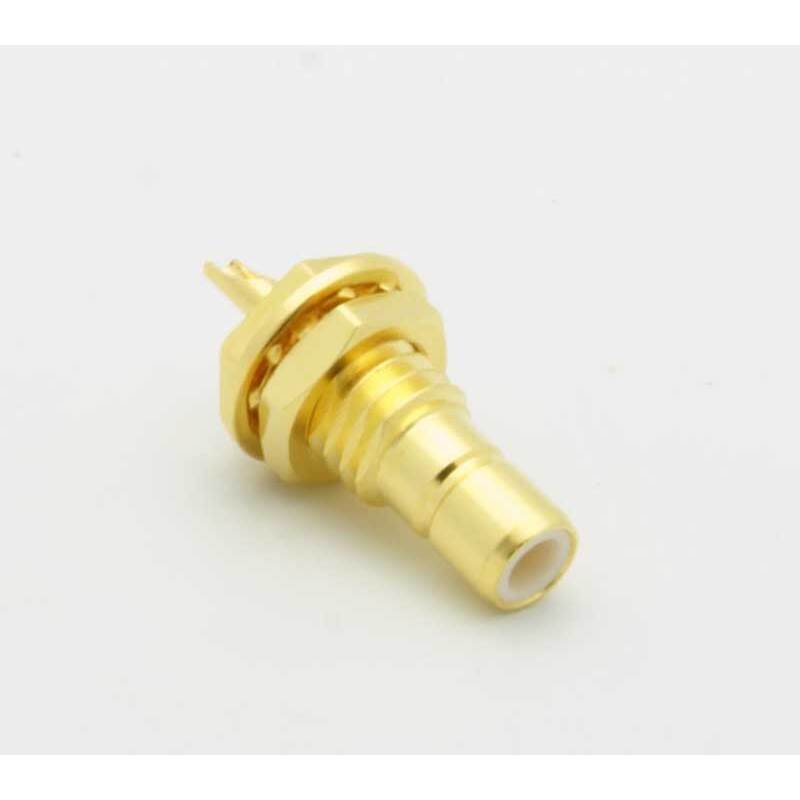

SMB Female Chassis Mount Connector
SMB Female Chassis Mount ConnectorReliable SMB Female Chassis Mount Connector for Easy Installation
Upgrade your RF projects with this high-quality SMB female chassis mount connector. Designed for hassle-free installation, this SMB female connector securely mounts in a standard 3/16" diameter panel hole, making it perfect for DIY electronics, home projects, and professional RF applications.
Key Features of the SMB Female Chassis Mount Connector
- Chassis Mount Style: Easily mounts in a 3/16" diameter hole on a panel or chassis.
- Gold Plated Contacts: The gold plated body and gold plated brass or copper conductors ensure excellent conductivity and superior signal clarity.

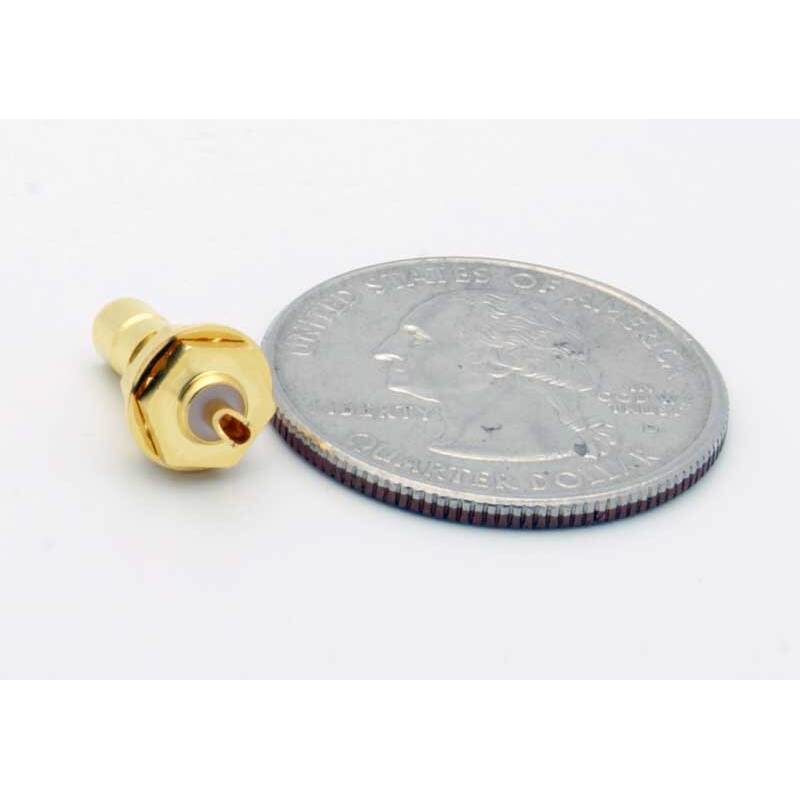

- Simple Solder Cup: Features a convenient solder cup for quick, secure wire connections.

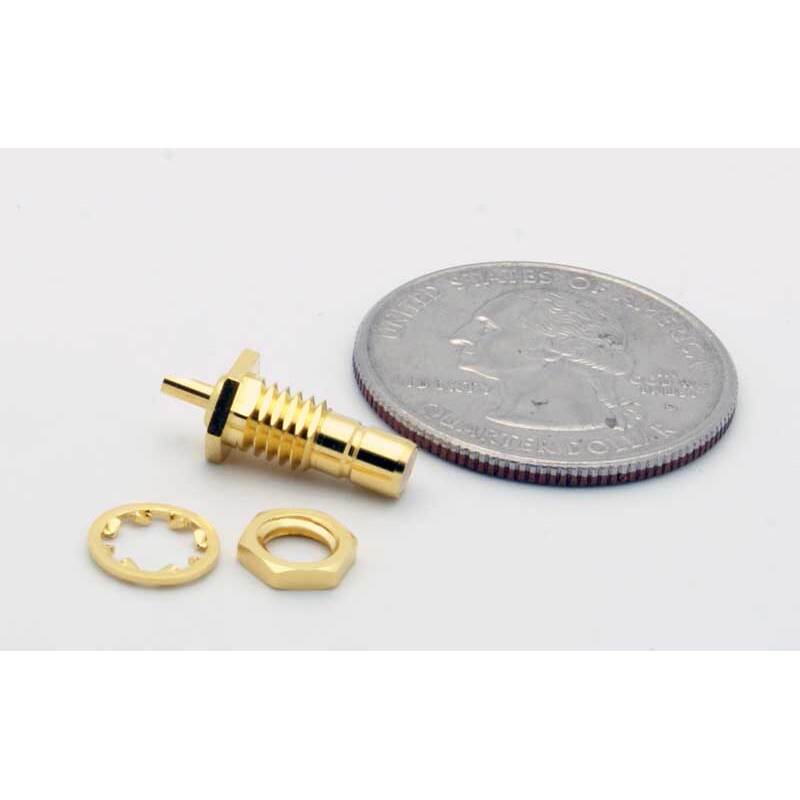

- All Hardware Included: Comes complete with all required mounting hardware for a straightforward setup.
- Non-Isolated Design: Ideal for most standard RF and coaxial applications.
Technical Specifications
- Connector Type: SMB Female
- Mounting Style: Chassis / Panel Mount
- Hole Size: 3/16" diameter (approx. 4.76 mm)
- Overall Dimensions: 0.50" (length) x 0.18" (diameter)
- Contact Material: Gold plated brass or copper
- Quantity: 1 connector per package
- Product ID: pan-smb-2863
Applications and Usage
This SMB female chassis mount connector is perfect for connecting coaxial cables in RF circuits, home electronics, amateur radio, and DIY projects. Its compact size and reliable construction make it a popular choice where space is limited and secure connections are crucial.
Simply insert the connector into your panel’s 3/16" hole, solder your wire to the cup, and fasten with the provided hardware for a sturdy, long-lasting connection.
Why Choose This SMB Chassis Mount Connector?
- Compact and lightweight—ideal for tight spaces
- Gold plated contacts for superior performance
- Easy, tool-friendly installation
- Trusted by electronics and RF hobbyists
