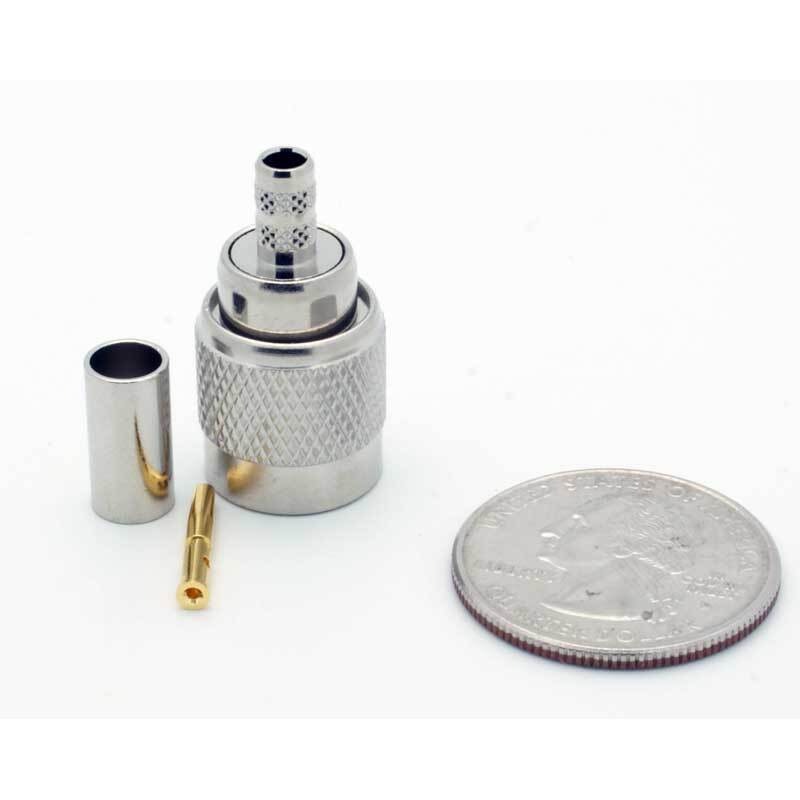

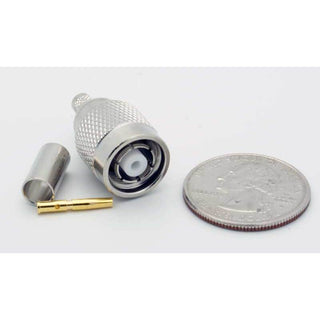

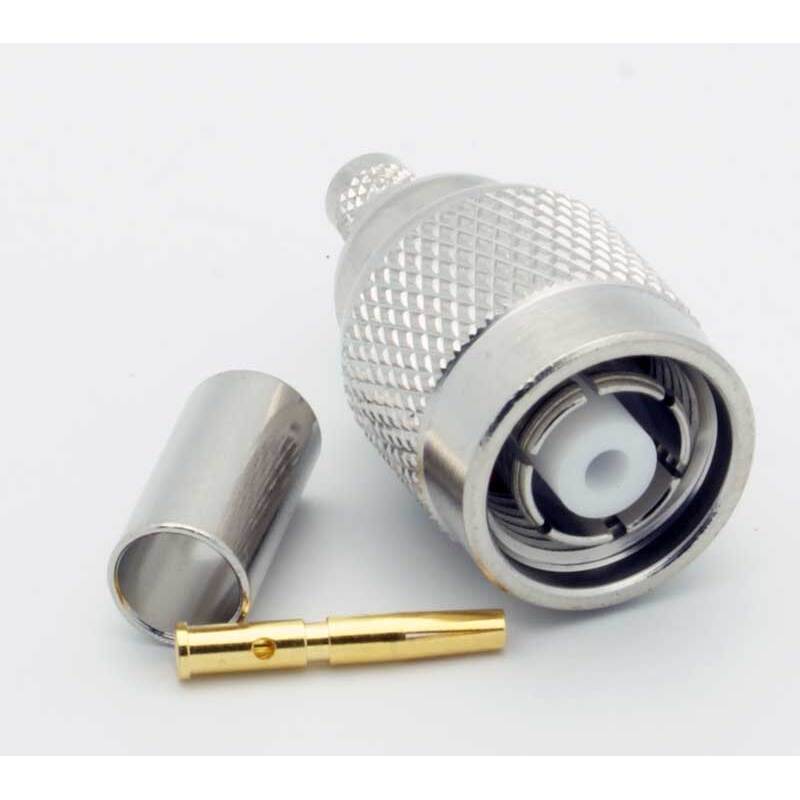

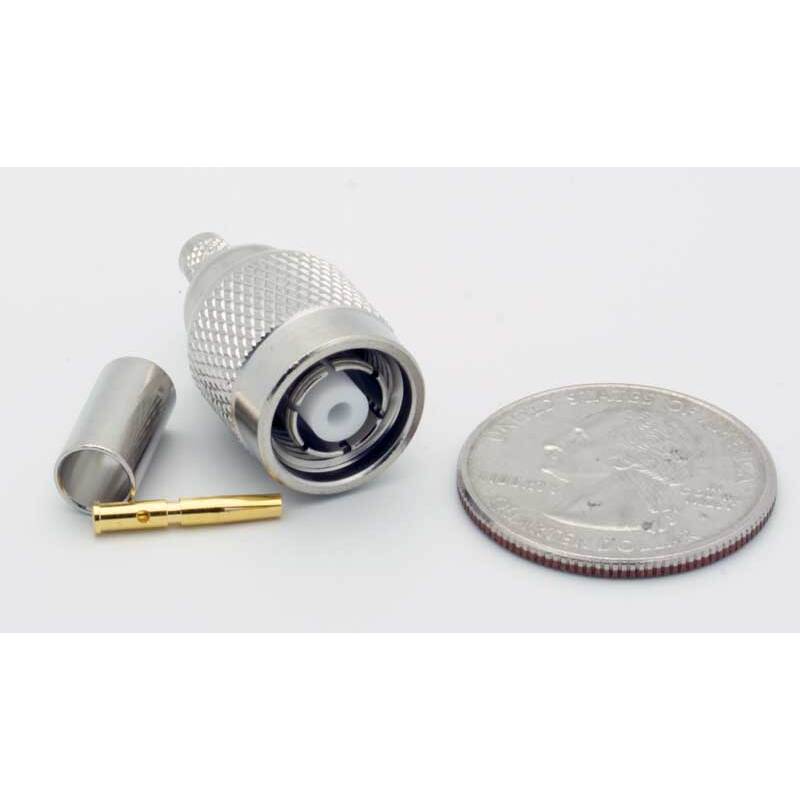

Reverse TNC Male 3 Piece Crimp Connector for RG-58 Coax
Reverse TNC Male 3 Piece Crimp Connector for RG-58 Coax Cable
Inline / Line Mount Reverse Polarity TNC Male connector crimps on to RG-58 Coax. This connector is a "3 Piece" design, meaning the center pin needs to be soldered on to the center conductor of the coax and then the connector is crimped on to the coax using the included ferrule for RG-58.
Reverse Polarity TNC Male connectors have a standard body, but a female socket normally found on standard TNC female connectors.
Quality nickel plated with knurled grips. Gold plated brass or copper conductors.
Overall Dimensions: 1.28" Long x .58" Diameter
Vetco stocks a complete line of RF Adapters and Connectors, including gender changers, splitters, between series adapters and end connectors.
QTY: 1 Connector
