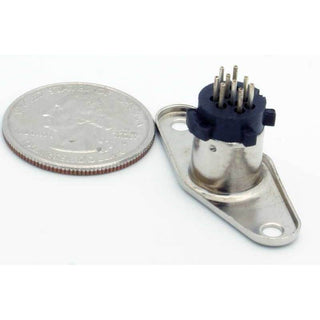

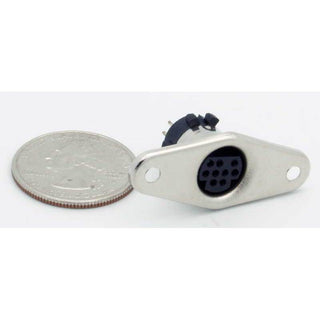

9 Pin Mini-DIN Female Panel Mount Jack

Easy-to-Install 9 Pin Mini-DIN Female Panel Mount Jack

Upgrade your electronics setup with this reliable 9 Pin Mini-DIN Female Panel Mount Jack. Designed for simple installation and a secure connection, this panel mount Mini-DIN jack is an excellent solution for both new projects and repairs. The sturdy mounting flange ensures a flush fit, making it perfect for audio, video, data, and custom wiring applications.

Key Features of the 9 Pin Mini-DIN Connector

• Number of Contacts: 9
• Connector Type: Mini-DIN Female Panel Mount
• Lead Type: Solder cups for a secure and straightforward wire connection—accepts wire sizes up to 24 AWG
• Mounting Style: Flush panel mounting for a professional, low-profile finish
• Material: Durable construction suitable for repeated use

Technical Details

• Mounting Hole Size: 13/32"
• Mounting Screw Spacing: Approximately 1-3/16"
• Overall Dimensions: 0.55" Tall x 0.40" Diameter with a 1.5" Mounting Flange
• Includes: 1 Mini-DIN Female Panel Mount Jack (Vetco part: pan-md-67000-9s)

Reliable Connections for Everyday Projects

This 9 pin Mini-DIN connector is ideal for DIY enthusiasts, hobbyists, and those repairing or upgrading equipment. The direct solder lugs give you a stable connection for cables up to 24AWG and are well-suited for custom audio, video, or control interface builds.

Other Mini-DIN Connectors Available

Looking for more options? Vetco carries a complete line of DIN and Mini-DIN connectors, including inline plugs, jacks, panel mount and PC board mount connectors. Check our selection to find the right Mini-DIN female connector for any application.
