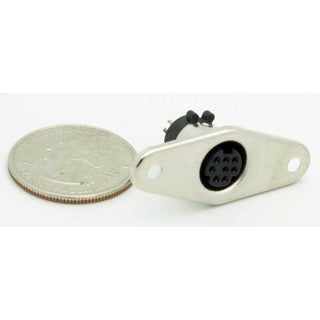

8 Pin Mini-DIN Female Panel Mount Jack
8 Pin Mini-DIN Female Panel Mount JackReliable 8 Pin Mini-DIN Female Panel Mount Connector
Upgrade your electronics projects with this easy-to-install 8 pin mini-DIN female panel mount jack. Designed for everyday consumers, this versatile connector is ideal for custom audio equipment, computer interfaces, retro gaming repairs, and other DIY applications that require secure, dependable connections.
Key Features of the 8 Pin Mini-DIN Female Panel Mount Jack
- Number of Contacts: 8
- Lead Type: Solder cups (accepts wire up to 24 AWG)
- Flush mounting style for a clean, secure fit
- Mounting Hole Size: 13/32"
- Mounting Screw Spacing: 1+3/16" (approximate)
- Overall Dimensions: 0.55" tall x 0.40" diameter with a 1.5" mounting flange
- Durable construction for long-lasting, reliable connections
- Easy identification of pin locations for fast wiring

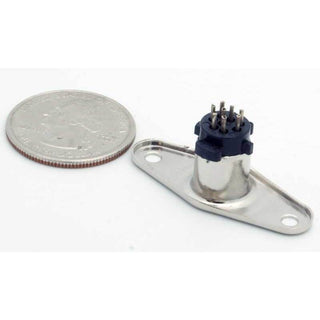

Easy Soldering and Panel Installation
This 8 pin mini-DIN female connector features clear, easy-to-use solder cups that support up to 24 AWG wire, making it fast and simple for anyone to achieve solid, professional results—even with basic tools. The flush mounting design ensures that your jack sits snugly and securely on your panel with minimal fuss.
Ideal for DIY and Everyday Repairs
Whether you’re restoring vintage electronics, setting up a custom control interface, or building your own musical equipment, this mini-DIN female panel mount jack offers a universal solution for reliable signal connections. Its compatibility with a range of mini-DIN plugs makes it great for everyday consumers, hobbyists, and electronics enthusiasts.
Compatible With Your Needs
Also known as a minidin or 8 pin DIN socket, this connector easily fits any project needing a high-quality, 8 pin mini-DIN female panel mount jack. Compatible with a wide assortment of DIY electronics supplies, this connector features sturdy mounting hardware and straightforward installation.
Explore Vetco’s Mini-DIN Collection
Looking for other options? Vetco offers a complete line of DIN and mini-DIN connectors, including inline plugs, jacks, panel mount, and PC board mount connectors. Need help deciding which 8 pin mini-DIN connector is right for your project? Our friendly team is here to help you make the best choice.
Product ID: PAN-MD-67000-8S
