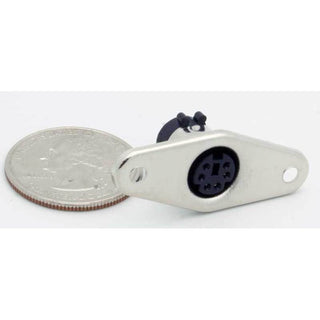

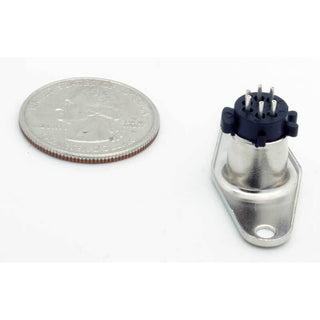

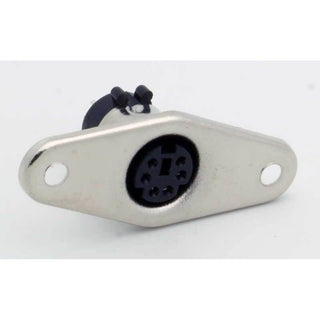

6 Pin Mini-DIN Female Panel Mount Jack
6 Pin Mini-DIN Female Panel Mount JackReliable 6 Pin Mini-DIN Female Panel Mount Jack Connection
Looking for a secure and easy-to-install connector for your electronics project or device repair? Our 6 pin mini-DIN female panel mount jack offers a versatile solution for audio, video, and data connections. This mini-DIN female panel mount connector is ideal for everyday consumers and DIYers who want a simple, solid connection.
Features of the 6 Pin Mini-DIN Female Panel Mount Socket
- Number of Contacts: 6
- Connector Type: 6 pin mini-DIN female socket
- Panel Mount Design: Easily installs into panels or project boxes
- Lead Type: Solder lugs that accept up to 24AWG wire
- Flush Mounting Style: Clean look for finished projects
- Mounting Hole Size: 13/32" (fits common panel cutouts)
- Mounting Screw Spacing: 1 + 3/16" (approximate), for easy installation
- Overall Dimensions: 0.55" tall x 0.40" diameter with a 1.5" wide mounting flange
Easy Installation & Versatile Use
This mini-DIN panel mount jack is engineered for quick and reliable panel mounting. With solder cup style leads, connecting your 24 AWG wires is straightforward and secure. This connector is compatible with a wide range of mini-DIN plugs used in audio, video, and data equipment, making it a popular choice for home entertainment systems, vintage gaming, custom keyboards, and repairs.
Why Choose Our 6 Pin Mini-DIN Female Panel Mount Connector?
Our 6 pin mini-DIN female connector is chosen for its durability and straightforward installation. It is also known as a minidin, miniature DIN, or mini din connector, and is compatible with many electronics devices requiring a 6 pin mini-DIN panel mount socket.
Vetco Electronics stocks a wide selection of DIN and mini-DIN connectors, including inline plugs, panel mount jacks, and PC board mount connectors for all your project needs.
Technical Data
- Contacts: 6 position (female)
- Wire Compatibility: Solder cups accept up to 24 AWG
- Mounting Hole Size: 13/32"
- Mounting Flange Width: 1.5"
- Dimensions: 0.55" (height) x 0.40" (diameter)
- Mounting Screw Spacing: 1 + 3/16" (approximate)
- Product ID: PAN-MD-67000-6S
- Quantity: Each package contains 1 mini-DIN connector
