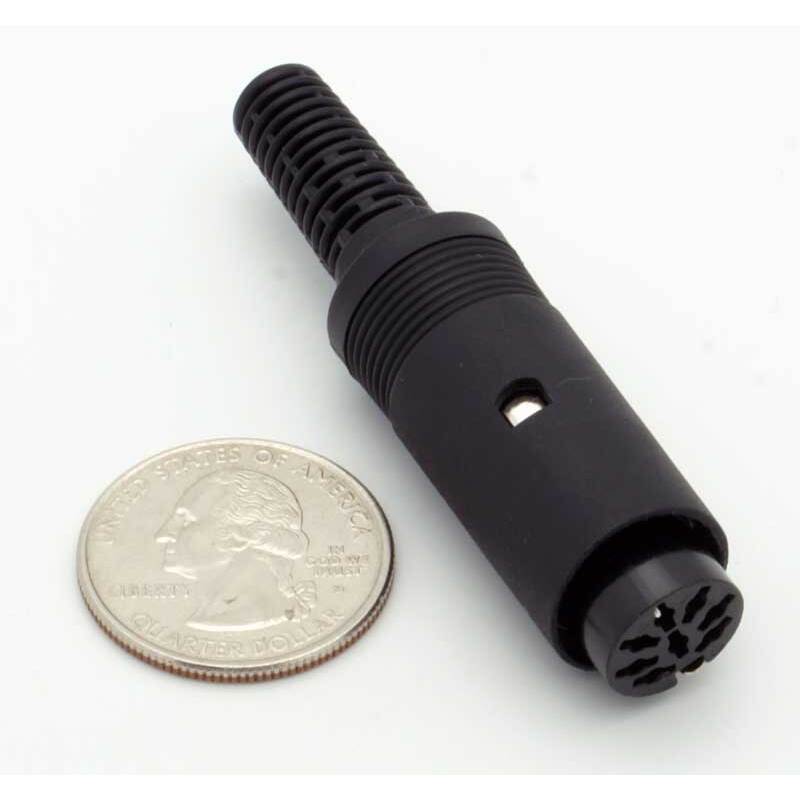

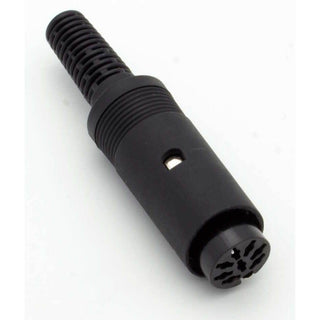

7 Pin DIN Female Inline Jack Connector

Reliable 7 Pin DIN Female Connector for Audio and DIY Projects

Our 7 Pin DIN Female Inline Jack Connector is engineered for simple and secure connections in audio, electronic, and DIY applications. This high-quality 7 pin DIN female connector is designed to make wiring fast and reliable, making it an excellent choice for repairs, custom cables, and hobby electronics.

Easy Inline Connection with Solder Lugs

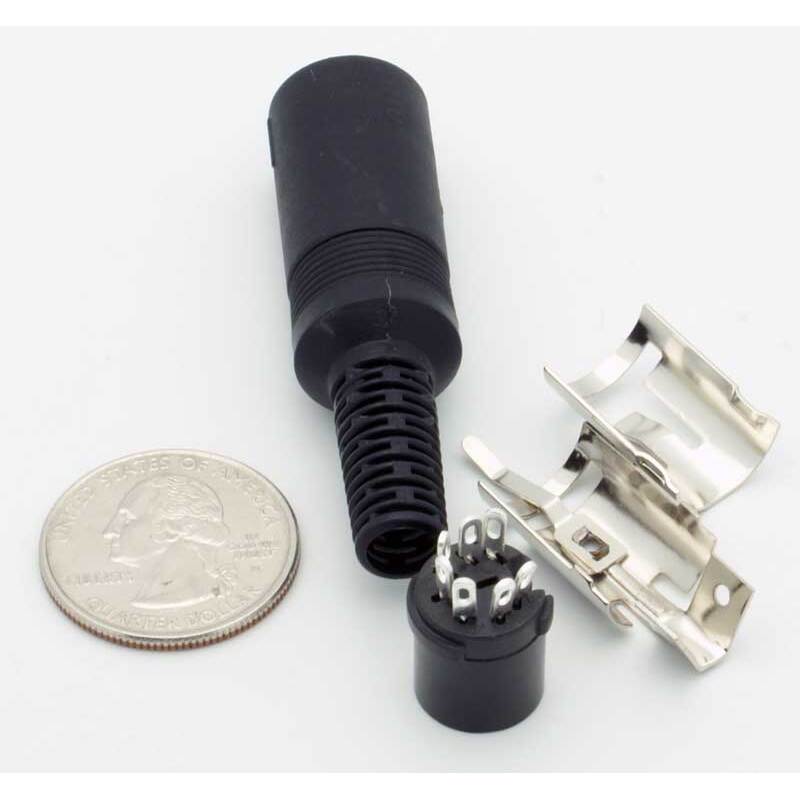

The 7 pin DIN female inline jack features disassemblable housing to reveal convenient solder lugs, allowing for quick and secure wire connections. The lugs are suitable for wire sizes up to 22AWG, making it ideal for most common audio, MIDI, and serial devices.

Durable Construction and Strain Relief

This 7 pin DIN female inline socket includes a molded strain relief section designed to fit cables up to 7mm in diameter, helping to protect your connections and prevent wire fatigue. The overall connector measures 2.55" long and 0.65" in diameter, providing a compact and robust solution for tight spaces.

Compatible with Popular DIN Connectors

Easily mates with the 7 Pin DIN Male Inline Plug (PAN-DIN-46000-7P) and is also available in a panel mount version: 7 Pin DIN Female Panel Mount Jack (PAN-DIN-54000-7S).

Key Features and Specifications

• Number of Contacts: 7
• Lead Type: Solder lugs (accepts wire up to 22AWG)
• Cable Support: Molded strain relief for cables up to 7mm
• Dimensions: 2.55" (length) x 0.65" (diameter)
• Type: Inline female DIN connector, in-line solder type
• Product ID: PAN-DIN-46100-7S

Find the Right 7 Pin DIN Connector at Vetco Electronics

Vetco Electronics offers a wide selection of DIN connectors, including inline plugs, jacks, panel mount, and PCB mount types. Whether you’re looking for a 7 pin DIN female inline jack connector for your next audio project or a replacement part for vintage equipment, you’ll find reliable options and friendly service.

Qty: 1 DIN Connector
