N.O. & N.C. Magnetic Reed Switch - Philmore

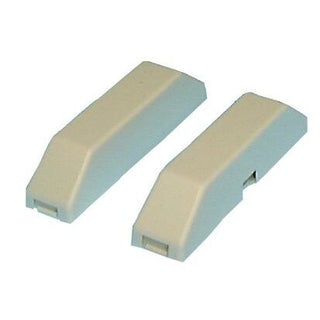

This magnetic reed switch includes the magnet. It has both a normally open and a normally closed position on the reed switch side. Perfect for door and window sensors for alarm systems or other types of entry state change detection. Can also be used as a very rudimentary magnetic field detection sensor. One switch and one magnet per package.
This Single Pole Double Throw (SPDT) switch offers both Normally Open (N.O.) and Normally Closed (N.C.) contacts, providing flexibility for various electrical configurations.
Key Features:
- Dual Functionality: Seamlessly integrates N.O. and N.C. operations, allowing for adaptable circuit designs.
- High Sensitivity: Activates with a magnetic field, ensuring precise and contactless switching.
- Robust Construction: Encased in a durable brown housing, designed to withstand regular use.
- Easy Installation: Equipped with screw terminals for secure and straightforward connections.
Technical Specifications:
| Specification | Details |
|---|---|
| Contact Form | SPDT (Single Pole Double Throw) |
| Current Rating | 0.5A at 100V DC |
| Voltage Rating | - 100V DC (Max) at 0.50A |
| Contact Resistance | 300 Meg Ohm (Max) |
| Terminal Type | Screw terminals (with plastic cover) |
| Color | White |
| Operation Gap | Up to 1.25 inches (maximum distance between switch and magnet) |
| Mounting Centers |
Applications:
Ideal for security systems, door and window sensors, and various automation projects, the Philmore Magnetic Reed Switch ensures dependable performance and longevity. Its magnetic activation mechanism provides precise and consistent operation, making it a dependable choice for applications requiring accurate position or status detection.
Enhance your electronic projects with the Philmore N.O./N.C. Magnetic Reed Switch—where quality meets functionality.
This unit replaces and superceeds part number: 30-17050
