Finder On-Delay Timer Relay for DIN Rail Control Panels

Simple On-Delay Timing for Everyday Automation Jobs

The Finder 80 Series on-delay timer relay is a compact DIN rail timing module made for applications where you want a load to turn on after a preset delay. This monofunction timer relay is a practical choice for control panels, lighting control, small machinery, door and gate systems, shutters, and general electrical automation where dependable delayed switching is needed.

This model uses a straightforward on-delay function, so power is applied to the timer first, and the output contact changes state after the selected delay time has passed. That makes it useful when you need a clean, repeatable delay without complicated programming.

Wide Voltage Range and Easy DIN Rail Installation

One of the biggest advantages of this Finder timer relay is its multi-voltage design. It supports 24 to 240V AC/DC operation, which helps simplify replacements and new installations by covering a wide range of common control voltages. The slim 17.5 mm housing saves space in the panel, and it mounts on standard 35 mm DIN rail for fast installation.

Screw terminals make wiring straightforward, and the narrow modular body fits neatly into electrical distribution and automation enclosures without taking up unnecessary room.

Adjustable Delay Timing for Flexible Control

This DIN rail timer relay offers six selectable time ranges, giving you flexibility for both short and longer delay needs. It is designed for timing applications from 0.1 seconds up to 20 hours, making it suitable for everything from quick relay sequencing to longer delayed activation tasks.

Typical timing ranges include 2 seconds, 20 seconds, 2 minutes, 20 minutes, 2 hours, and 20 hours. A front timing adjustment makes it easy to fine-tune the delay for your application.

Built for Reliable Switching Performance

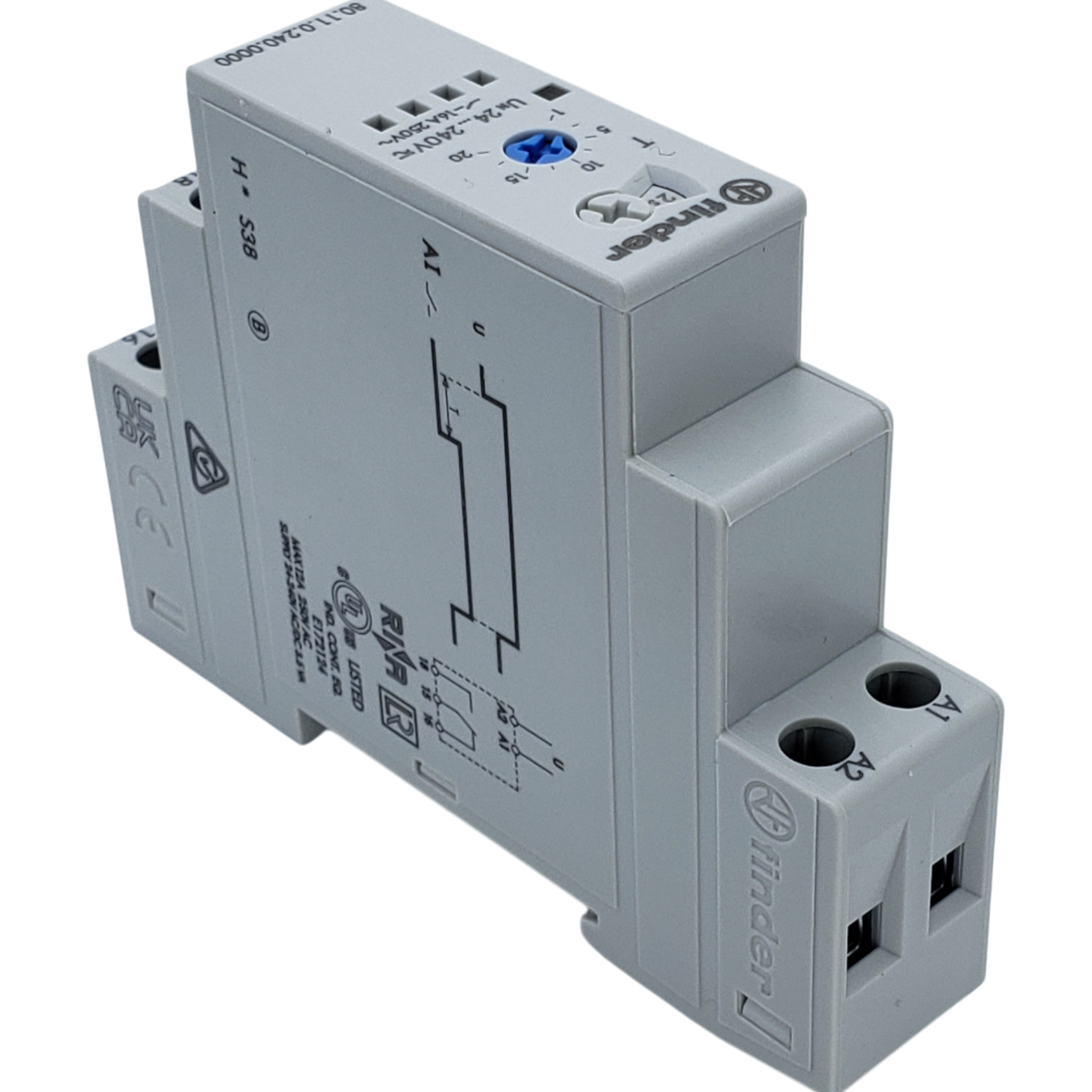

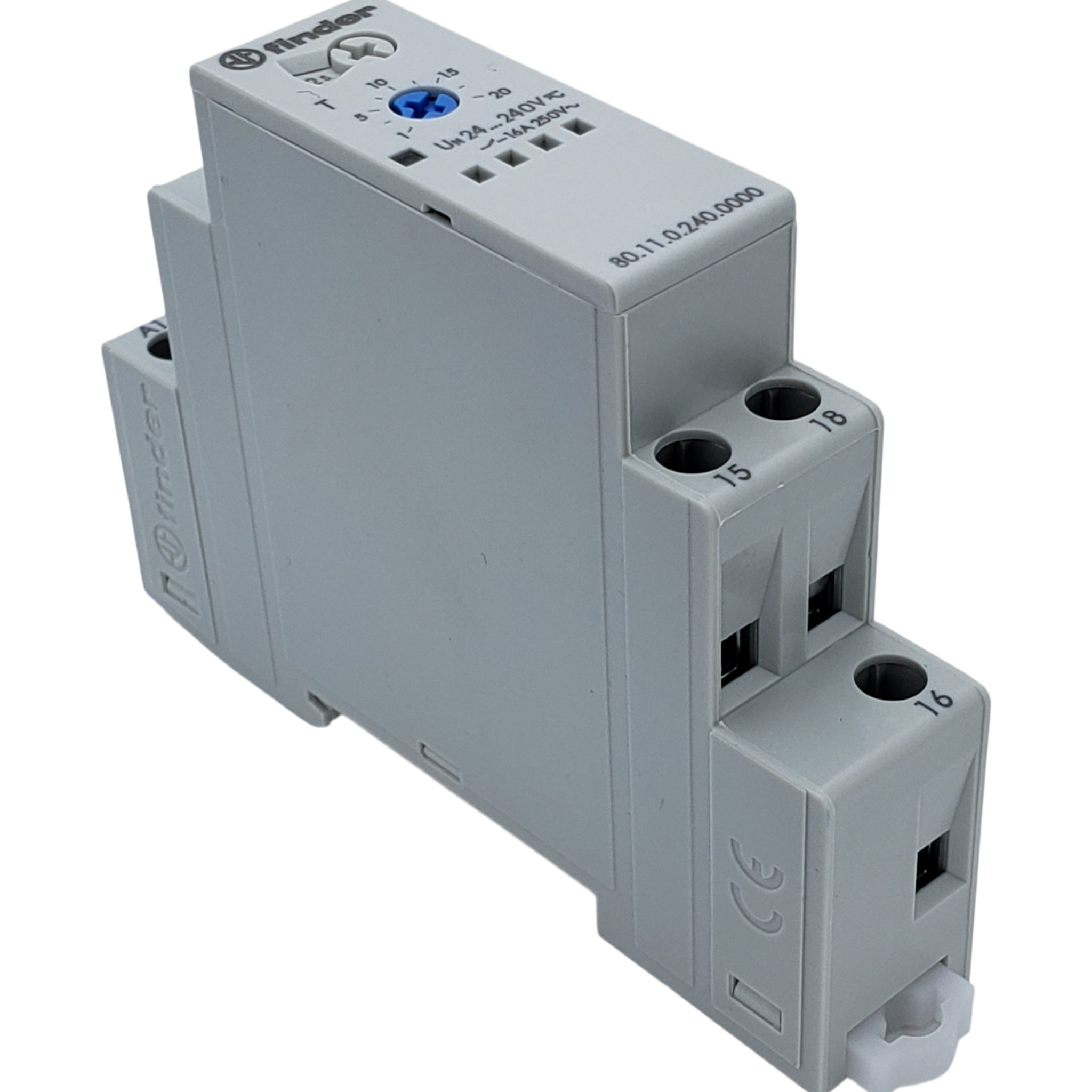

The Finder 80.11.0.240.0000 is a timer relay switch-on-delay module with 1 change-over contact, also known as 1 CO or SPDT. It is rated for up to 16A switching current with a maximum switching voltage of 400V AC and a maximum switching capacity of 4000 VA. This makes it suitable for a wide range of control and switching tasks in residential, commercial, and light industrial systems.

High input/output isolation helps improve protection in control applications, while the IP20 housing is designed for installation inside suitable enclosures. The relay is also built to operate in ambient temperatures from -20 C to +60 C.

Good Choice for Panels, Gates, Lighting, and Building Control

If you need a compact on-delay timer for a control cabinet, this Finder relay is a strong choice for delayed startup and timed switching. It works well in building automation, electrical panels, gate and door openers, blinds and shutters, hoists, and similar systems that benefit from predictable time-delay control.

Because it is a monofunction timer, it is especially appealing when you want simple operation without the extra complexity of multi-function timing relays.

Technical Details

Model: Finder 80.11.0.240.0000

Series: Finder 80 Series modular timers

Function: On-delay timer relay

Type: Monofunctional TDR

Mounting: 35 mm DIN rail (EN 60715)

Connection: Screw terminal

Contact configuration: 1 change-over (1 CO / SPDT)

Operating voltage: 24 - 240V AC/DC

Minimum operating voltage: 24V AC/DC

Maximum operating voltage: 240V AC/DC

Maximum switching voltage: 400V AC

Maximum switching current: 16A

Maximum switching capacity: 4000 VA

Rated load AC15 at 230V AC: 750 VA

Single-phase motor rating at 230V AC: 0.55 kW

Minimum time range: 0.1 s

Maximum time range: 20 h

Readiness duration: 50 ms

Recovery time: 100 ms

Setting accuracy: ±5%

Repeatability: ±1%

Contact material: AgCdO

Protection rating: IP20

Ambient temperature range: -20 C to +60 C

Dimensions: 17.5 x 60.8 x 88.8 mm

Compact Finder Timing Control from Vetco

For customers looking for a slim DIN rail timer relay with easy wiring, broad voltage compatibility, and dependable on-delay operation, the Finder 80 Series is a proven solution. The 80.11.0.240.0000 offers practical timing control in a narrow modular format that fits well in modern control panels and automation systems.
