Mini Diffused Addressable RGB LED Strip - 5V - 1M (3.28 ft) - WS2812 - COB Strip
WS2812 Addressable LED Strip – 160 LEDs per Meter
High-Performance RGB Lighting with WS2812 IC
This WS2812 addressable LED strip delivers bright, uniform, and flexible lighting for decorative, professional, and creative applications. Designed with 160 LEDs per meter and integrated WS2812 IC chips, each LED can be individually controlled to produce smooth color transitions and vivid effects. The result is a continuous and seamless light output ideal for accent lighting, displays, signage, and DIY electronics projects. NOTE: This strip REQUIRES the use of a micro-controller or addressable controller to run. This will not run on its own with just 5V power.
Works fantastically with the: WiFi Controller & Remote For WS2811 Addressable LEDs & Strings
Want to power this strip off USB using the above mentioned addressable controller? Use this with the two items: USB 5V to 2.1mm DC Barrel Plug - Great For Addressable LED Strip Controllers - 20 AWG - 5ft
Technical Specifications
- Input Voltage: DC 5V ONLY
- IC Type: WS2812
- LED Density: 160 LEDs per meter
- Power Consumption: 12W per meter
- FPCB Width: 5mm
- Length: 1 Meter (3.28 Ft)
- Cutting Length: 60 LEDs/m – 17.5mm; 100 LEDs/m – 10mm; 160 LEDs/m – 12.5mm
- Color Rendering Index (CRI): Ra ＞ 90
- View Angle: 180°
- Operating Temperature: -20°C to +45°C
- Storage Temperature: -20°C to +60°C

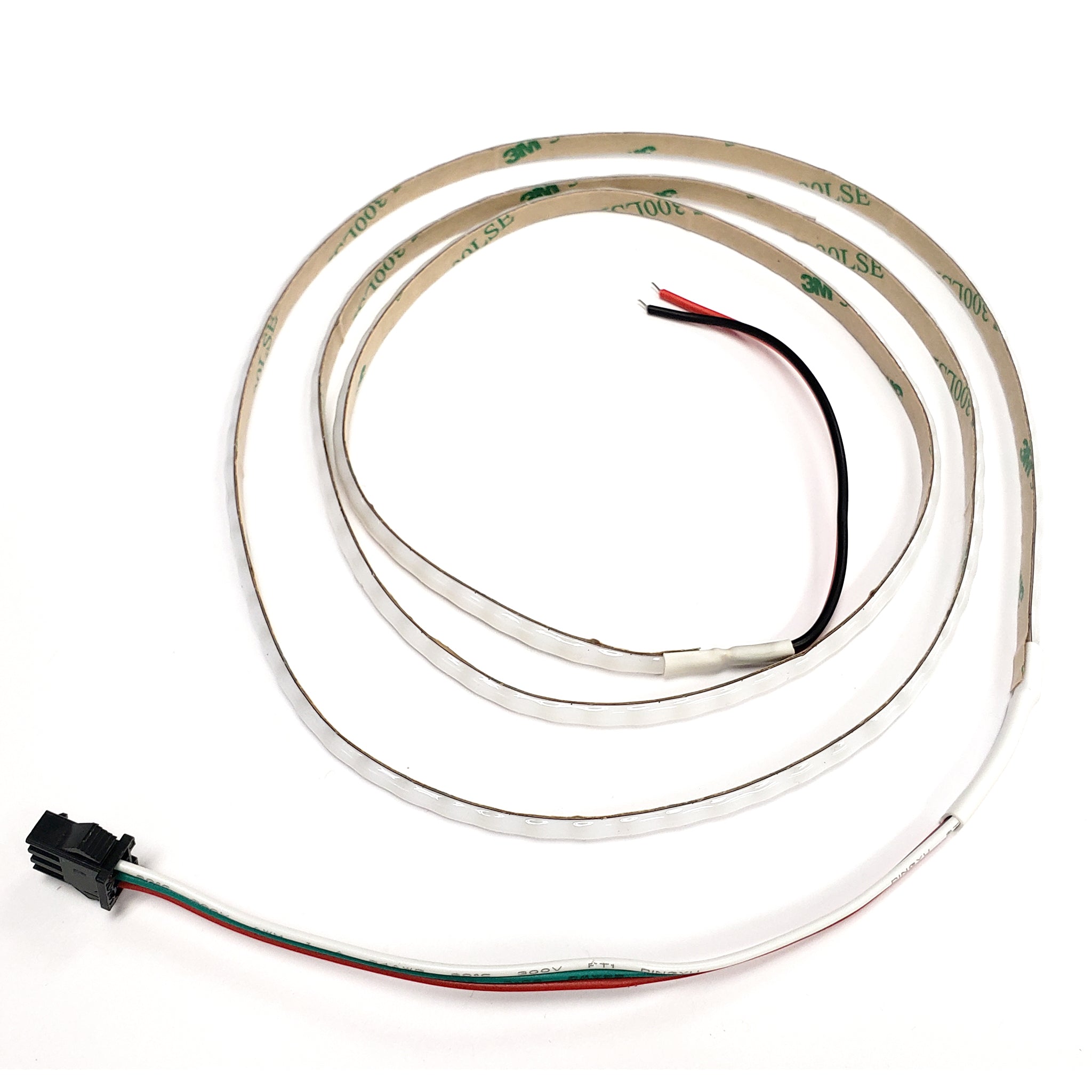

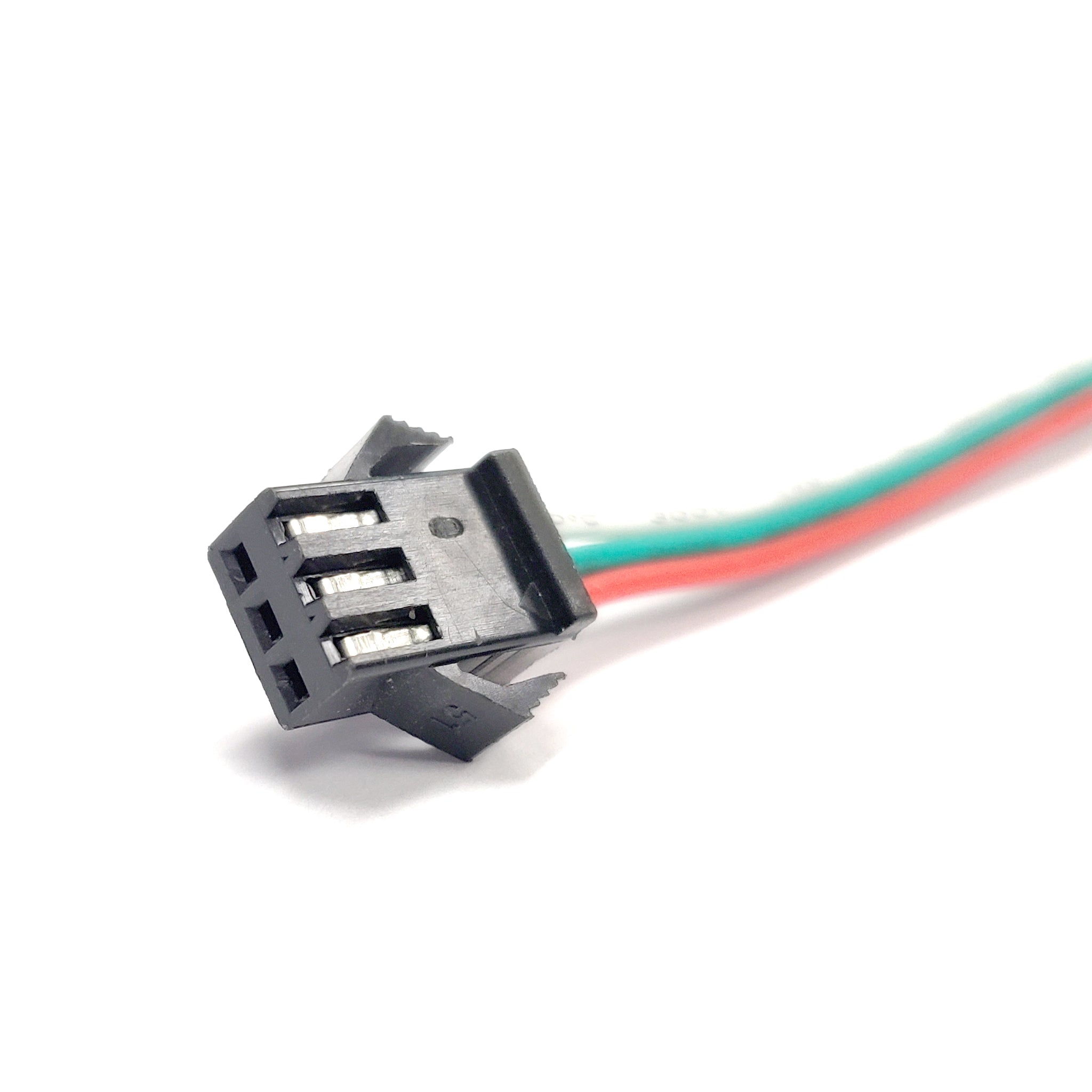

- Connection: Standard LED Strip Plug (JST SM 3 Pin M/F Pair Locking Connector) on one end and stripped-tinned wire on the other end.
Bright, Consistent, and Flexible Lighting

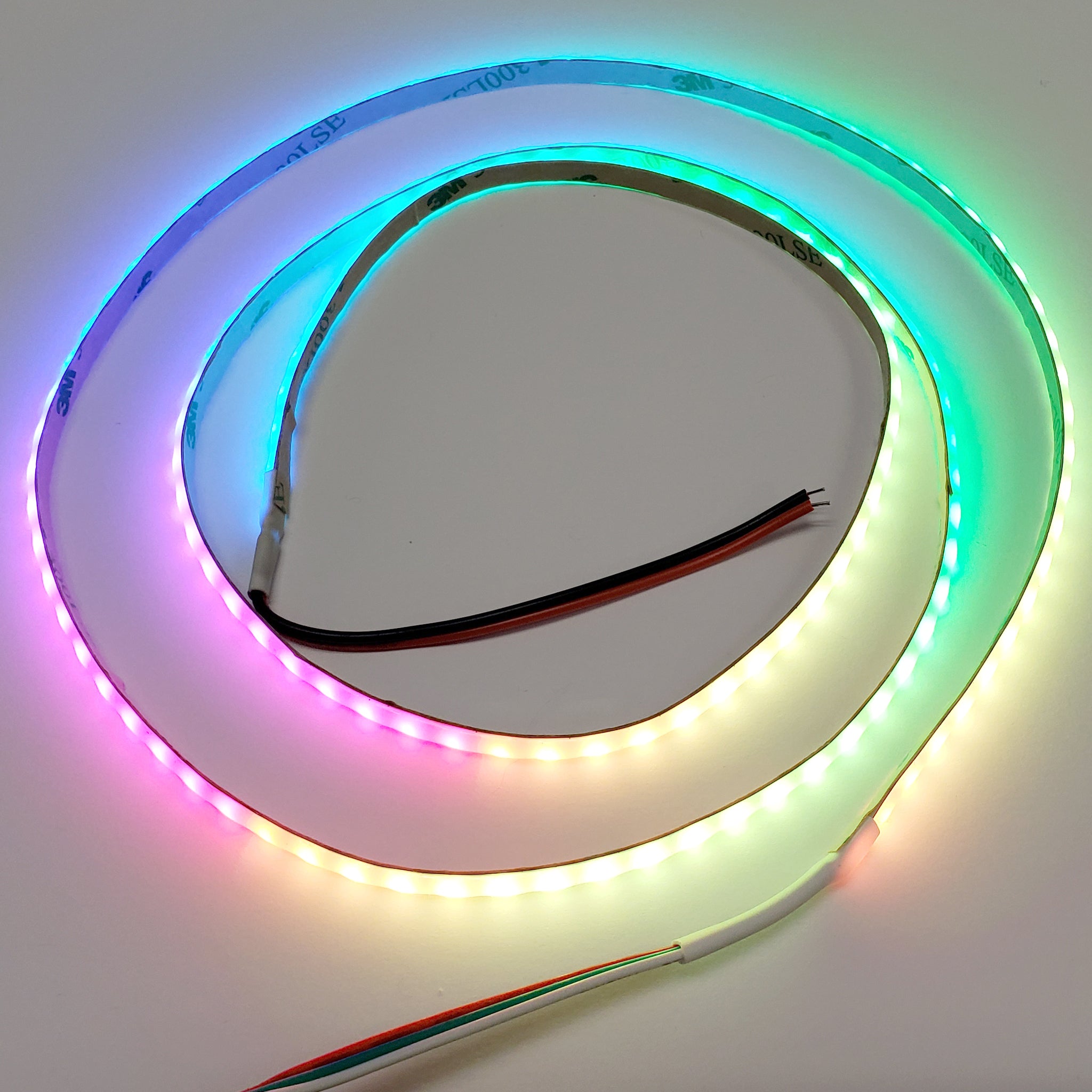

The WS2812 LED strip features a linear chip arrangement with an integrated diffused package that provides uniform color output and no visible light spots. Its high thermal conductivity flexible circuit board ensures reliable performance and easy installation in curved or compact areas. The LED COB chips are directly mounted to the FPC, providing a wide 180-degree beam angle for smooth and even illumination.
Easy Installation and Durable Construction

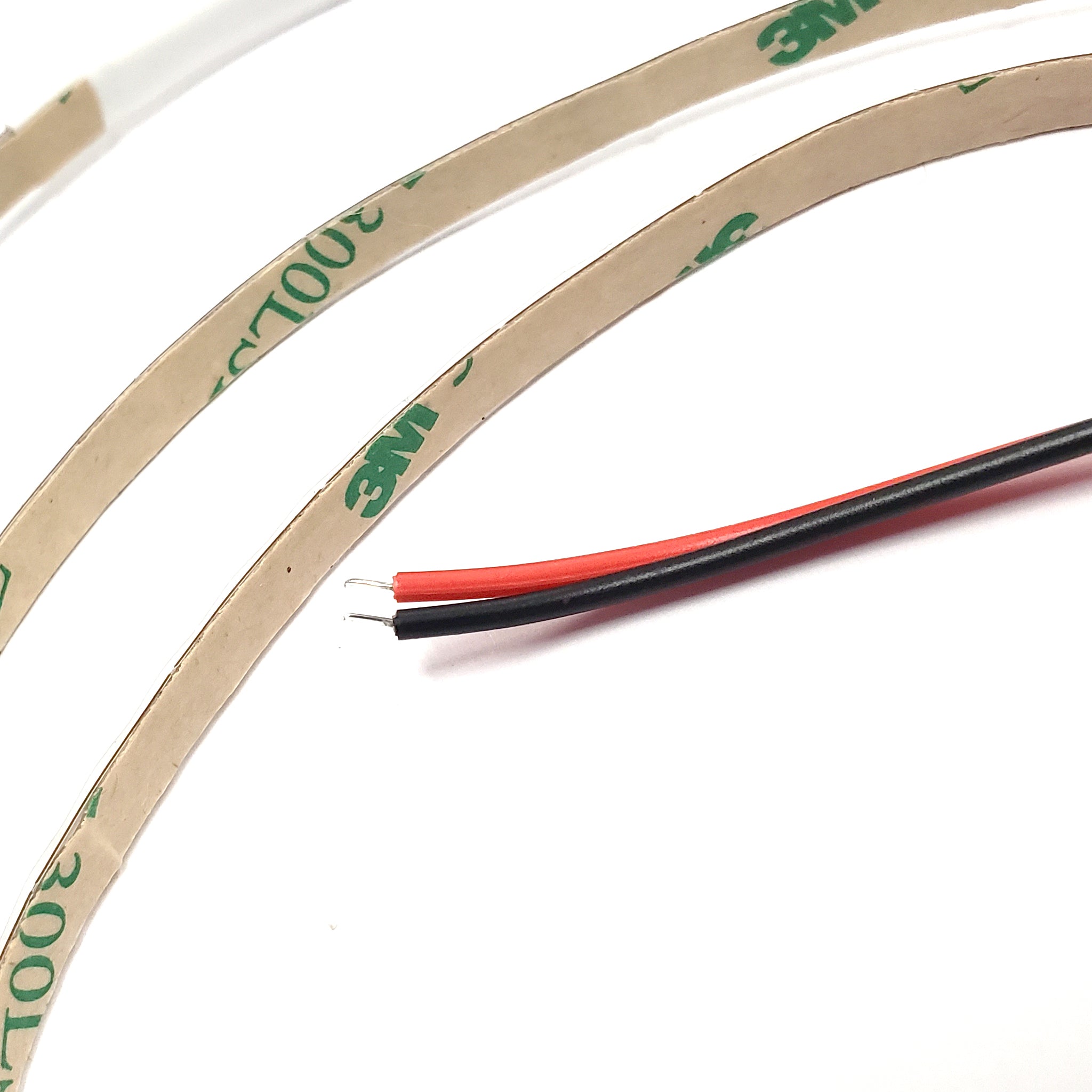

The back of the strip includes high-viscosity, semi-heat-conductive double-sided adhesive tape for secure and lasting mounting. This makes it simple to install on various surfaces, whether for permanent installations or temporary projects. The design also ensures excellent heat dissipation and mechanical stability.
Energy Efficient and Environmentally Friendly
Built with an energy-saving LED light source, this WS2812 RGB strip meets environmental protection standards while providing exceptional brightness and color quality. It’s an ideal choice for users seeking a long-lasting, low-power lighting solution with full control and flexibility.
Applications
- Decorative and ambient lighting
- Signage and display backlighting
- DIY lighting projects and custom electronics
- Retail, stage, or event accent lighting
Enhance your next lighting project with this WS2812 addressable LED strip — engineered for brilliant, uniform light and effortless installation.
