MG Red Insulating Varnish - 2oz
MG Chemicals Red Insulating Varnish – 2oz Bottle (4228-55ML)Easy, Reliable Protection for Electrical and High-Voltage Parts
MG Chemicals Red Insulating Varnish is a top choice for everyday users who need a simple solution for electrical insulation and protection. This high-quality red insulating varnish quickly forms a strong, glossy coating to protect motor windings, transformer coils, ballasts, and other electrical components from arcing, electrical discharge, moisture, and oxidation.
Designed for easy use, you can either brush or dip parts directly into the bottle—applicator brushes are included for hassle-free application. You can even apply multiple coats for extra reinforcement. This product is an excellent alternative to Glyptal 1201A and is manufactured by MG Chemicals, a trusted name for electrical coatings.
Versatile Uses: Motor Windings, Transformers & More
This electrical insulating coating is ideal for:
- Motor windings
- Small dry-type transformers
- Ballasts and coils (perfect for HID lighting transformers, e.g. mercury vapor, metal halide, sodium ballasts)
- Protecting metals from corrosion
- General high-voltage insulation applications
Main Features & Benefits
- High Dielectric Strength: 3000 V/mil (dry), 1500 V/mil (wet)
- Class F Thermal Protection: Rated for 155°C
- Fast Dry Time: Tack-free in 10 minutes, cures in 20 minutes at room temperature
- HAPs-free and low VOC
- High gloss red finish: Makes inspection easy
- Moisture and corrosion resistant
- Simple application—brush or dip with included applicators
Please note: This product is flammable until dried. Ships UPS Ground only—cannot be shipped by air.
Specifications: Red Insulating Varnish (MG Chemicals 4228-55ML)
| Type | Modified alkyd |
|---|---|
| Color | Red |
| Gloss (60°) | 80+ |
| Thinner | Xylol |
| Weight per Gallon | 8.84 ± 2.0% lbs |
| Dielectric Strength (dry) | 3000 V/mil |
| Dielectric Strength (wet) | 1500 V/mil |
| Tack Free Time | 10 min |
| Cure Time (25°C) | 20 min |
| Non-Volatile (by Weight) | 51.8 ± 2.0% |
| Non-Volatile (by Volume) | 40.8 ± 2.0% |
| Coverage at 1 mil (4228-4L) | 655 sq ft |
| Mandrel 1/2 inch | No Cracking |
| Mandrel 1/4 inch | No Cracking |
| VOC | 4.28 lbs/gal |
Package Contents

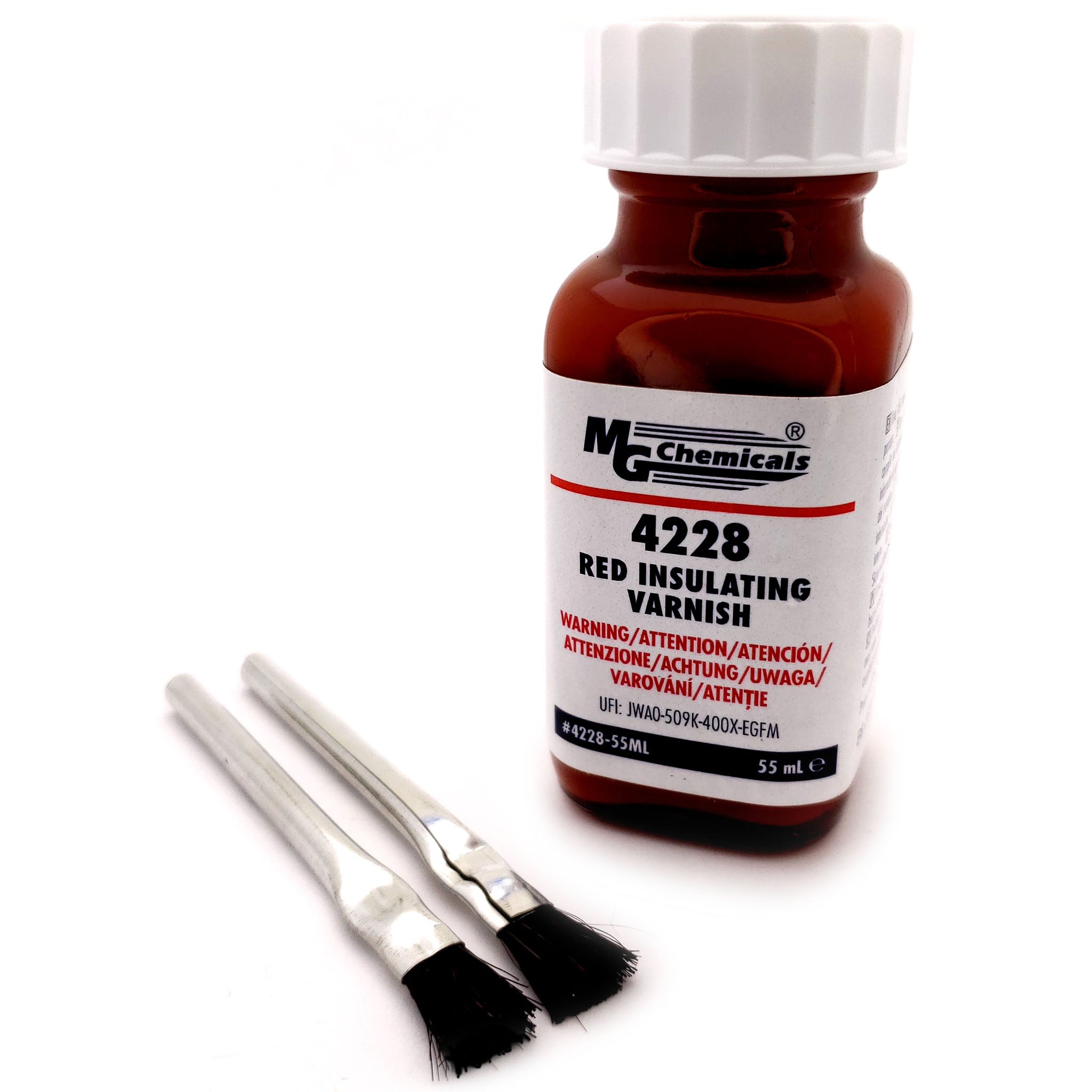

- 1 Bottle of Red Insulating Varnish - 2oz (55ml)
- 2 Applicator brushes included
For more details, safety data, and technical resources, visit the MG Chemicals Red Insulating Varnish page.
