Medium Series 4 Pin Female Chassis Front Mounting Waterproof Connector - 18-24 AWG

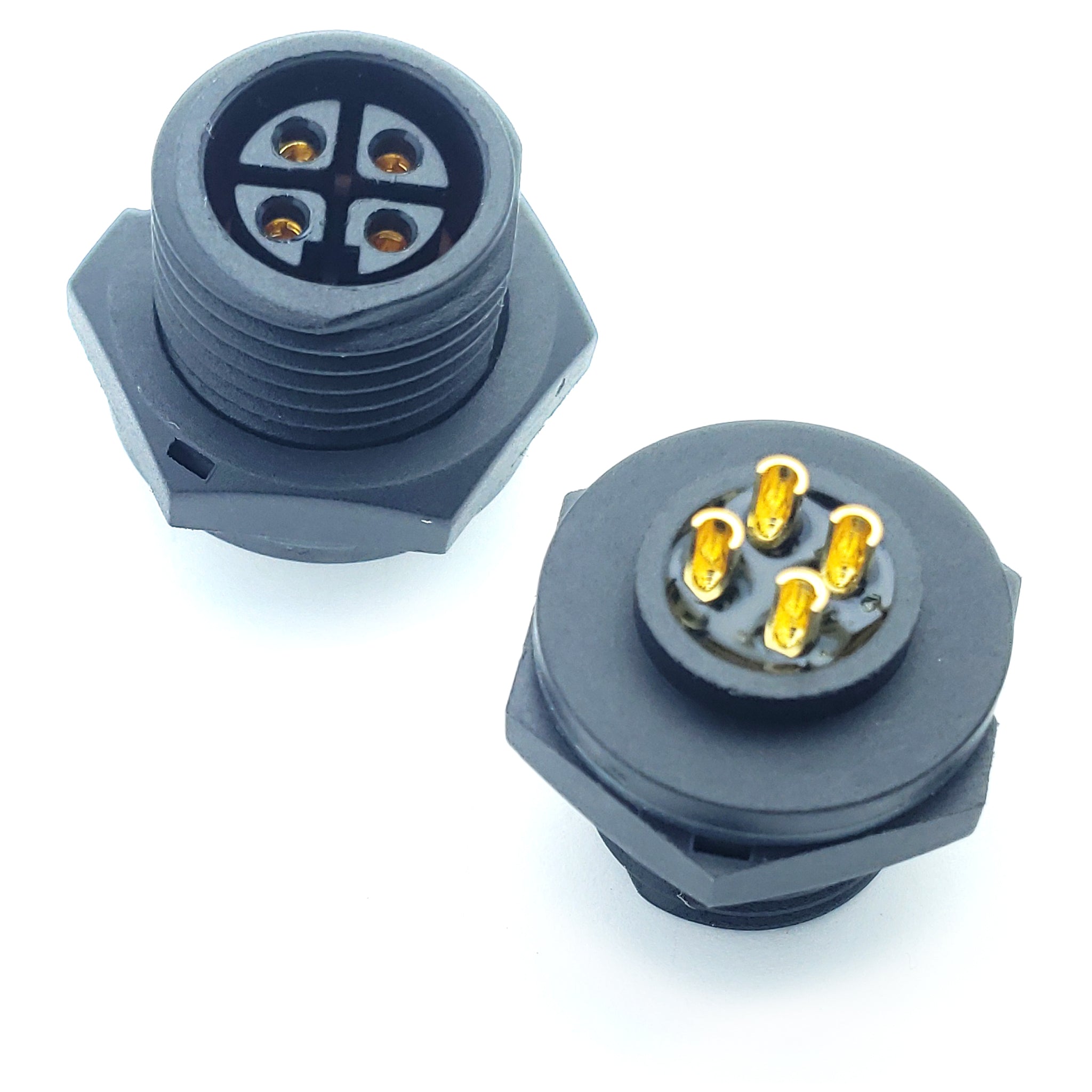

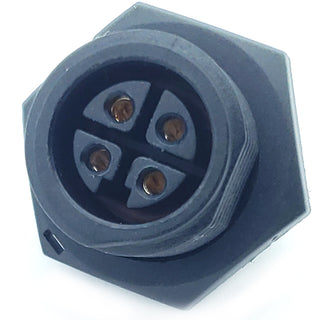

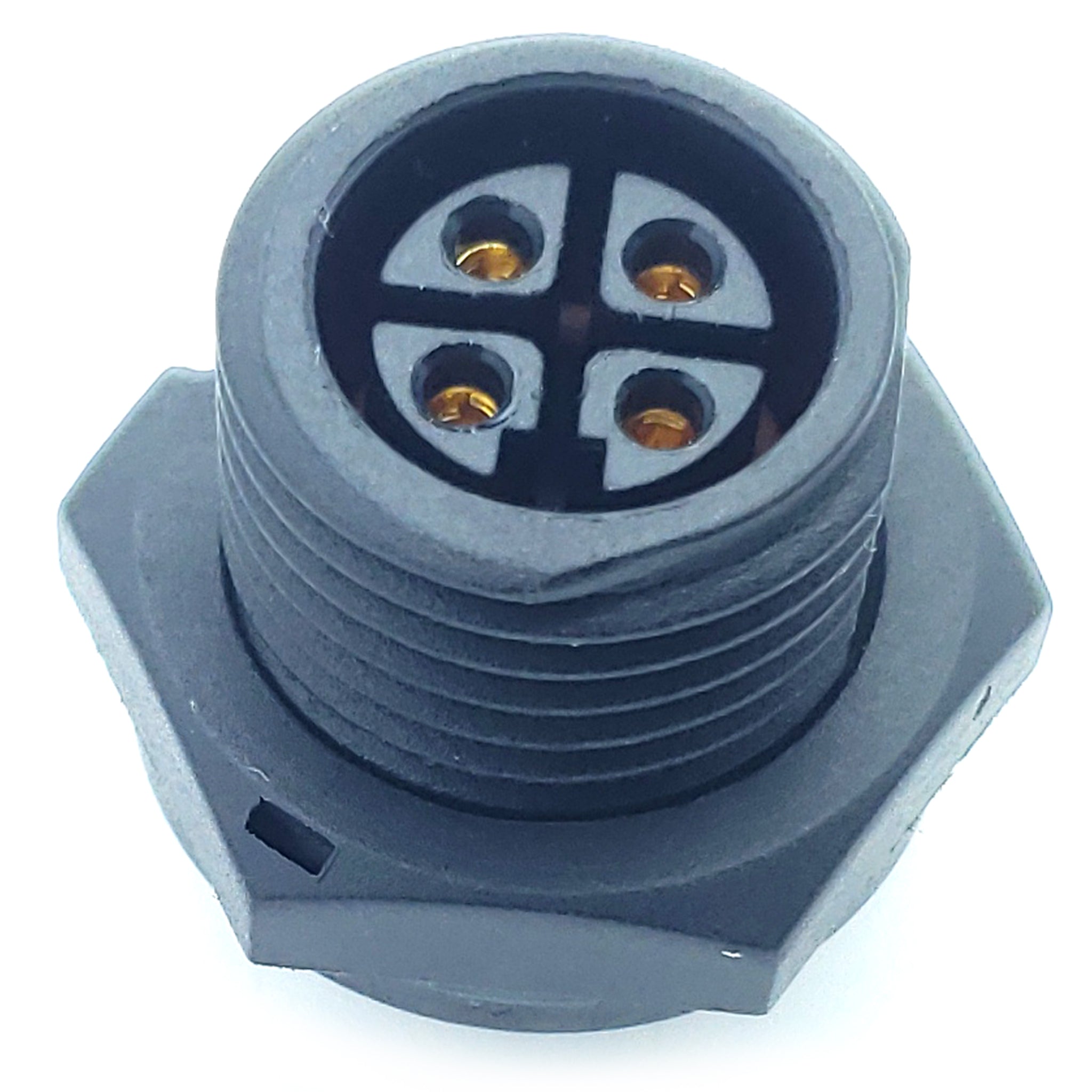

4 Pin Female Chassis Mount Waterproof Connector (Front Mount, 18-24 AWG)Easy, Reliable Waterproof Connections for Everyday Projects
This 4 pin female chassis mount waterproof connector is designed for simple installation and rock-solid performance, perfect for DIY, home, marine, automotive, and industrial applications. Its front mounting style makes it easy to add waterproof connectivity wherever you need it.
Field Installable & Hassle-Free
No need for messy silicone, tape, or special chemicals—just basic tools like a soldering iron and wire cutters. The internal compression gaskets and o-rings make installation watertight and straightforward, so you can connect your wires with confidence. The positive locking, threaded ring (on the matching male connector) ensures a secure, leak-free seal every time.
Ideal for Power and Data Connections
This waterproof electrical connector handles both power and communication lines—up to 10 Amps and 125 Volts—making it a great choice for projects ranging from outdoor speakers to LED lighting, off-road vehicles, security cameras, or boat wiring.
Technical Specifications
| Number of Pins: | 4 |
| Rated Current (40°C): | 10 Amps |
| Voltage Rating: | 125 Volts |
| Wire Gauge Compatibility: | 18-24 AWG |
| Cable Size: | 3.5mm-6.8mm Diameter |
| Environmental Protection: | IP68 Waterproof |
| Mechanical Life: | 500 Mating Cycles |
| Operating Temperature: | -45°C ~ 105°C |
| Max Panel Thickness: | 5mm |
| Panel Cutout: | 16mm |
| Dimensions: | 16.0mm Diameter x 18.0mm Long |
| Thread Outer Diameter: | 15.6mm |
| Flange Outer Diameter: | 20.3mm |
Perfect Fit and Compatibility
This connector is compatible with wire sizes from 18-24 AWG and is designed to mount securely in panels up to 5mm thick. It mates with the VUPN8230 male connector for a complete, reliable waterproof setup.
What You Get
QTY: 1 x 4 Pin Female Chassis Mount Waterproof Connector (front mount style, medium series).
