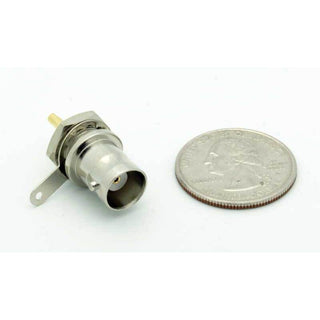

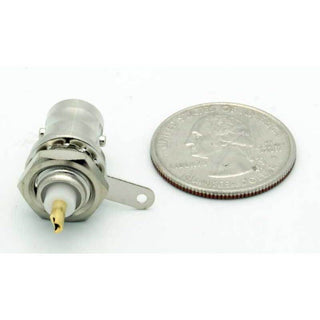

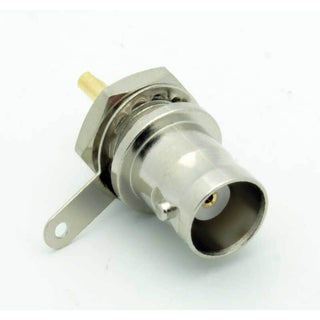

BNC Female Chassis Mount Connector
BNC Female Chassis Mount ConnectorReliable BNC Female Chassis Mount Connector for Easy Installations
Upgrade your electronics projects or repairs with this high-quality BNC female chassis mount connector. Designed for secure and consistent RF connections, this connector is perfect for anyone looking to add or replace a BNC panel mount connector in their equipment.
Product Features
- Chassis Mount Style: Fits 3/8" diameter mounting holes for universal compatibility in panels and enclosures.
- Durable Construction: Nickel plated body for corrosion resistance and long-lasting performance.
- High-Quality Contacts: Gold plated brass or copper conductors ensure great signal transfer and minimize loss.

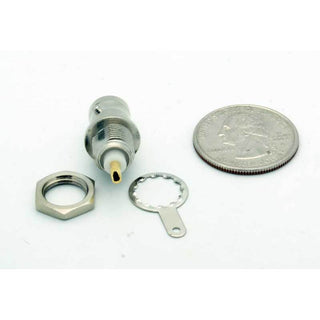

- Easy Installation: The built-in solder cup makes wiring simple and secure. All required mounting hardware is included.
- Non-Isolated: Direct connection for straightforward ground continuity in most applications.
Technical Specifications
- Connector Type: BNC Female Chassis Mount
- Mounting Hole Diameter: 3/8" (0.375")
- Overall Length: 1.08"
- Body Diameter: 0.375"
- Body Material: Nickel plated
- Contact Material: Gold plated brass or copper
- Isolation: Non-isolated
- Qty: 1 connector per package
- Product ID: LP-BNC-25-DGN
Applications
This BNC female chassis connector is ideal for use in custom audio/video panels, RF and test equipment, security camera systems, and more. Its BNC solder connector design makes it suitable for DIY projects and all skill levels.
How to Install
- Drill a 3/8" diameter hole in your chassis or panel.
- Place the connector through the hole from the front or rear side, as needed.
- Solder your cable’s center conductor and shield to the provided cups on the rear of the connector.
- Secure with the included mounting hardware for a solid, professional finish.
Discover More Options at Vetco Electronics
Vetco carries a complete selection of BNC RF connectors, adapters, and chassis mount solutions for every project. Whether you need a BNC female jack, bulkhead connector, or any other BNC panel mount connector, explore our options for all your electronics needs.
