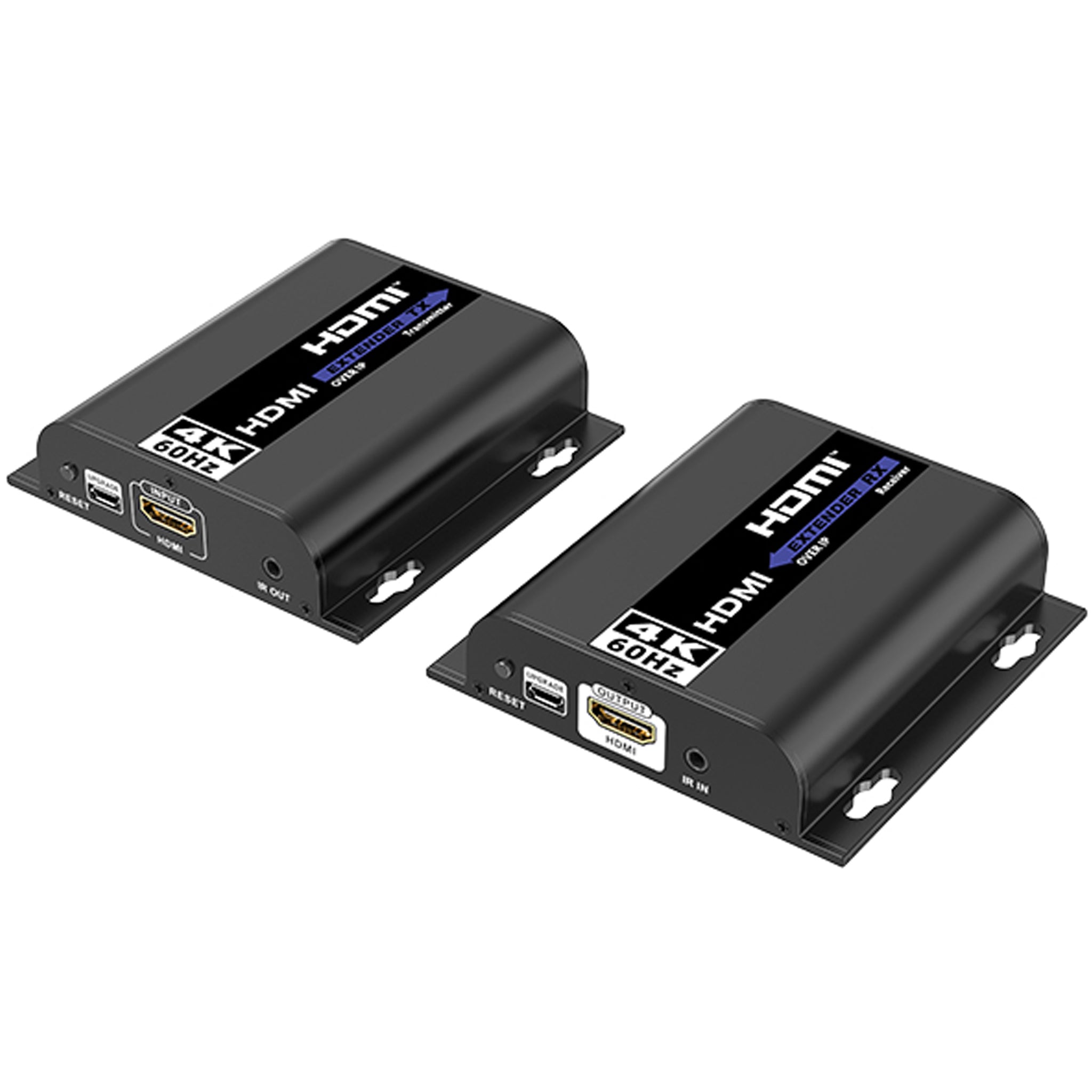

Vetco 4K 60Hz HDMI over IP Extender - TX and RX Pair

Send 4K HDMI Anywhere Over a Single Network Cable

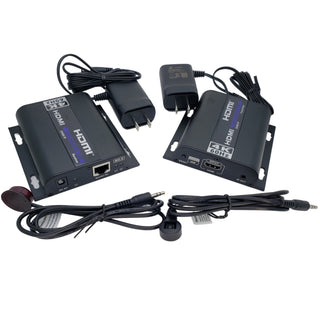

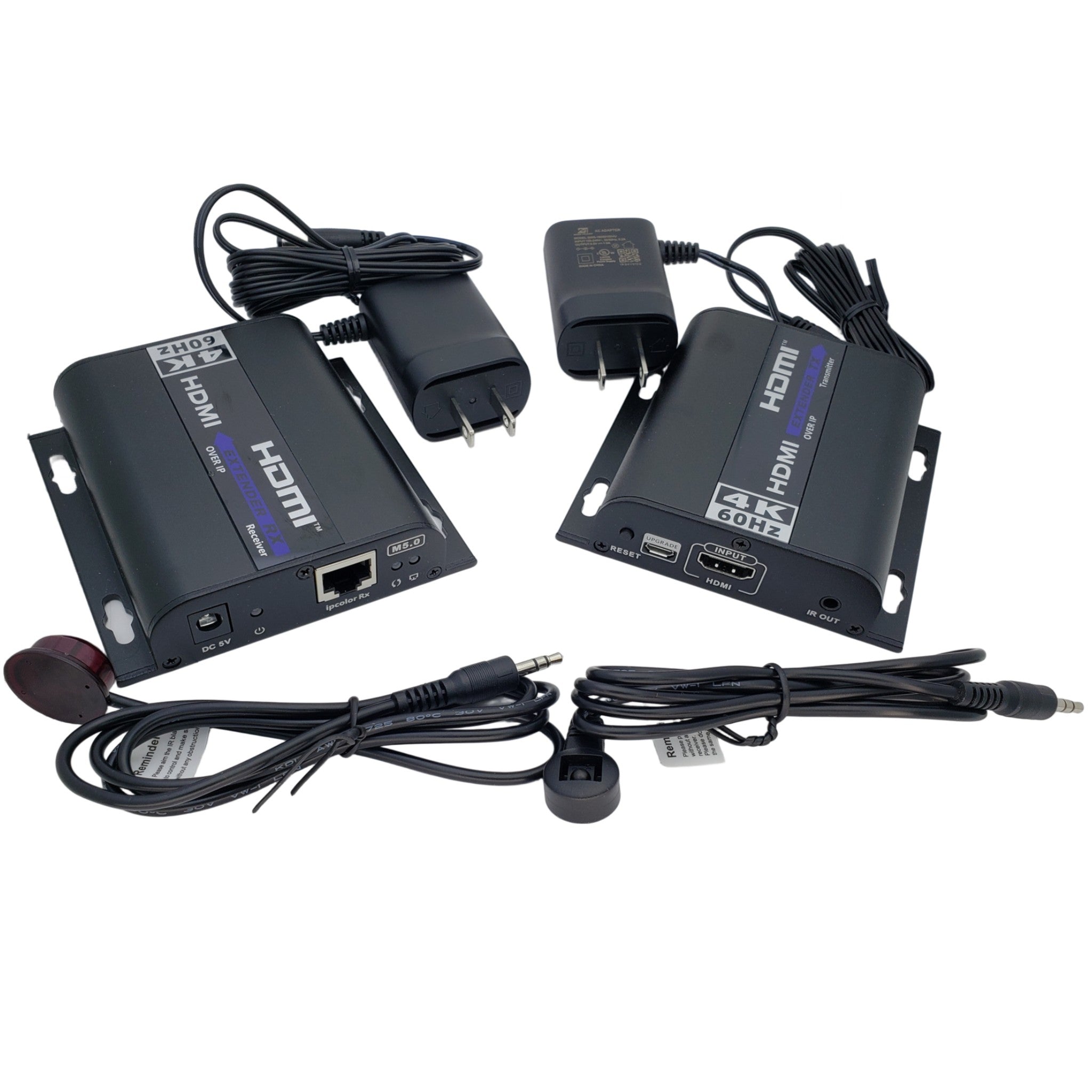

This Vetco HDMI over IP extender lets you send crisp 4K video and audio from one HDMI source to a distant display using ordinary network cable. The kit includes a matched transmitter (TX) and receiver (RX), so you have everything you need to get one screen up and running right out of the box.

Built on ipcolor STREAM technology, it delivers a sharp, low-latency picture that stays smooth for movies, presentations, signage, and live sources.

Long-Distance HDMI Extension Over Cat5e/Cat6

Run a single Cat5e or Cat6 cable and place your display far from the source. This HDMI over Cat6 extender reaches up to 120 meters (about 394 feet) on Cat6, 100 meters on Cat5e, and 80 meters on Cat5. It is a simple way to get HDMI where a normal cable could never reach.

Grows Into a Full HDMI Matrix

Add a gigabit network switch and this HDMI over IP extender becomes a flexible video matrix. It supports one-to-one, one-to-many, many-to-one, and many-to-many setups, up to 256 sources and 256 displays. You can switch which source shows on which screen right from the app, making it easy to expand as your needs grow.

Sharp 4K Picture with Reliable Compatibility

Enjoy resolutions up to 4096 x 2160 at 60Hz, with backward compatibility for 1080p and other common formats. It supports HDMI 2.0 and HDCP 1.4 / 2.2 with an 18 Gbps maximum transfer rate, and passes LPCM 2.0 audio to your display. Bi-directional IR pass-back (20kHz to 60kHz) lets you keep control of your gear from either end.

Rugged and Ready for Everyday Use

Each unit has a durable black aluminum housing and is rated for stable 24/7 operation. Built-in lightning, surge, and ESD protection help keep your equipment safe. Firmware updates are quick and easy through the Micro USB port. Each end powers from an included DC 5V/1A supply.

At a Glance

• Model: VETLKV483-M5.0 (TX and RX pair)
• Resolution: up to 4096 x 2160 at 60Hz, backward compatible
• HDMI 2.0, HDCP 1.4 / 2.2, up to 18 Gbps
• Distance: Cat6 120m / Cat5e 100m / Cat5 80m
• Matrix: up to 256 in x 256 out via gigabit switch
• IR pass-back 20kHz to 60kHz
• Power: DC 5V/1A (TX up to 3.5W, RX up to 2.5W)
• Housing: aluminium, black
• Dimensions: 96.8 x 94 x 23.7 mm (about 3.81 x 3.70 x 0.93 in) each
• Weight: TX 156g, RX 154g

Vetco Electronics: Your Source for HDMI Extenders

Vetco Electronics carries a full range of HDMI over IP extenders and HDMI accessories, each vetted for real-world use and backed by our knowledgeable technical support team. If you have questions about setup, distance, or building a larger HDMI matrix, we are happy to help.
