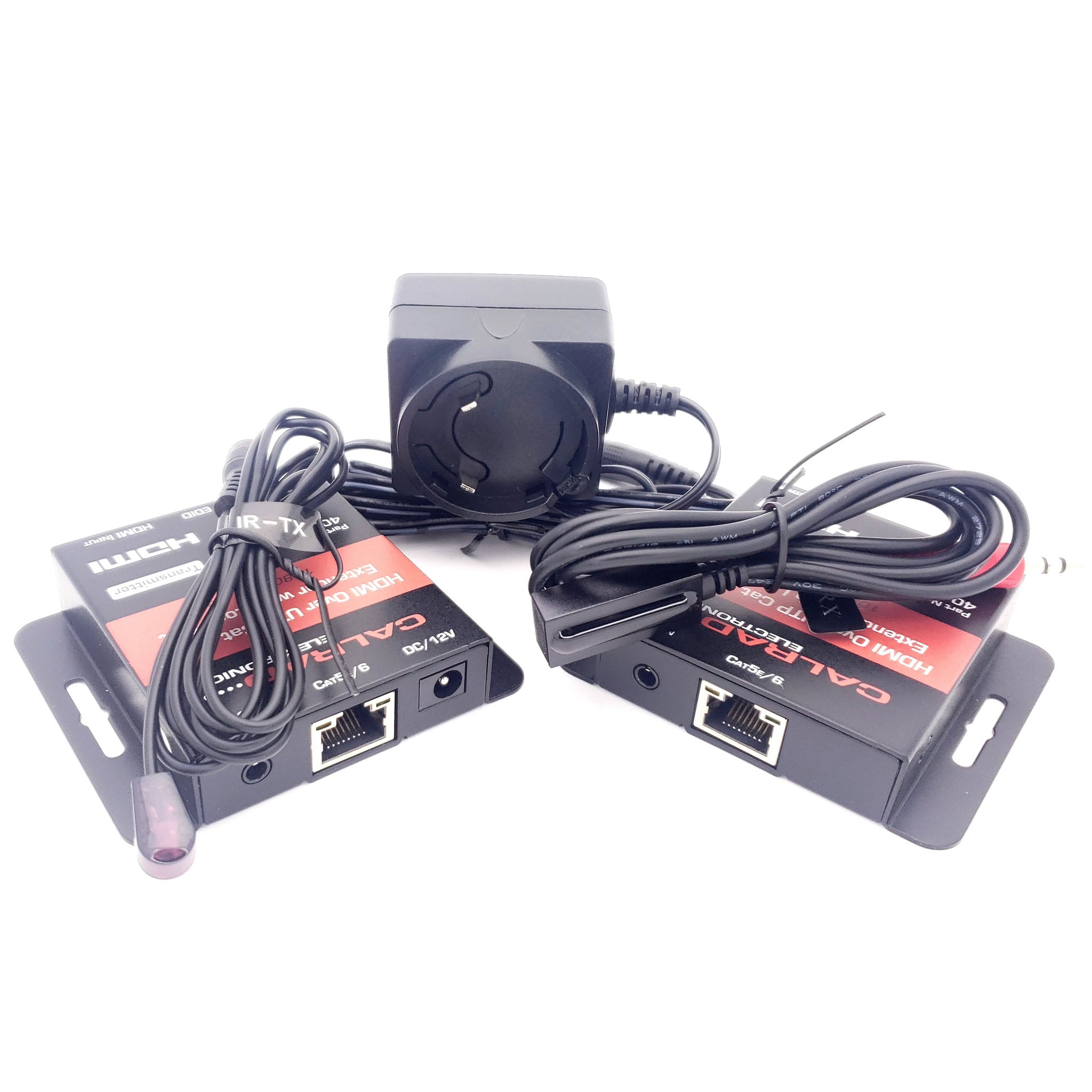

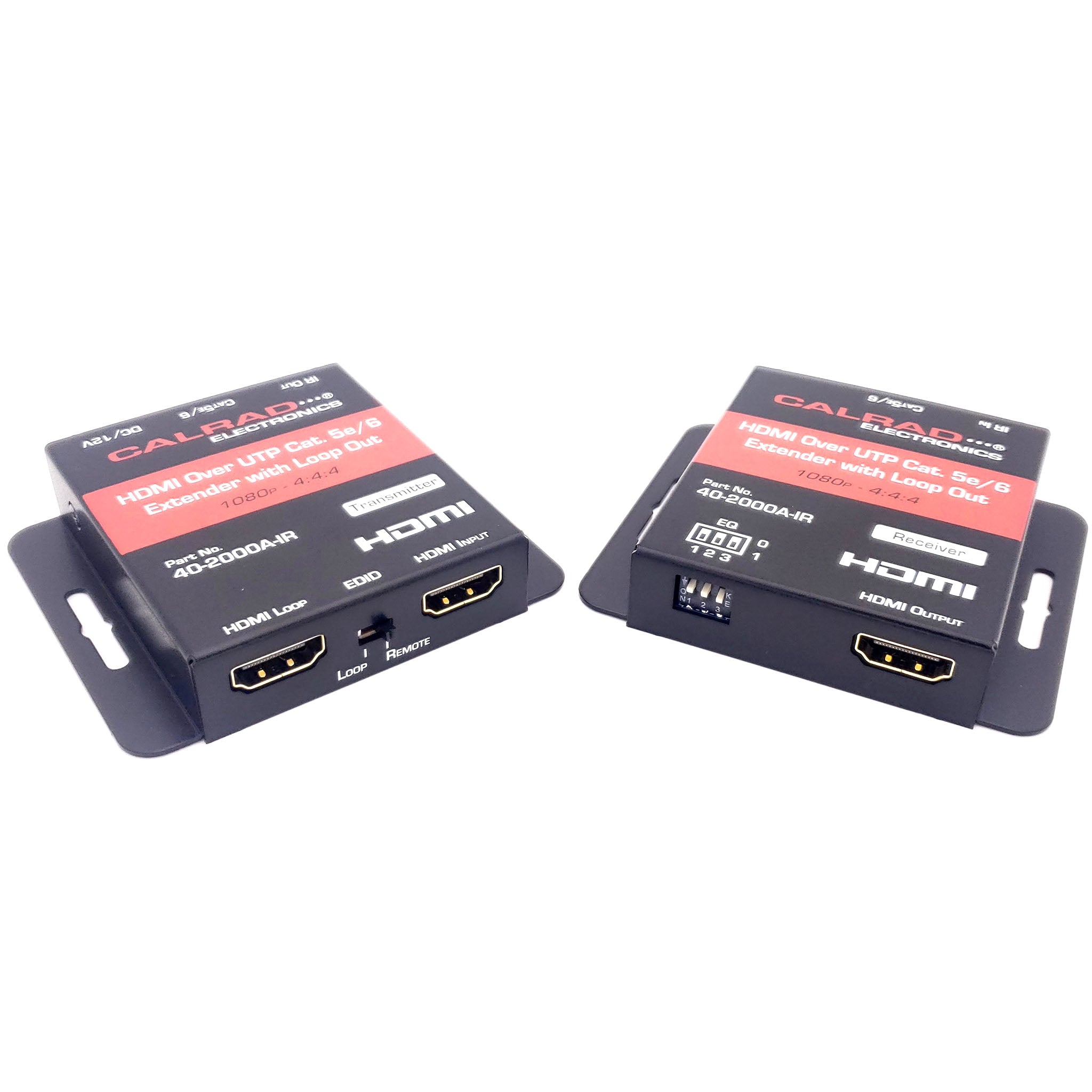

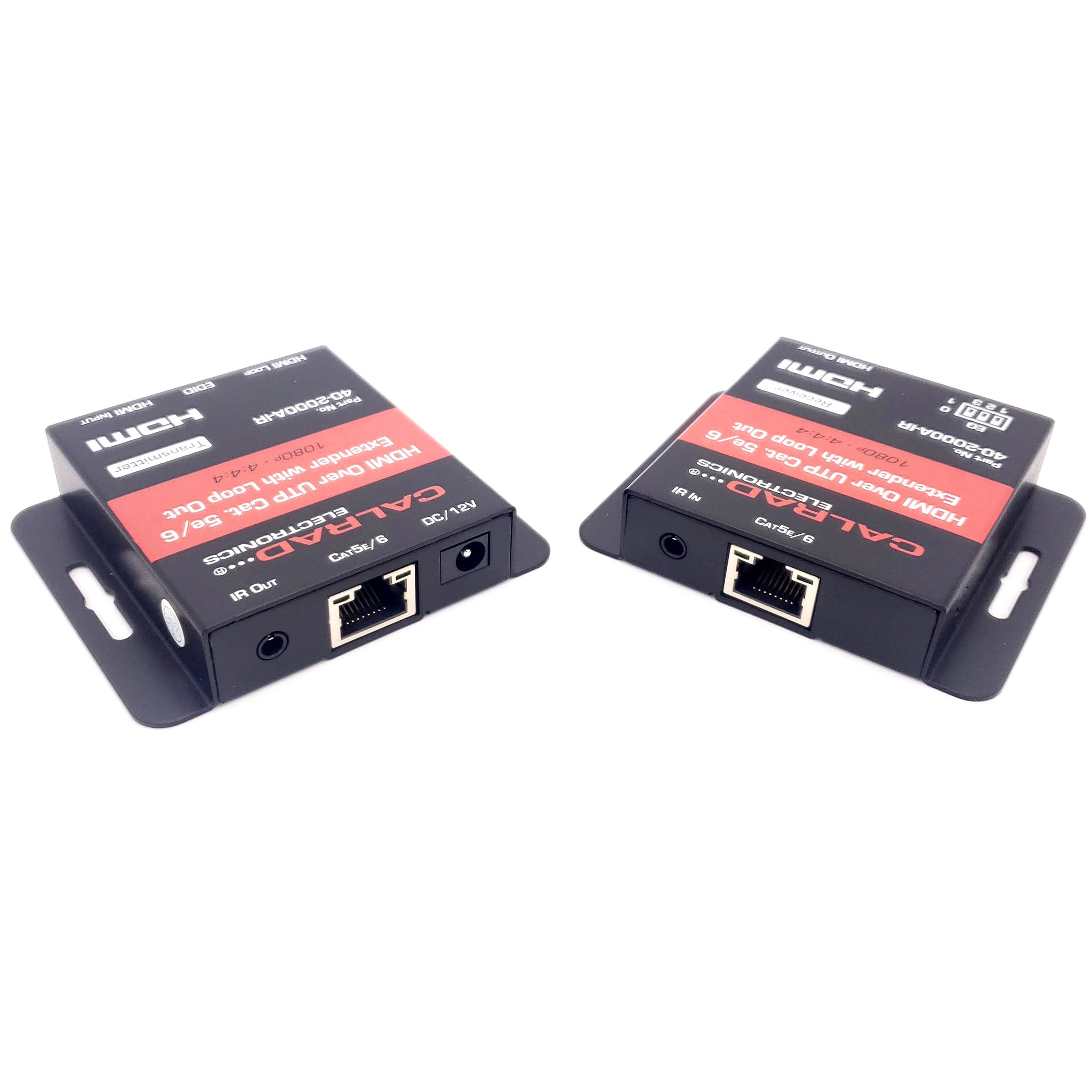

HDMI Extender with IR Over Single Cat5e/6 Cable – 1080p Signal Transmission

Reliable HDMI Extension for Home and Office

Looking for an easy way to extend your HDMI signal across rooms or floors? This HDMI extender with IR uses one Cat5e or Cat6 cable to securely transmit high-definition video and audio up to 1080p. It's the perfect alternative to long HDMI cables, helping you keep your setup simple and clutter-free.

Long-Distance HDMI Over Ethernet Made Simple

With this HDMI extender over Cat5e/6, you get uninterrupted picture and sound for all your devices. Enjoy clear HDTV video—up to 200 feet (62 meters) at 480p–1080i over Cat5e, and up to 110 feet (33 meters) at full 1080p. Using Cat6, you can reach up to 164 feet (50 meters) at 1080p. This is an ideal solution for wall-mount TVs, remote projectors, or setups where HDMI cable routing is a challenge.

Built-In IR Remote Control for Added Convenience

Control your devices from another room thanks to the integrated bidirectional IR extension. The package includes both IR receiver and IR emitter, letting you use your remote as if you were sitting right in front of your source device—even through walls or cabinets.

Technical Specifications

• HDMI Version: 1.4, HDCP compliant
• Supported Formats: 480i/p, 720p, 1080i, 1080p @ 24/50/60Hz
• Cable Requirements: Cat5e or Cat6 UTP (568A or 568B end to end)
• Maximum Distances:
  • Cat5e: Up to 62m (200 ft) at 480i/p, 720p, 1080i
  • Cat5e: Up to 33m (110 ft) at 1080p
  • Cat6: Up to 50m (164 ft) at 1080p
• Audio Support: Dolby TrueHD, DTS-HD Master Audio
• Connectors (each unit): 1x HDMI (19-pin, female), 1x RJ45 (shielded), 1x 2.1mm DC coax power jack, 1x 3.5mm IR RX, 1x 3.5mm IR TX

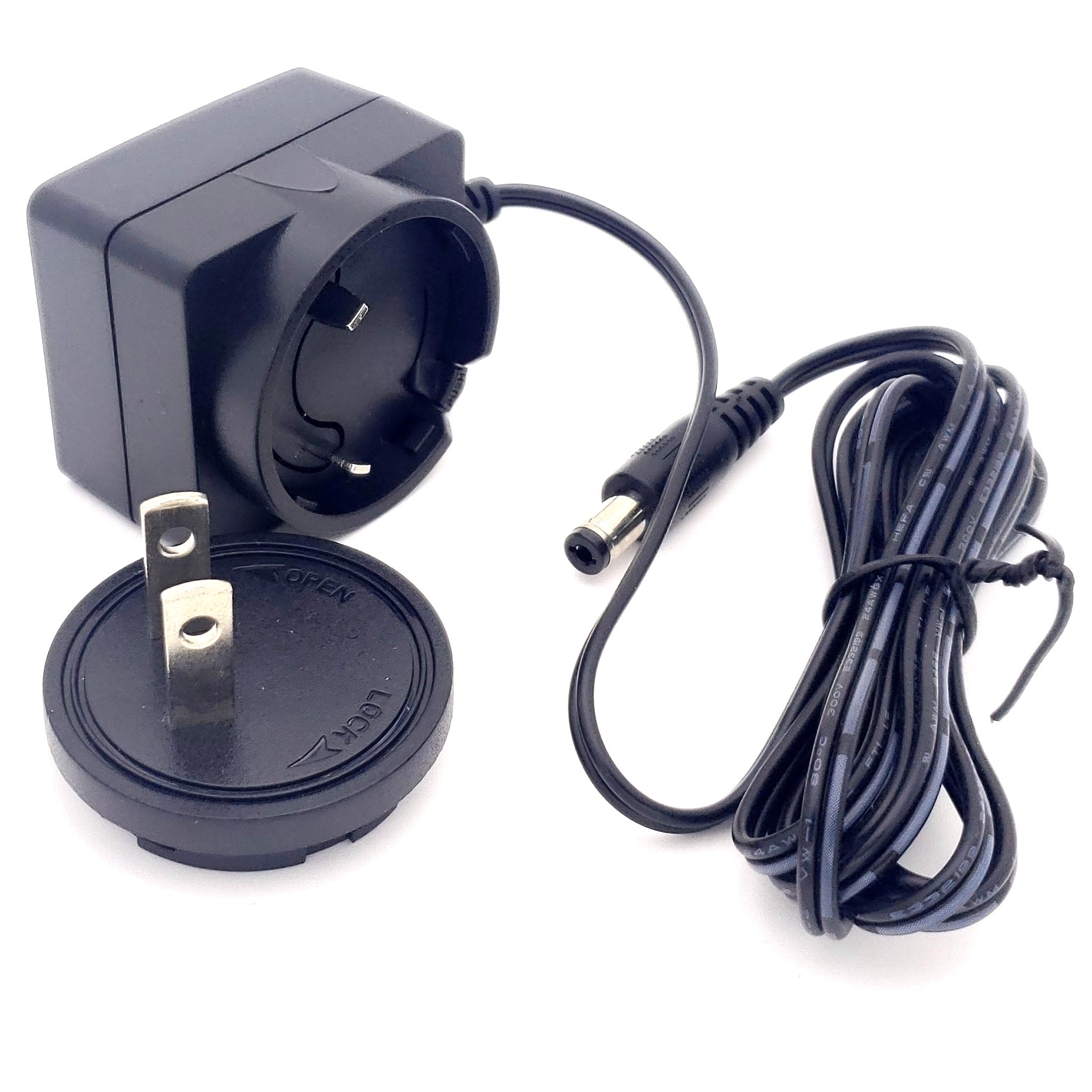

• Power Supply: 2x 12V, 1 Amp regulated (one each for transmitter and receiver)
• Weight: 235g (transmitter), 235g (receiver)
• Dimensions: 3.12" L x 2.68" W x 0.65" H (each unit)
• Chassis Color: Black
• EDID Settings: 2-pin DIP switch (transmitter)
• DIP Settings: 3-pin DIP switch (receiver)

Why Choose This HDMI Extender Over Cat5e/6?

This HDMI signal extender is simple to install and works with most HDTVs, projectors, Blu-ray players, gaming consoles, and streaming devices. Just use your existing Cat5e or Cat6 cables—no special tools or professional installation required. With HDCP compliance, you'll get secure, high-quality streaming for movies, sports, and games.

The Perfect Solution for Home and Business

Enjoy high-quality video and audio with no lag—even in large rooms, offices, or classrooms. Whether you're watching TV in another room or running a meeting, this HDMI extender with IR over single Cat5e/6 cable delivers reliable, full 1080p performance.
