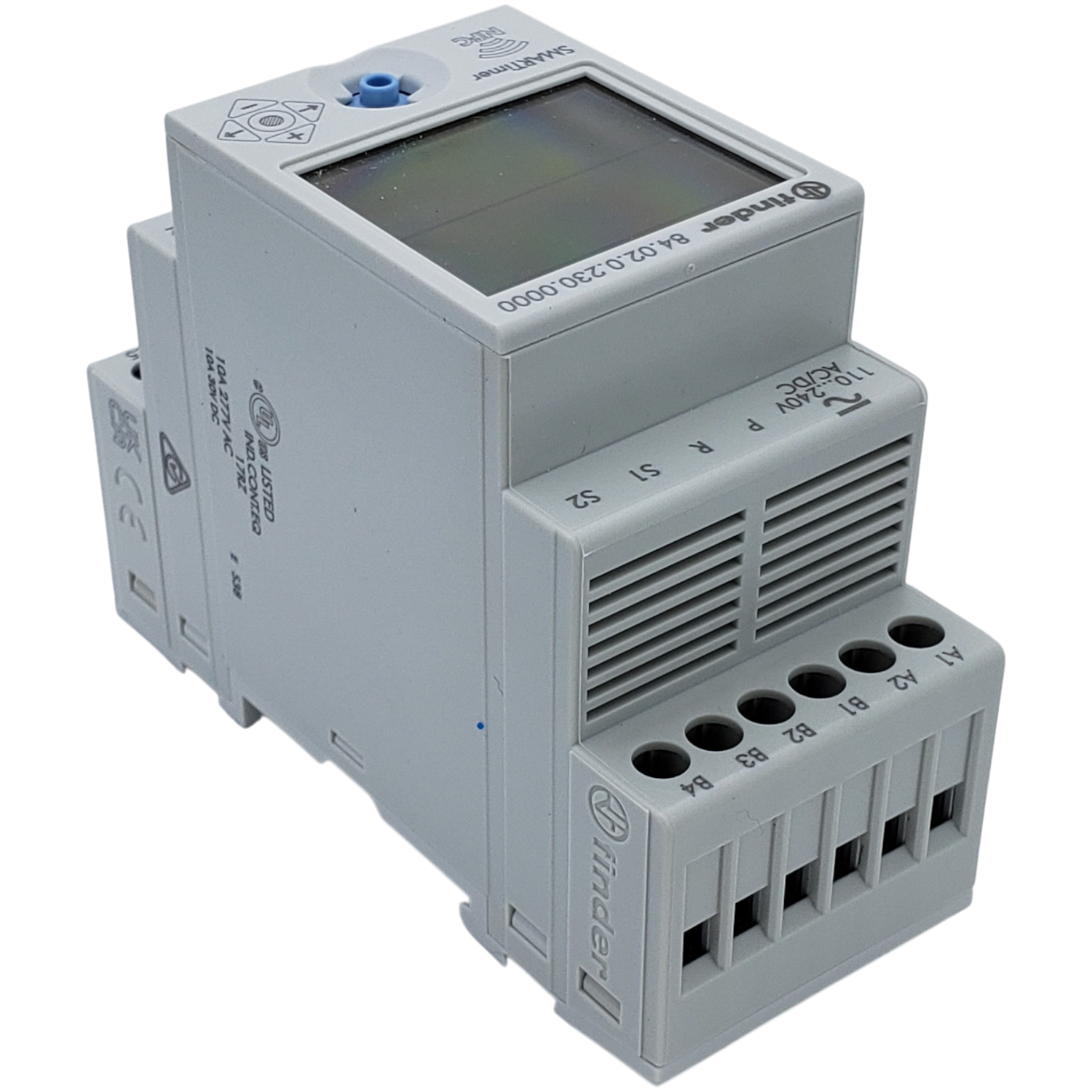

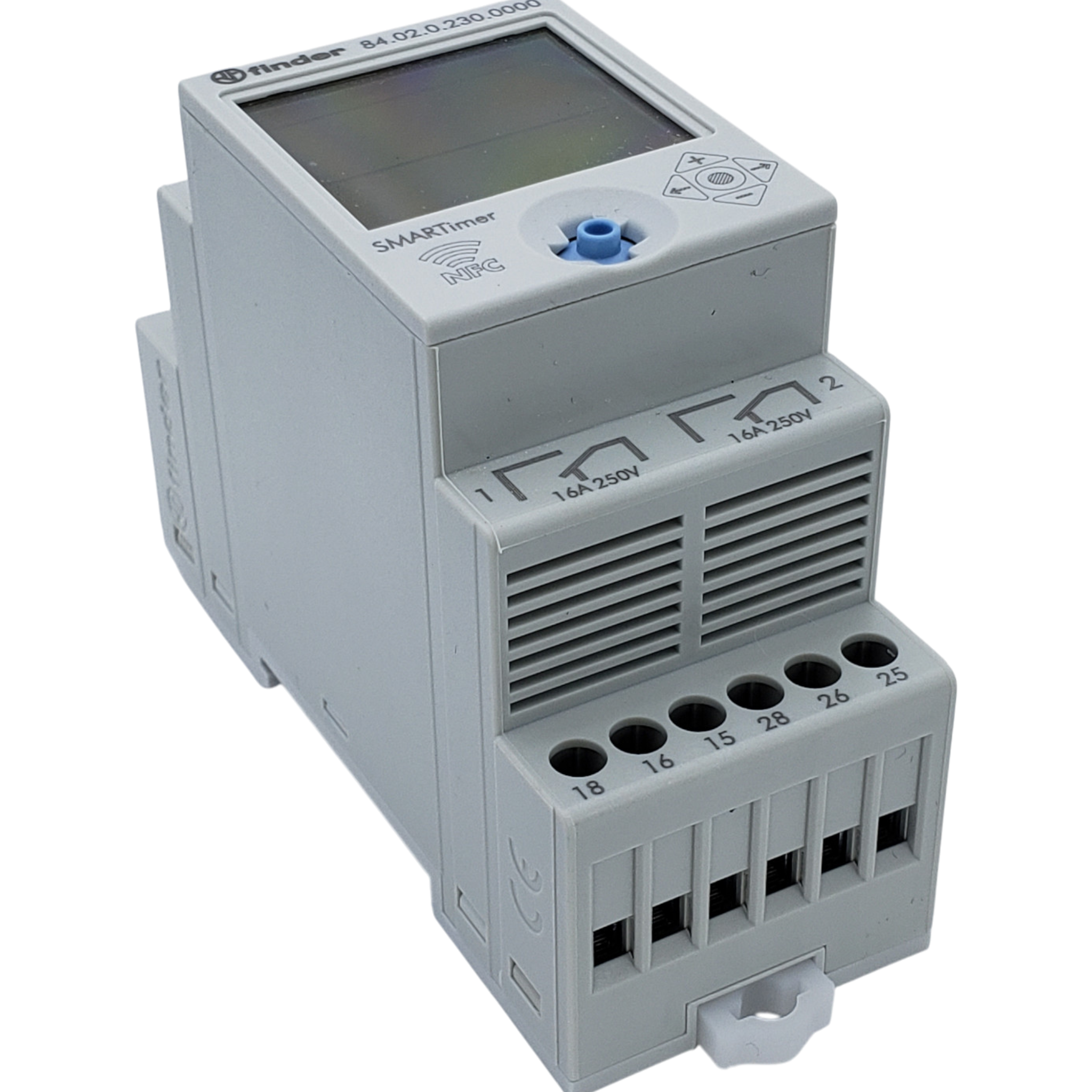

Finder SMARTimer Digital Timer Relay with NFC Programming

Easy-to-Use Digital Timer for Automation and Control

The Finder SMARTimer 84 Series is a powerful and easy-to-use digital timer relay designed for everyday automation tasks. Whether you're controlling lighting, pumps, fans, or small machinery, this programmable timer gives you precise control without complicated setup.

With a wide input range of 110–240V AC/DC and a clear backlit display, it’s built to work in a variety of environments while remaining simple to configure and monitor.

Smartphone Programming with NFC or Manual Control

This digital timer stands out with its built-in NFC programming capability. Using the Finder Toolbox app, you can program, save, and transfer settings directly from your smartphone - no need for complicated menus or guesswork.

Prefer manual control? The SMARTimer also features a joystick interface for “classic” programming, giving you flexibility depending on your workflow or preference.

Two Independent Channels in One Timer

This is a true “2-in-1” timer relay. It includes two completely independent programmable channels, allowing you to control two separate circuits from a single device. Each channel can be configured with its own timing function, helping reduce panel space and simplify wiring.

This makes it ideal for applications like lighting control, pumps, labeling machines, or automated equipment where multiple timed actions are needed.

30 Built-In Timing Functions for Maximum Flexibility

The SMARTimer includes 30 programmable timing functions, giving you full control over how your system behaves. Common modes include:

• ON delay and OFF delay
• Interval timing
• Repeat cycles (asymmetrical and symmetrical)
• Pulse and one-shot timing
• Signal-controlled timing modes

You can even combine and customize functions to create tailored timing behavior for your specific application.

Clear Display and Precise Timing Control

The large backlit display makes it easy to read current settings, timing status, and output conditions at a glance. You can configure time values from as low as 0.1 seconds up to 9999 hours, giving you both fine control and long-duration timing options.

With high accuracy (±0.05%) and reliable repeatability, this timer ensures consistent performance across cycles.

High Power Relay Output for Real-World Loads

This timer relay is built to handle real loads, not just signal-level control. It features two SPDT (changeover) relay outputs rated up to 16A at 250VAC, making it suitable for switching motors, lighting systems, and other electrical devices.

• Contact configuration: 2 x SPDT (2 CO)
• Rated current: 16A
• Maximum switching voltage: 250–400VAC
• AC1 load rating: 4000VA
• Motor rating (230VAC): up to 0.55kW

Designed for Panel Mounting and Everyday Use

The Finder SMARTimer is designed for standard 35mm DIN rail mounting, making it easy to install in control panels and electrical enclosures. It also includes screw terminals that accept 18–14 AWG wire, ensuring secure and reliable connections.

With an operating temperature range of -20°C to +50°C and IP20 protection, it’s built for dependable performance in typical indoor environments.

Product Details

• Model: Finder 84.02.0.230.0000
• Series: 84 SMARTimer
• Supply voltage: 110–240V AC/DC (non-polarized)
• Power consumption: 4VA / 1.6W
• Time range: 0.1 seconds to 9999 hours
• Accuracy: ±0.05%
• Minimum control pulse: 40 ms
• Mounting: 35mm DIN rail
• Country of origin: Italy
• Weight: 0.25 lbs

Why Choose the Finder SMARTimer?

If you need a reliable, flexible, and easy-to-program digital timer relay, the Finder SMARTimer is a strong choice. It combines advanced features like NFC programming and dual-channel control with simple operation, making it suitable for both professionals and users looking for a straightforward automation solution.
