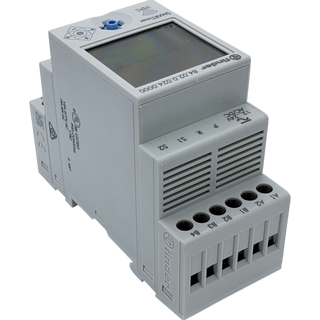

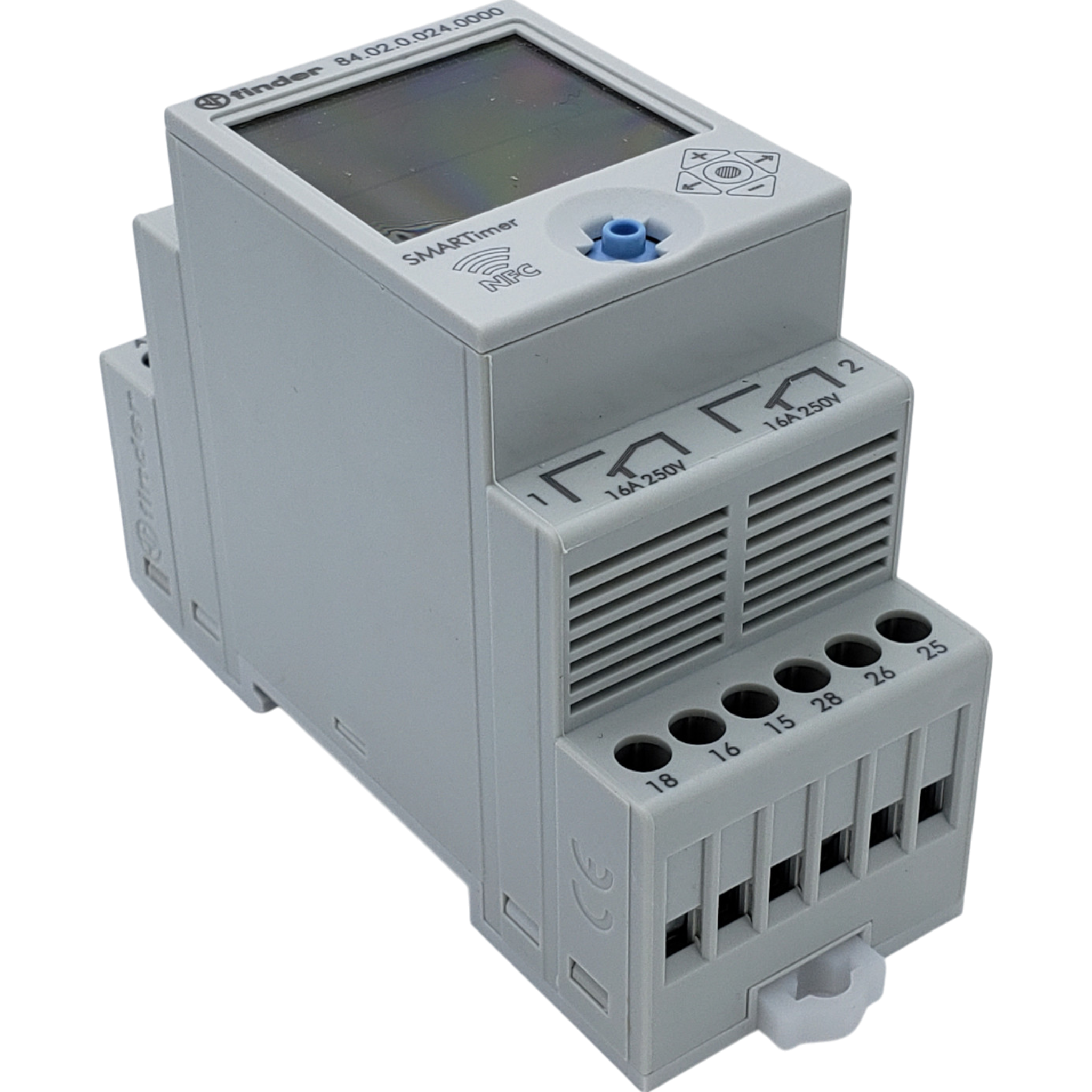

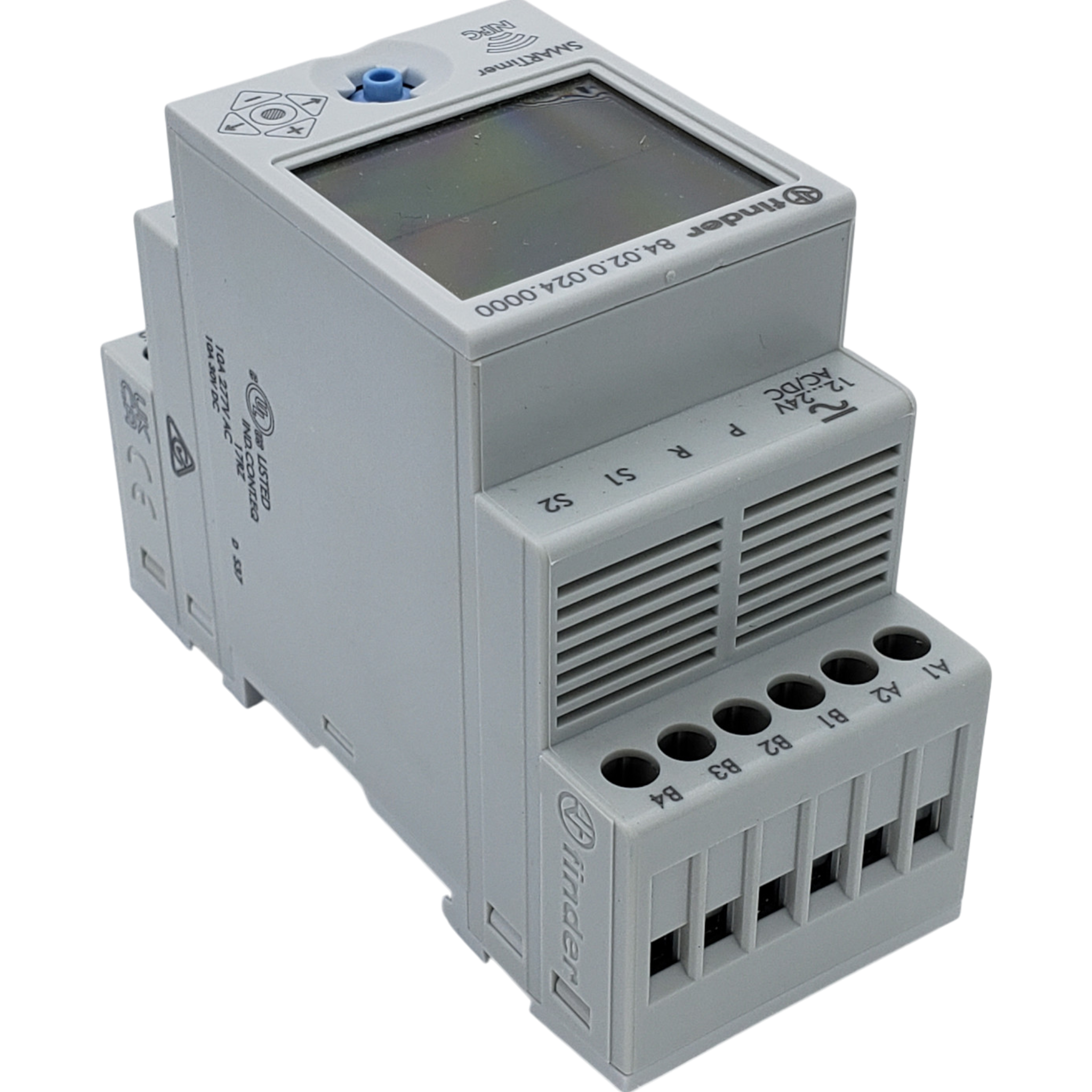

Finder SMARTimer Digital Timer Relay for Easy Automation and Control

Simple and Flexible Digital Timer Relay for Everyday Use

The Finder SMARTimer digital timer relay is an easy-to-use solution for controlling lights, equipment, and automation tasks with precision timing. Whether you're setting up lighting schedules, managing pumps, or automating small systems, this multi-function timer relay gives you reliable control without complicated setup.

Designed for both professionals and DIY users, this digital timer makes it simple to create timed delays, cycles, and switching functions in a compact DIN rail format.

Multi-Function Timer Relay with Powerful Features

This multi-function timer relay supports a wide range of timing modes, including on-delay, off-delay, interval timing, flasher modes, and more. With up to 30 programmable functions per channel, you can customize operation for almost any application - from basic switching to more advanced automation tasks.

The SMARTimer features two independent channels, allowing you to control two separate circuits from a single unit. This makes it ideal for users who want more flexibility without adding extra components.

Easy Programming with Smartphone or Manual Controls

Programming is straightforward with two available methods. Use the built-in joystick for quick setup, or take advantage of smartphone programming via NFC using the Finder Toolbox app. This allows you to create, save, and transfer programs directly from your phone for faster setup and repeatable configurations.

A large backlit display makes it easy to view timing settings, active functions, and system status at a glance during both setup and operation.

Wide Timing Range for Maximum Control

This digital timer relay offers an extremely wide timing range, from as short as 0.1 seconds up to 9999 hours, giving you precise control over short cycles or long-duration automation tasks. Adjustable time units include seconds, minutes, and hours, making it easy to dial in exactly what your project requires.

Reliable Performance for Real-World Applications

The Finder 84 Series SMARTimer is built for consistent operation in a variety of environments, including lighting control, water systems, HVAC setups, workshops, and industrial equipment. It supports both AC and DC supply voltages and can be used in a wide range of installations.

It also supports direct connection to proximity sensors (PNP and NPN) on the 24V version, making it a strong choice for automation and sensor-based control systems.

Key Features of This Digital Timer Relay

• Multi-function timer relay with up to 30 programmable functions per channel
• Two independent timing channels in one device
• Wide timing range from 0.1 seconds to 9999 hours
• Smartphone programming via NFC or manual joystick control
• Large backlit display for easy setup and monitoring
• DIN rail mount design for control panels
• Compatible with PNP and NPN sensors (24V version)

Technical Specifications

• Brand: Finder
• Series: 84 Series SMARTimer
• Manufacturer Part Number: 84.02.0.024.0000
• Function: Multi-function digital timer relay
• Contact Configuration: 2 CO (DPDT)
• Current Rating: 16 A
• Maximum Switching Voltage: 250-400 VAC
• Timing Range: 0.1 seconds to 9999 hours
• Supply Voltage: 12-24V AC/DC or 110-240V AC/DC (depending on model)
• Mounting Type: 35 mm DIN rail
• Termination: Screw terminals
• Operating Temperature: -20 to +50 C
• Protection Rating: IP20
• Accuracy: +/- 0.05%

Versatile Timer for Automation, Lighting, and Control Projects

From simple lighting timers to more advanced automation systems, the Finder SMARTimer digital timer relay delivers flexibility, precision, and ease of use. With dual channels, multiple timing modes, and modern programming options, it’s a reliable choice for anyone looking to add smart timing control to their setup.
