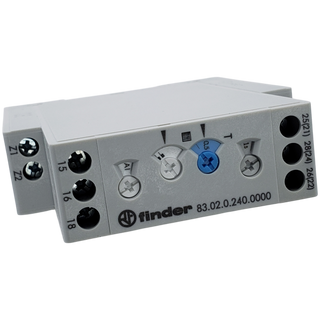

Finder Modular Timer Relay for Easy Control and Automation

Simple and Flexible Timer Relay for Everyday Automation

This Finder modular timer relay is a versatile and easy-to-use solution for controlling timing functions in automation, control panels, and everyday electrical projects. Designed for flexibility, it supports multiple timing modes and a wide adjustable time range, making it ideal for both simple setups and more advanced control tasks.

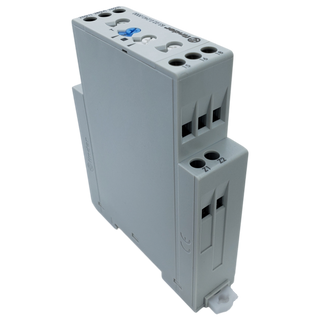

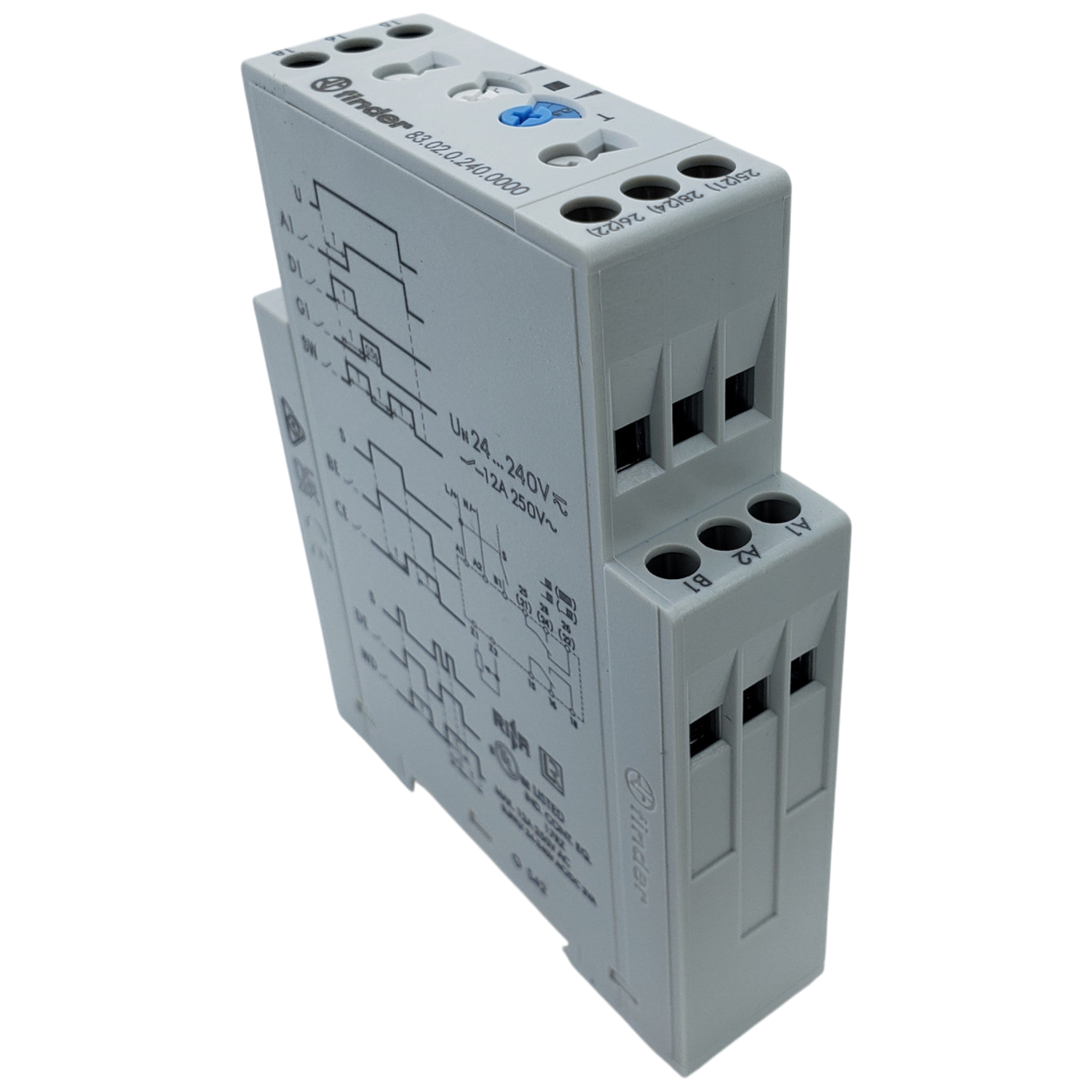

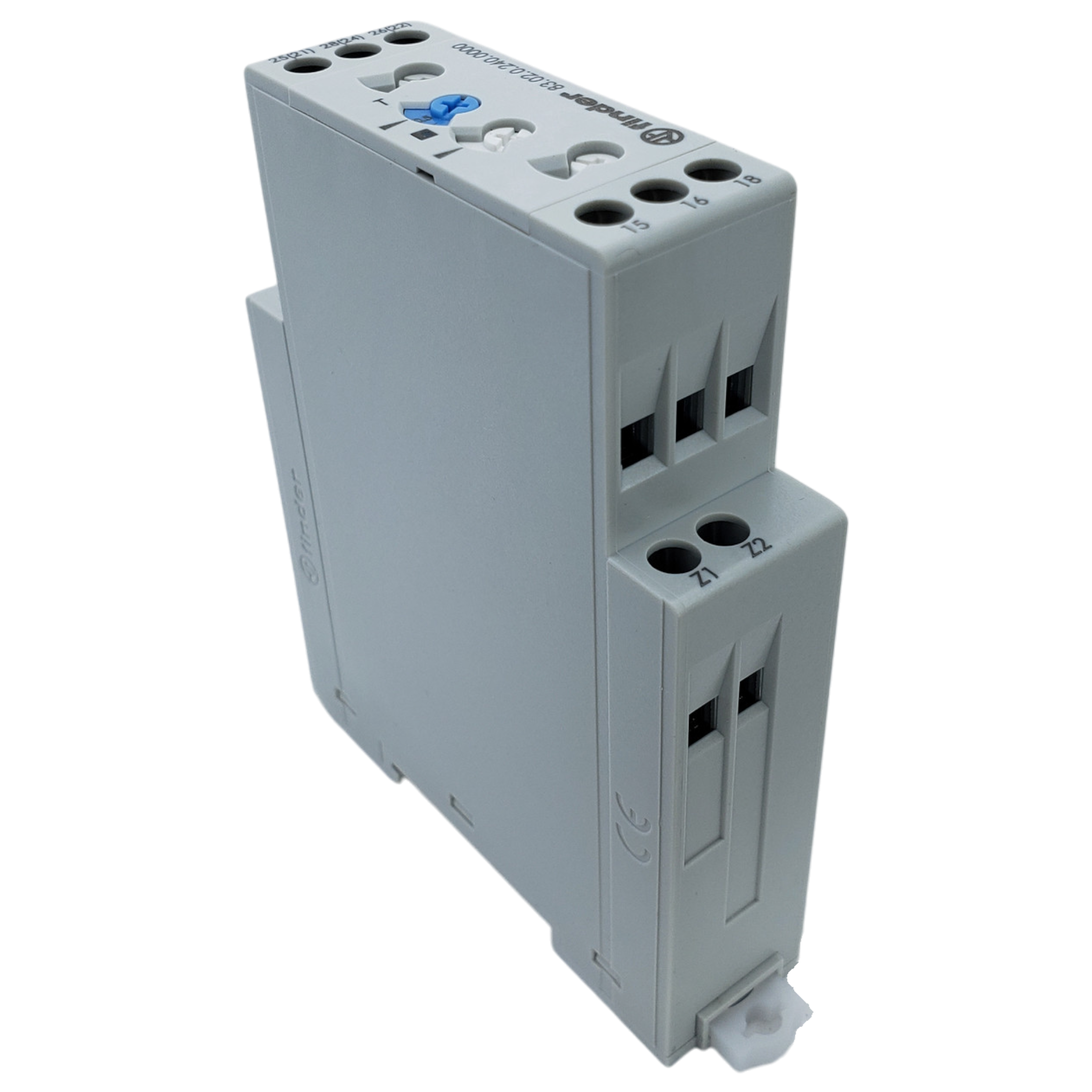

With a compact DIN rail mount design, this timer relay fits neatly into standard electrical enclosures and panels. Whether you're managing lighting delays, motor timing, or general automation, this unit provides reliable and repeatable performance without complicated setup.

Multi-Function Timer Relay with Wide Time Range

This multi-function timer relay supports a wide range of timing operations, giving you the flexibility to handle different applications with a single device. Available functions include ON-delay, OFF-delay, interval timing, pulse delay, symmetrical flashing, and watchdog timing.

The timer offers eight selectable time scales ranging from 0.05 seconds up to 10 days, allowing precise control for both short and long timing cycles. Adjustments can be made easily using onboard controls or an external potentiometer for added convenience.

Easy Setup and User-Friendly Controls

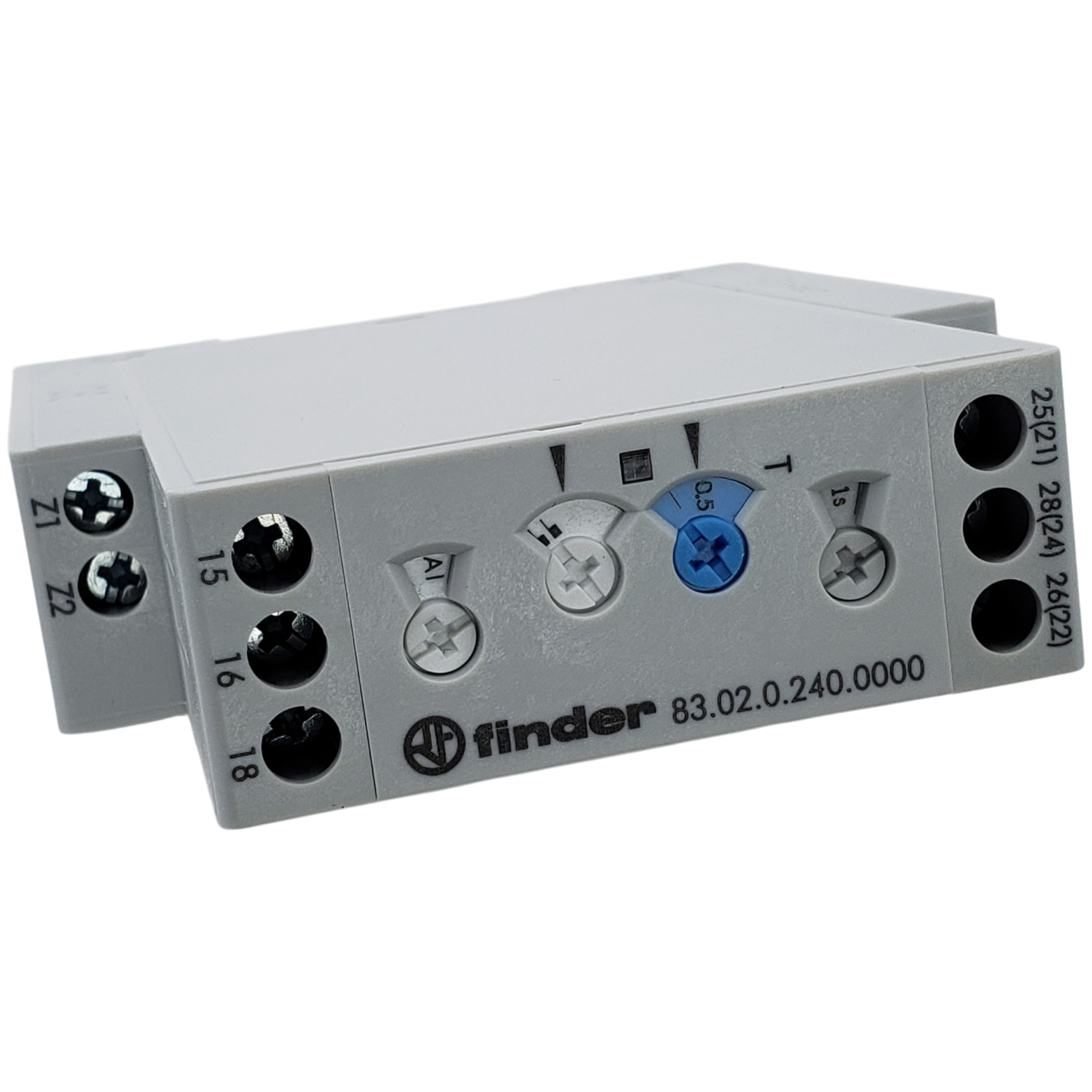

Designed with everyday users in mind, this DIN rail timer relay features simple adjustment controls that can be set using either a flat blade or Phillips screwdriver. The clearly labeled selectors make it easy to configure timing ranges and functions without specialized tools.

The unit also includes flexible contact configurations, allowing either two timed contacts or one timed plus one instantaneous contact depending on your setup needs.

Reliable Performance for Control Panels and DIY Projects

Built for consistent operation, this timer relay features high input and output isolation and stable timing accuracy. It performs reliably across a wide range of conditions, making it suitable for automation systems, process control, and general electrical use.

Its wide multi-voltage support means it can operate on 24 to 240V AC or DC, making it easy to integrate into existing systems without needing additional components.

Technical Specifications

• Series: 83 Series Modular Timer
• Model: 83.02.0.240.0000
• Contact Configuration: 2 CO (DPDT)
• Supply Voltage: 24 to 240V AC/DC
• Operating Range: 16.8 to 265V AC/DC
• Time Range: 0.05 seconds to 10 days (8 selectable scales)
• Timing Functions: AI, DI, GI, SW, BE, CE, DE, WD
• Repeatability: ±1%
• Setting Accuracy: ±5%
• Recovery Time: 200 ms
• Minimum Control Impulse: 50 ms
• Rated Switching Voltage: 250 to 400V AC
• Rated Load (AC1): up to 3000 VA
• Contact Material: AgNi
• Mounting Type: 35mm DIN Rail (EN 60715)
• Connection Type: Screw Terminals
• Ambient Temperature: -20°C to +60°C
• Protection Rating: IP20

Perfect for Automation and Everyday Control Applications

This modular timer relay is a great choice for anyone needing dependable timing control in automation systems, electrical panels, or DIY projects. Its combination of flexibility, ease of use, and wide compatibility makes it a practical solution for both beginners and experienced users.
