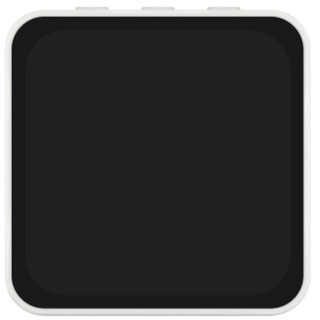

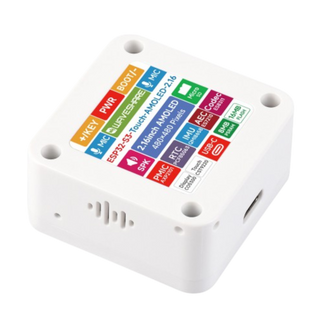

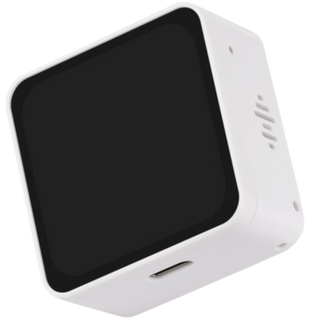

ESP32-S3 2.16 Inch AMOLED Touch Display Development Board

Compact ESP32-S3 AMOLED Display Board for Smart Device Projects

This ESP32-S3 2.16 inch AMOLED display development board is a compact, feature-rich platform for building smart devices, touchscreen interfaces, portable projects, audio-enabled prototypes, and connected IoT applications. Designed by Waveshare, this board combines a bright AMOLED touchscreen, ESP32-S3 wireless performance, onboard sensors, audio hardware, power management, and battery support in one small development board.

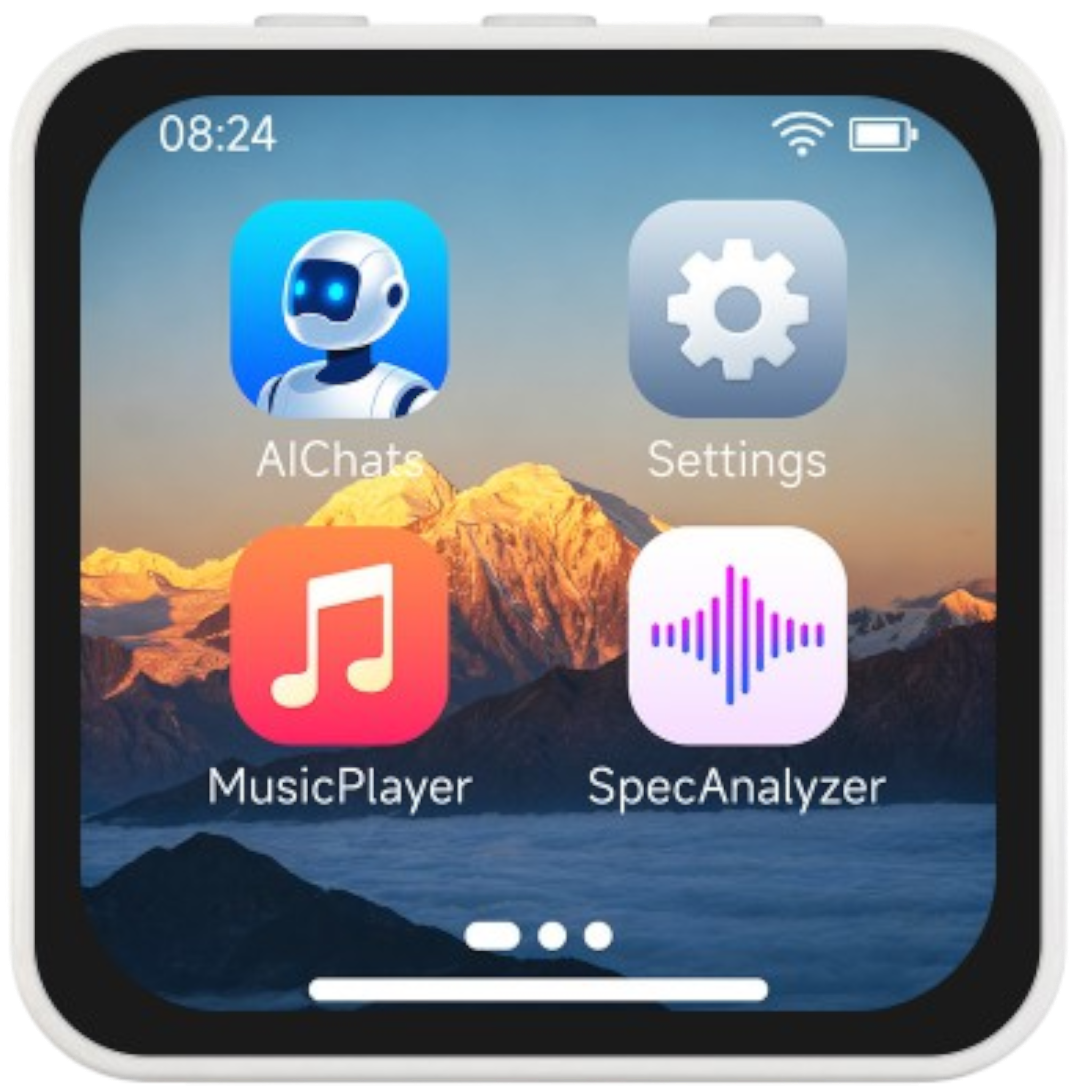

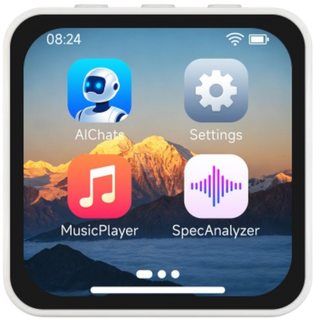

For makers, students, hobbyists, and developers, this board makes it easier to start building polished projects without wiring together a separate display, touch controller, microphone board, battery charger, IMU, and speaker. It comes with a preinstalled OS/demo package, so it is ready to run out of the box and gives you a quick starting point for testing the display and onboard features.

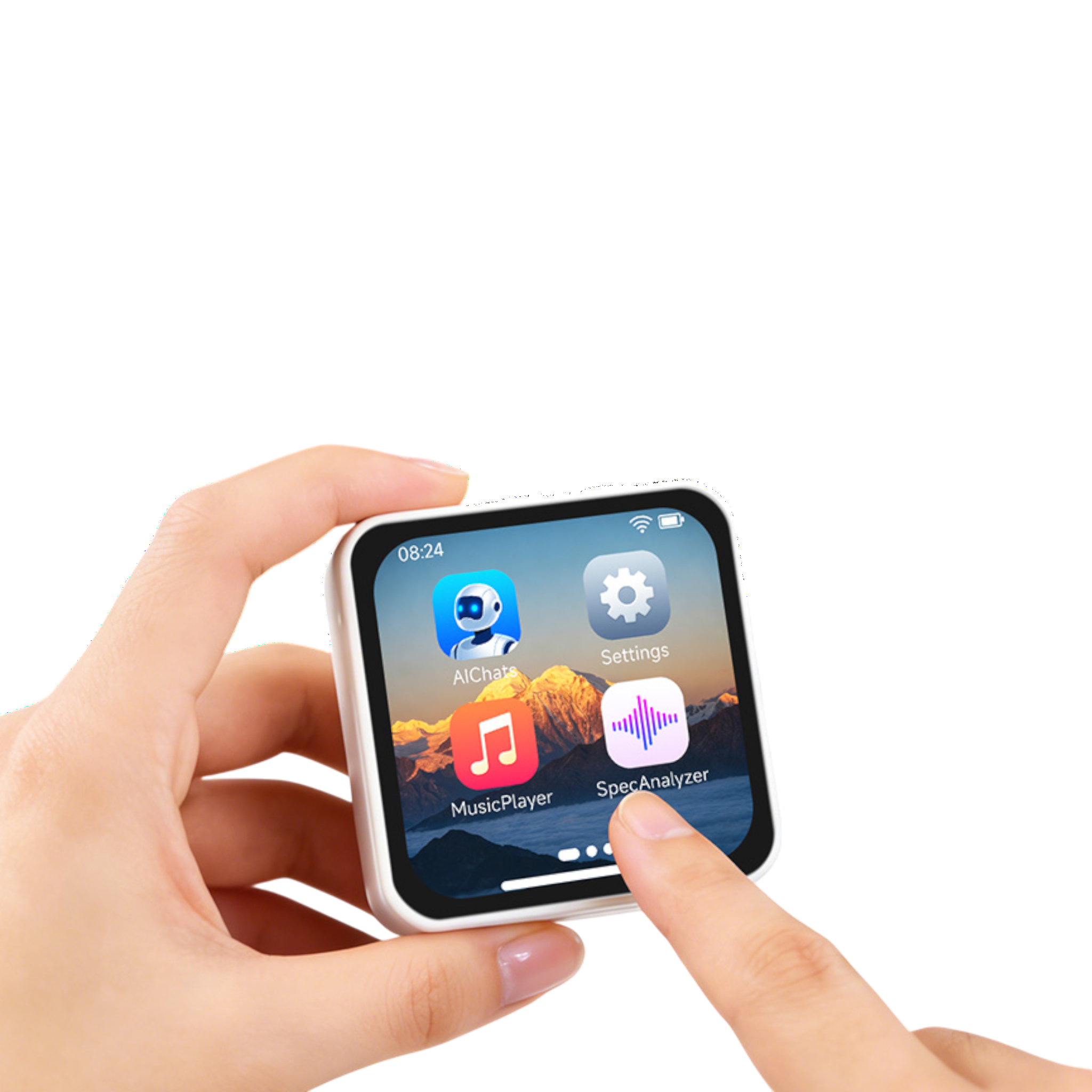

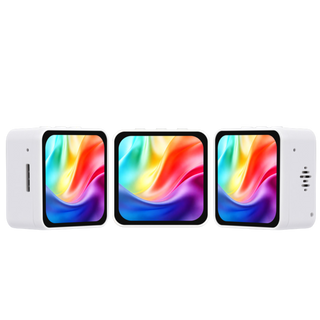

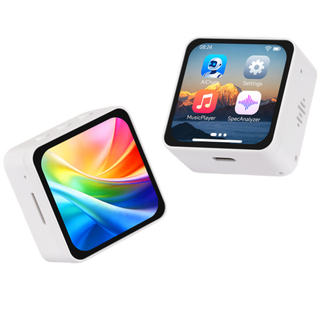

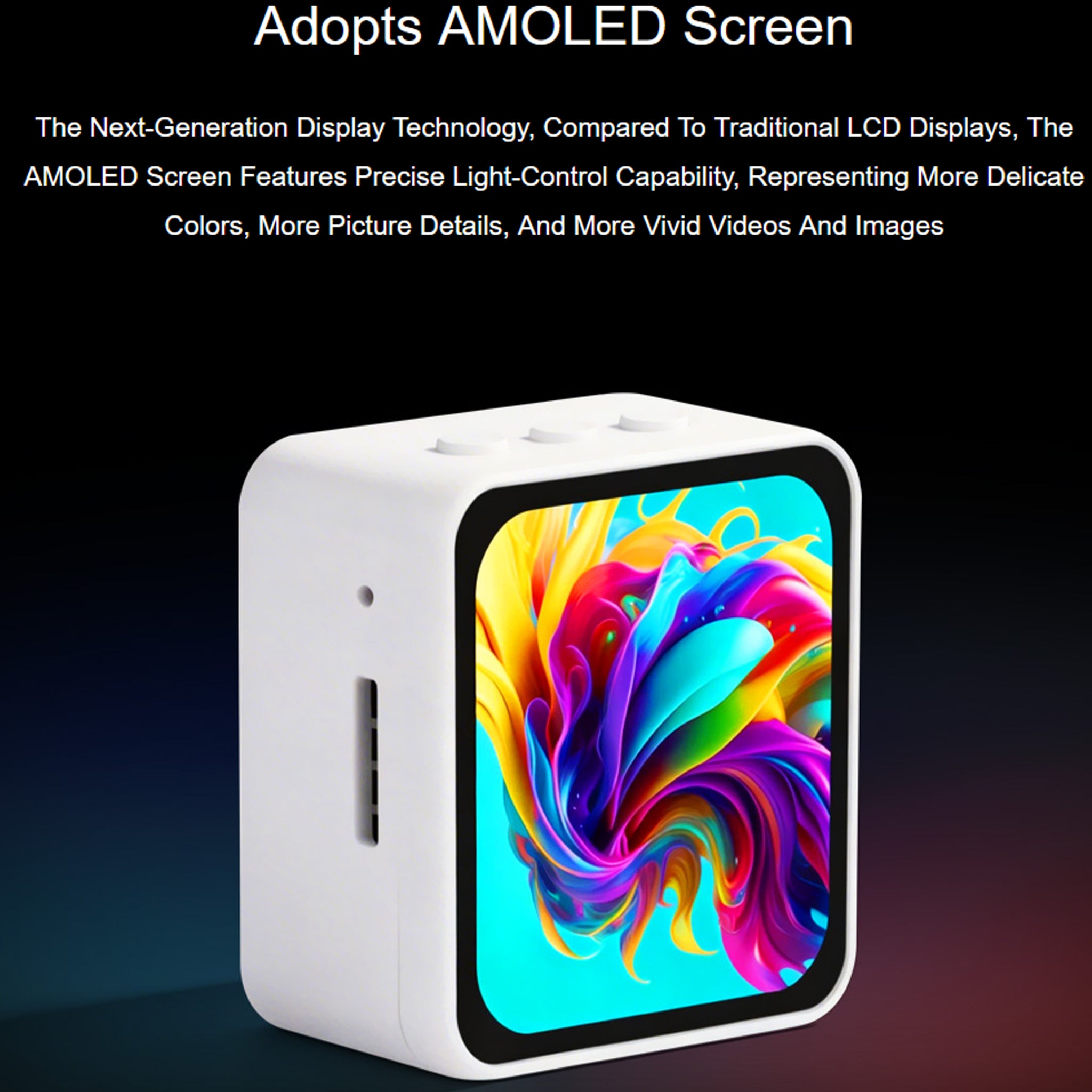

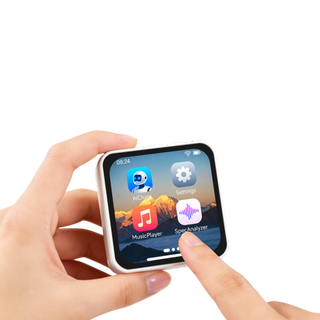

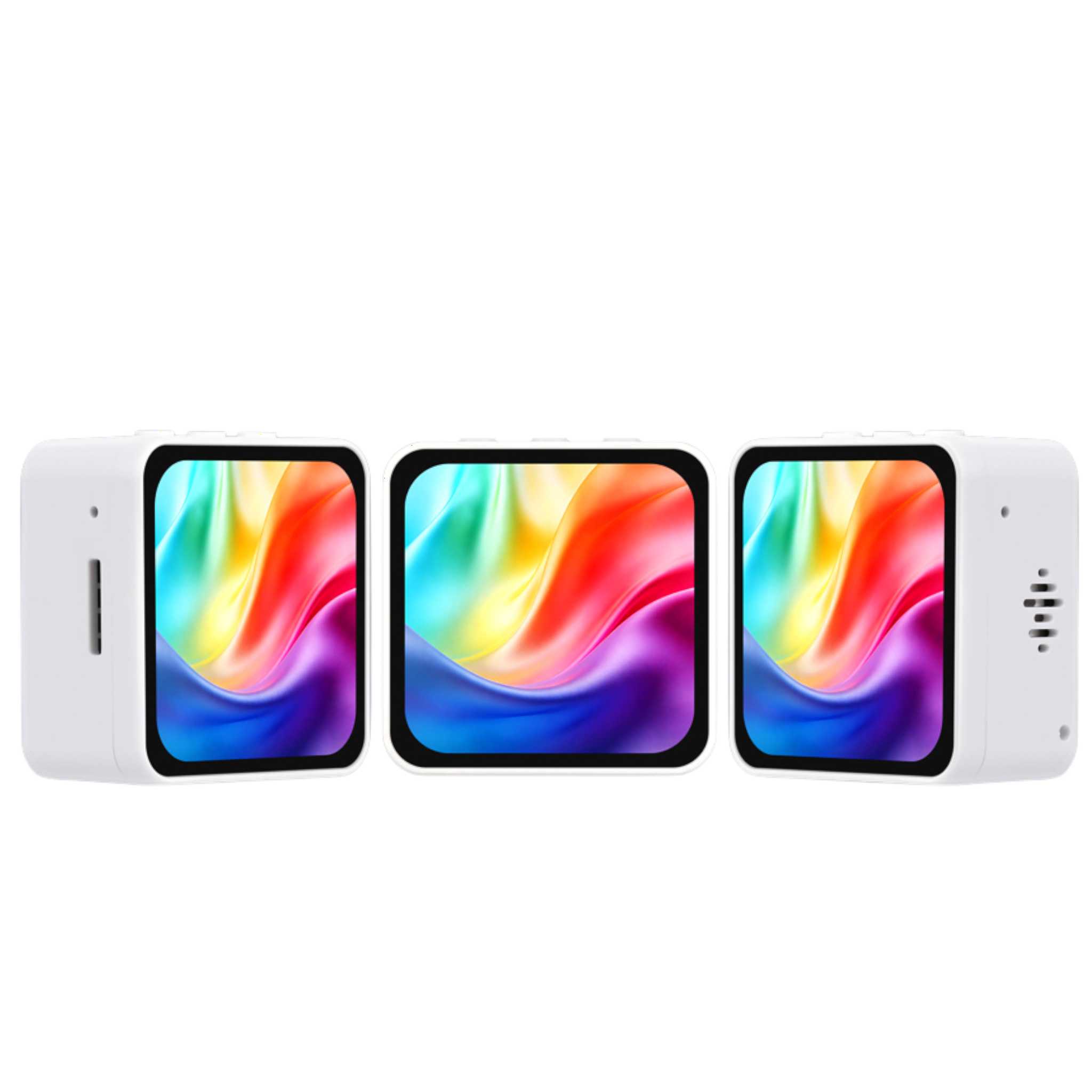

Bright 2.16 Inch AMOLED Touch Display

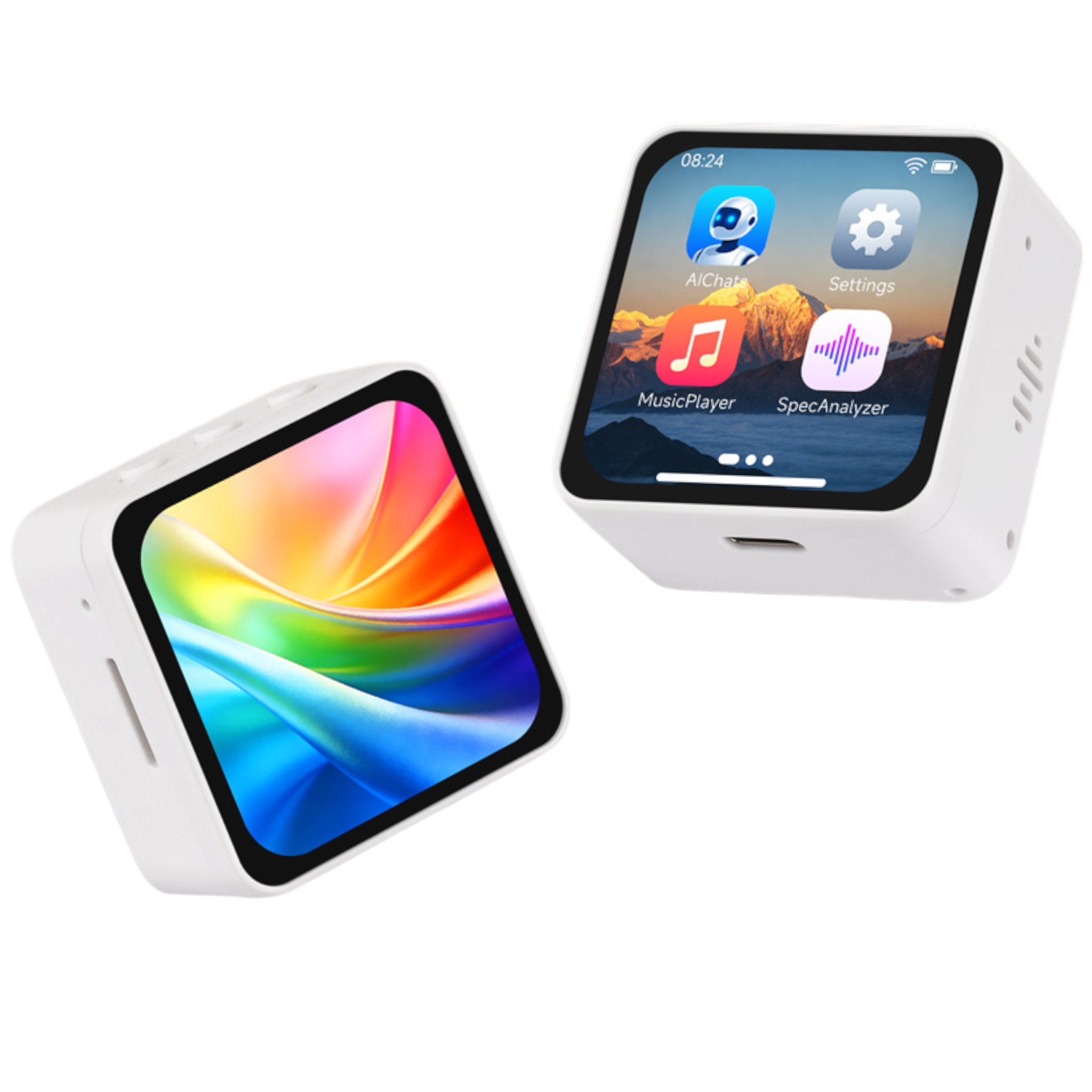

The onboard 2.16 inch AMOLED capacitive touch display gives your project a sharp, colorful user interface in a small package. With a 480 × 480 pixel resolution, 16.7 million colors, 600 cd/㎡ brightness, and a 100000:1 contrast ratio, this ESP32-S3 AMOLED display board is well suited for dashboards, control panels, wearable-style interfaces, smart home controls, portable tools, and interactive demos.

Compared to many traditional LCD displays, the AMOLED screen provides rich colors, deep contrast, fast response, a thinner design, and lower power consumption. The 178° wide viewing angle helps keep text, icons, graphics, videos, and images clear from different viewing positions.

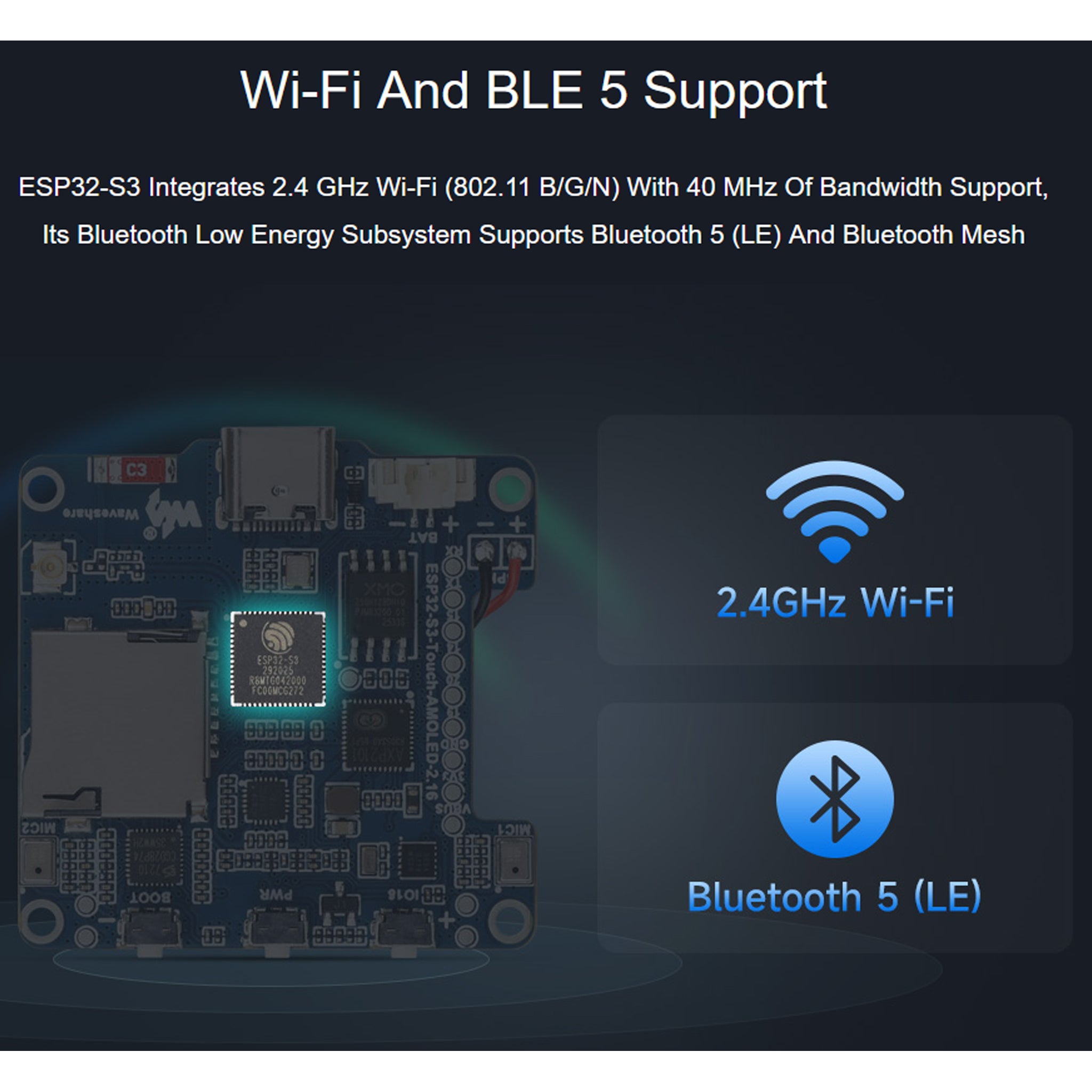

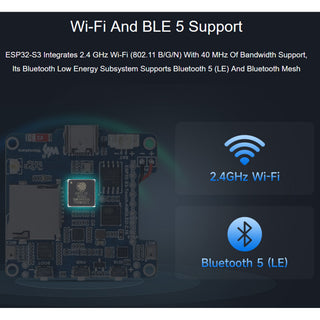

Easy Wireless Development with Wi-Fi and BLE 5

Powered by the ESP32-S3R8, this board supports 2.4GHz Wi-Fi 802.11 b/g/n and Bluetooth 5 Low Energy. That makes it a practical choice for connected projects such as smart controls, wireless sensors, BLE accessories, handheld interfaces, data displays, and IoT devices.

The ESP32-S3 integrates 2.4GHz Wi-Fi with 40MHz bandwidth support, Bluetooth 5 LE, and Bluetooth Mesh support. An onboard antenna is included, and an IPEX 1 antenna connector can be enabled by resoldering an onboard resistor for applications that need an external antenna option.

ESP32-S3 Performance for Touchscreen Projects

The ESP32-S3R8 uses an Xtensa 32-bit LX7 dual-core processor running up to 240MHz. It includes built-in 512KB SRAM, 384KB ROM, onboard 8MB PSRAM, and external 16MB NOR flash, giving you enough memory and processing power for display graphics, touch input, audio capture, sensor readings, and wireless communication.

The board supports development with ESP-IDF and Arduino IDE, making it approachable for beginners while still giving advanced users access to deeper ESP32-S3 features. Waveshare also provides tutorials and documentation through the product wiki to help speed up learning, testing, and secondary development.

Dual Microphones, Speaker, and Audio Features

This ESP32-S3 touchscreen development board includes dual microphones, a built-in speaker, a low-power audio codec, and an onboard echo cancellation circuit. These features make it useful for voice control projects, speech recognition experiments, wake-word testing, smart assistants, audio interfaces, and interactive displays.

The dual microphone array is designed to improve audio capture quality and is suitable for near-field and far-field wake-up applications. For projects that need both a visual interface and audio interaction, this board gives you a strong starting platform without needing several extra modules.

Motion Sensing, RTC, and Expandable Storage

The onboard QMI8658 6-axis IMU includes a 3-axis accelerometer and 3-axis gyroscope. This allows the board to detect motion, gestures, orientation changes, and step counting, depending on your software design.

A real time clock, or RTC, is also included for time-based functions. The onboard Micro SD / TF card slot gives you a convenient way to add storage for images, files, logs, configuration data, or media. Micro SD card is not included.

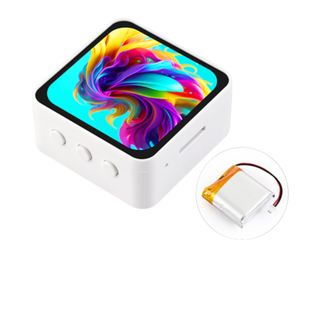

Battery Ready for Portable ESP32 Projects

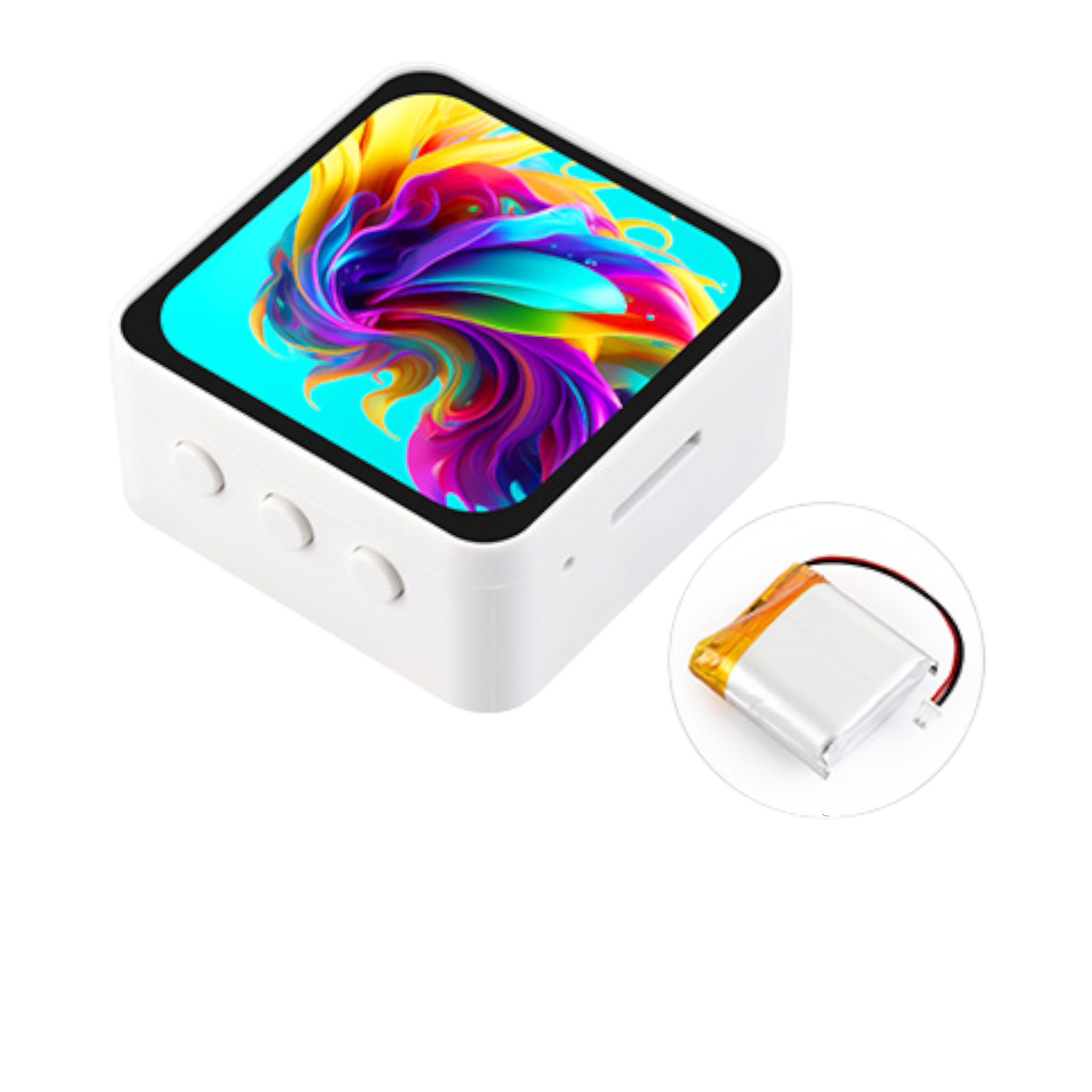

The board includes a 3.7V LiPo battery rated at 1000mAh, making it easier to build portable projects right away. It also has an onboard MX1.25 2-pin lithium battery header that supports charging and discharging for a 3.7V lithium battery.

Power is managed by the AXP2101 power management IC, which supports multiple voltage outputs, battery charging, battery management, and battery life optimization. The Type-C port improves device compatibility and is used for programming and log printing through the ESP32-S3 USB connection.

Built-In Buttons for Control and Development

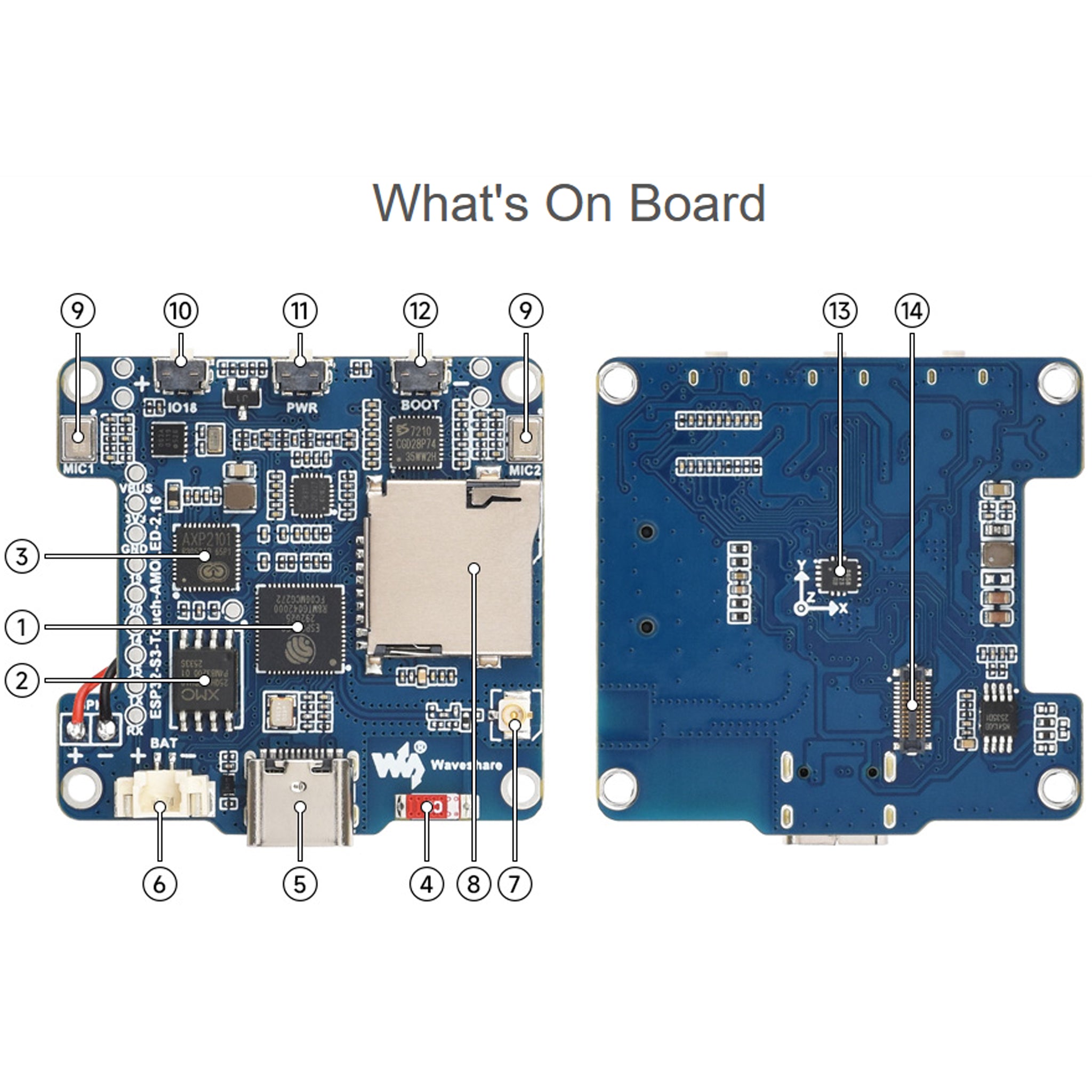

Onboard buttons make the board easier to use during testing and product development. The PWR button controls system power and can support custom functions. The BOOT button is used for startup and debugging. A GPIO 18 button is also included and can be programmed for custom input functions.

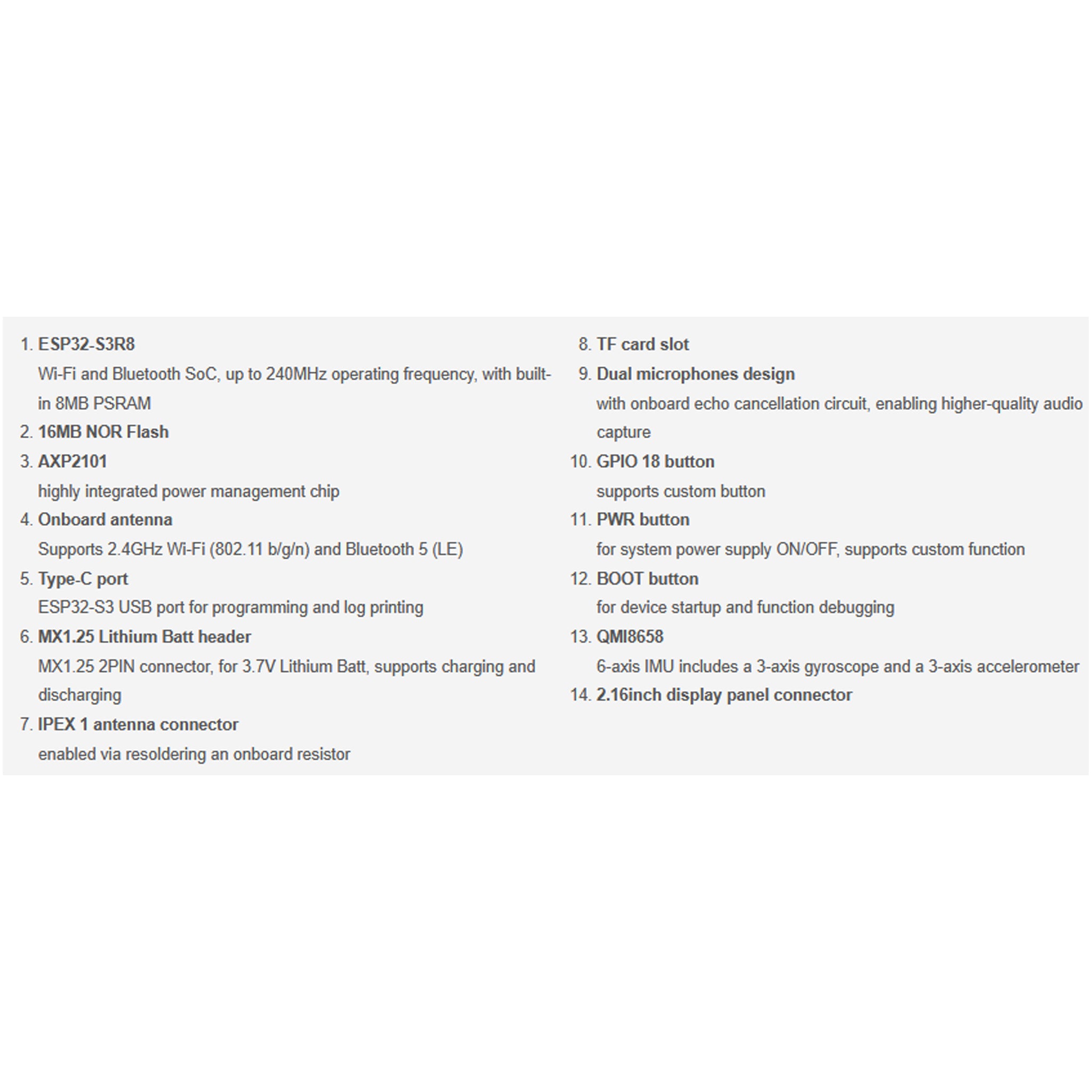

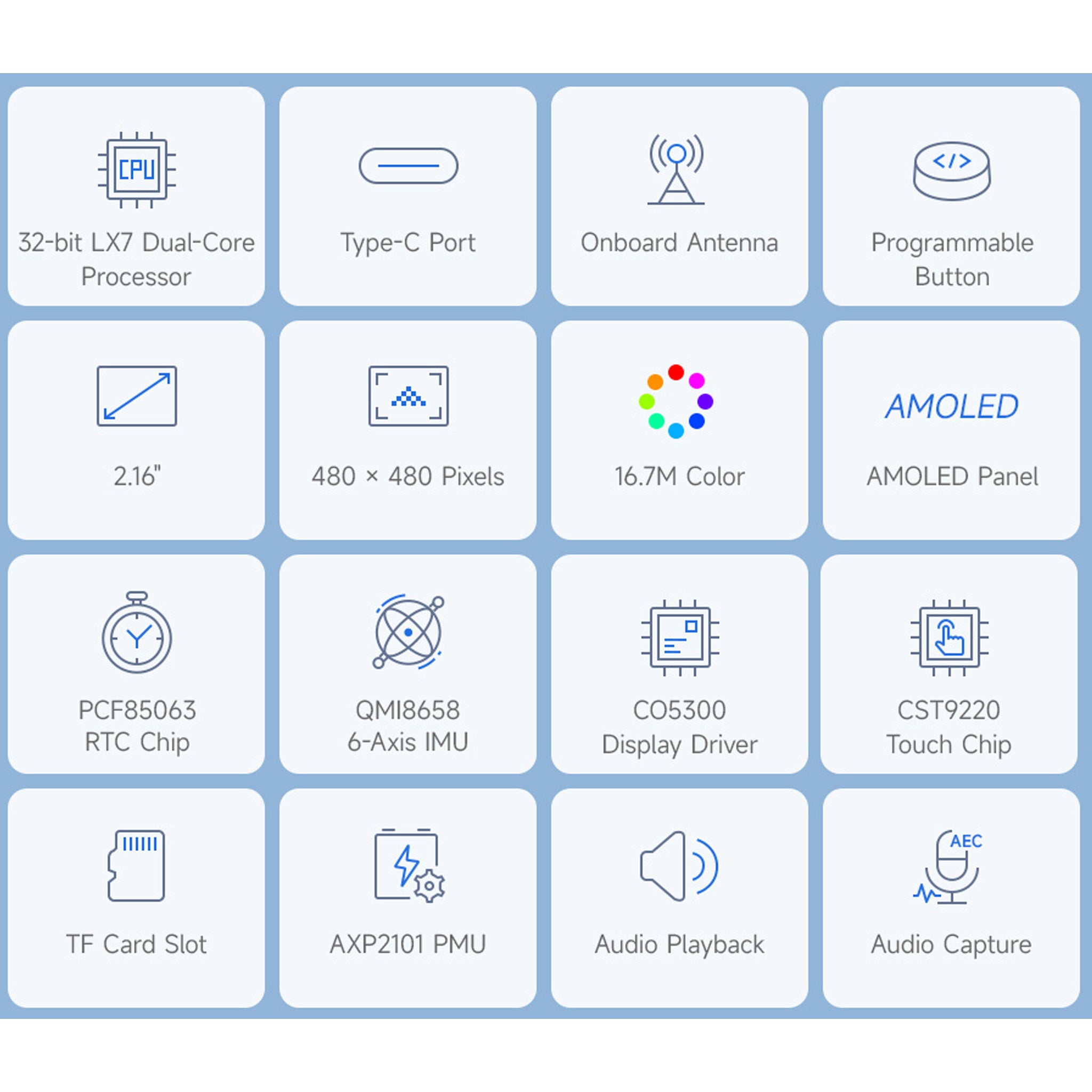

Technical Specifications

Common Uses for This ESP32-S3 Touchscreen Board

• Smart home control panels
• Portable IoT displays
• Wireless sensor dashboards
• Voice control and speech recognition projects
• BLE and Wi-Fi connected devices
• Touchscreen menu interfaces
• Wearable-style prototypes
• Motion sensing and gesture projects
• Battery-powered display projects
• Arduino and ESP-IDF learning projects

Why Buy This ESP32-S3 AMOLED Development Board from Vetco Electronics?

Vetco carries this ESP32-S3 AMOLED display development board because it gives makers and developers a lot of useful hardware in one compact package. The bright touch display, Wi-Fi, BLE 5, dual microphones, speaker, IMU, RTC, battery support, and Micro SD slot make it a strong choice for building real projects instead of just simple test circuits.

If you want an ESP32-S3 touchscreen board that is easier to start with and flexible enough for more advanced ideas, this Waveshare board is a practical option. It is ready for Arduino IDE or ESP-IDF development, includes a preinstalled demo, and gives you the hardware needed for polished smart device prototypes, interactive displays, and portable connected projects.

NOTICE: Can not ship AIR due to containing LiPo battery.
