ESP32 LCD Computer with 1.47" Touchscreen LCD, WiFi 6, and BLE 5

Compact ESP32 Touchscreen Development Board for Smart Projects

This ESP32 LCD computer is a compact development board built around the ESP32-C6 chip, giving makers, students, hobbyists, and product developers an easy way to build touchscreen projects with wireless connectivity. It includes a built-in 1.47 inch capacitive touch LCD, WiFi 6, Bluetooth BLE 5, USB Type-C, and onboard storage expansion through a TF card slot.

The board is a great choice for small user interfaces, smart home controls, sensor displays, portable dashboards, simple IoT panels, and other ESP32-C6 projects where a screen and touch input are needed in one small module.

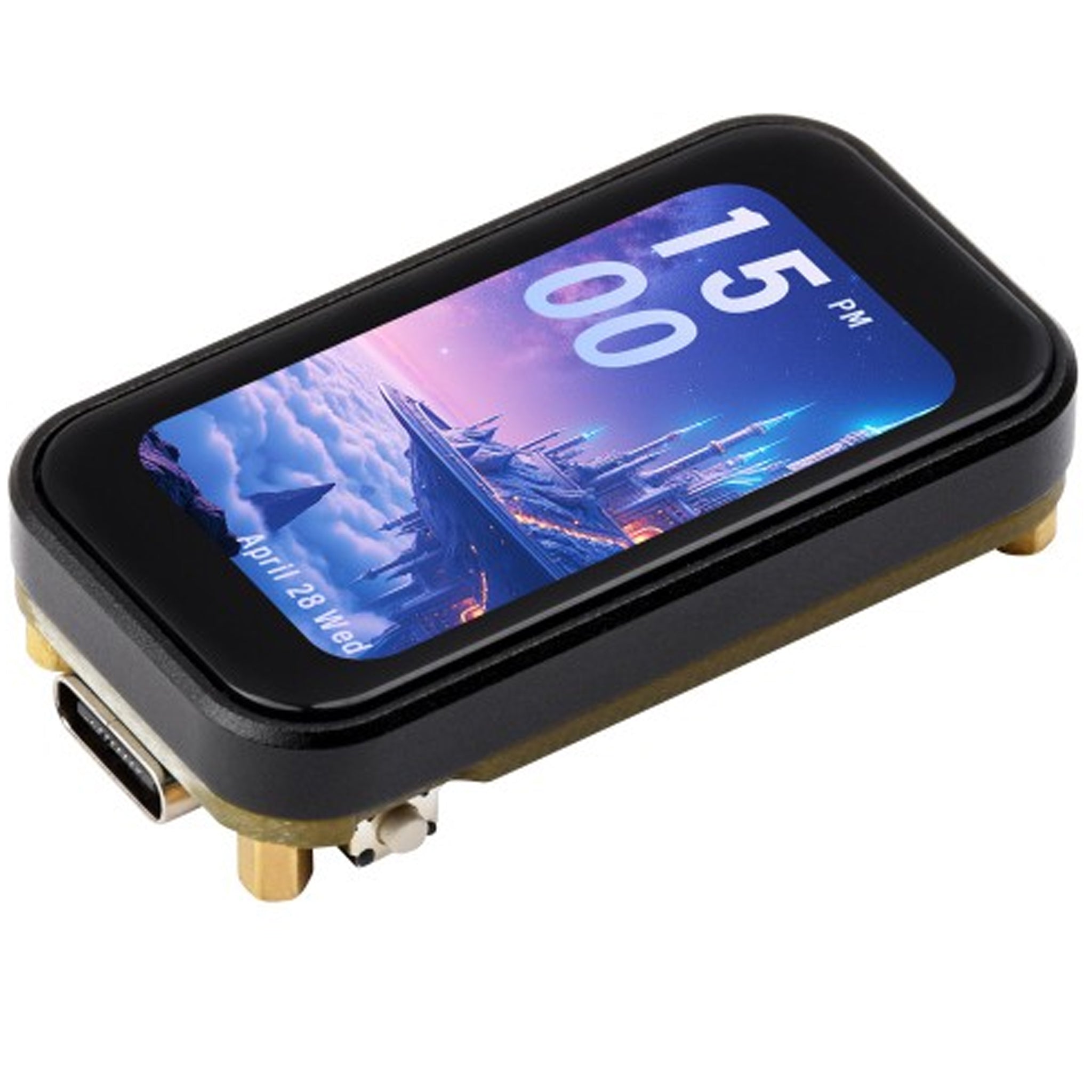

1.47 Inch ESP32 Touch LCD Display

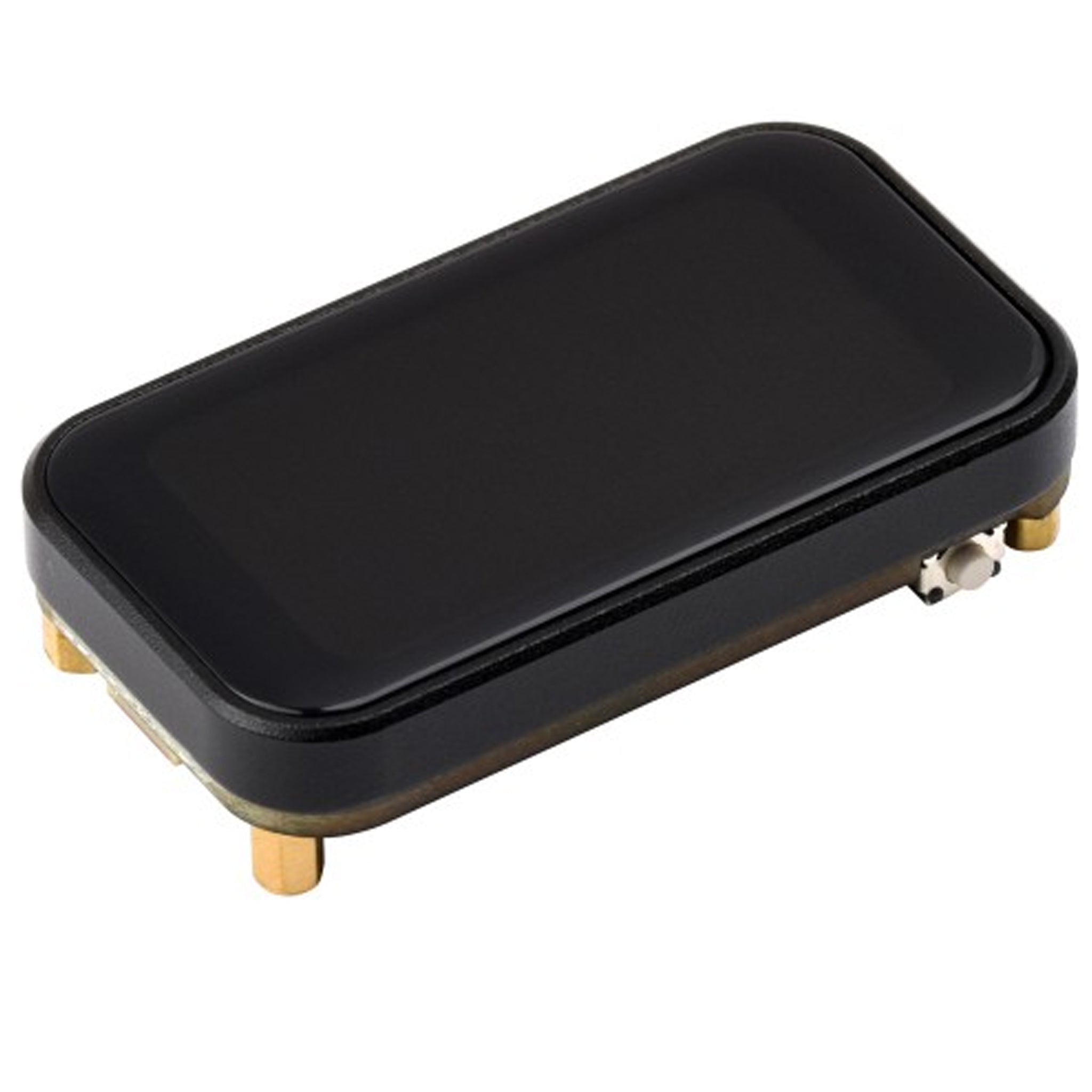

The onboard 1.47 inch IPS display gives your project a clear, colorful interface without needing to add a separate screen. With a 172 × 320 pixel resolution and 262K display color support, this ESP32 touchscreen development board can smoothly run GUI programs such as LVGL for buttons, menus, status screens, and other interactive layouts.

The capacitive touch panel makes it easy to create tap-based controls for everyday projects. It is especially useful for compact HMI projects, WiFi control panels, small data displays, and handheld ESP32 experiments.

ESP32-C6 with WiFi 6 and Bluetooth BLE 5

This ESP32-C6 touch display development board supports 2.4GHz WiFi 6 using 802.11 ax/b/g/n standards, along with Bluetooth 5 Low Energy and Bluetooth Mesh support. The onboard ceramic antenna keeps wireless setup simple while helping reduce the need for extra external hardware.

With both WiFi and BLE built in, this board is useful for connected electronics projects such as smart sensors, wireless controls, home automation devices, Bluetooth interfaces, and AIoT applications.

RISC-V Processing for ESP32-C6 Applications

The ESP32-C6FH8 chip includes a high-performance 32-bit RISC-V processor running up to 160MHz, plus a low-power 32-bit RISC-V processor running up to 20MHz. This gives the board a good balance of performance and power control for touchscreen interfaces, wireless communication, sensor monitoring, and low-power connected devices.

It also includes 8MB of onboard Flash memory, 320KB ROM, 512KB HP SRAM, and 16KB LP SRAM, making it capable enough for many modern ESP32-C6 development projects.

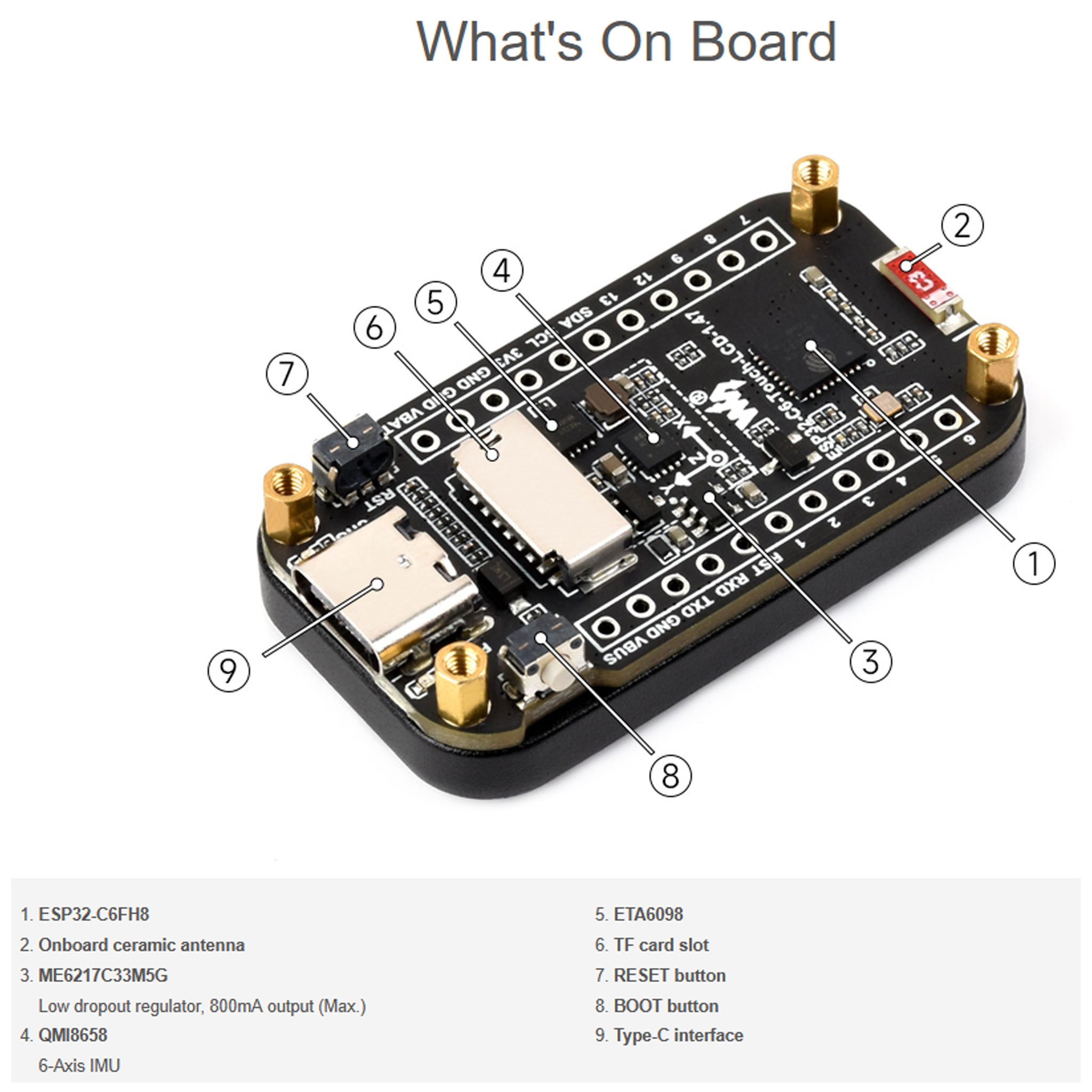

Built-In Features for Easier Prototyping

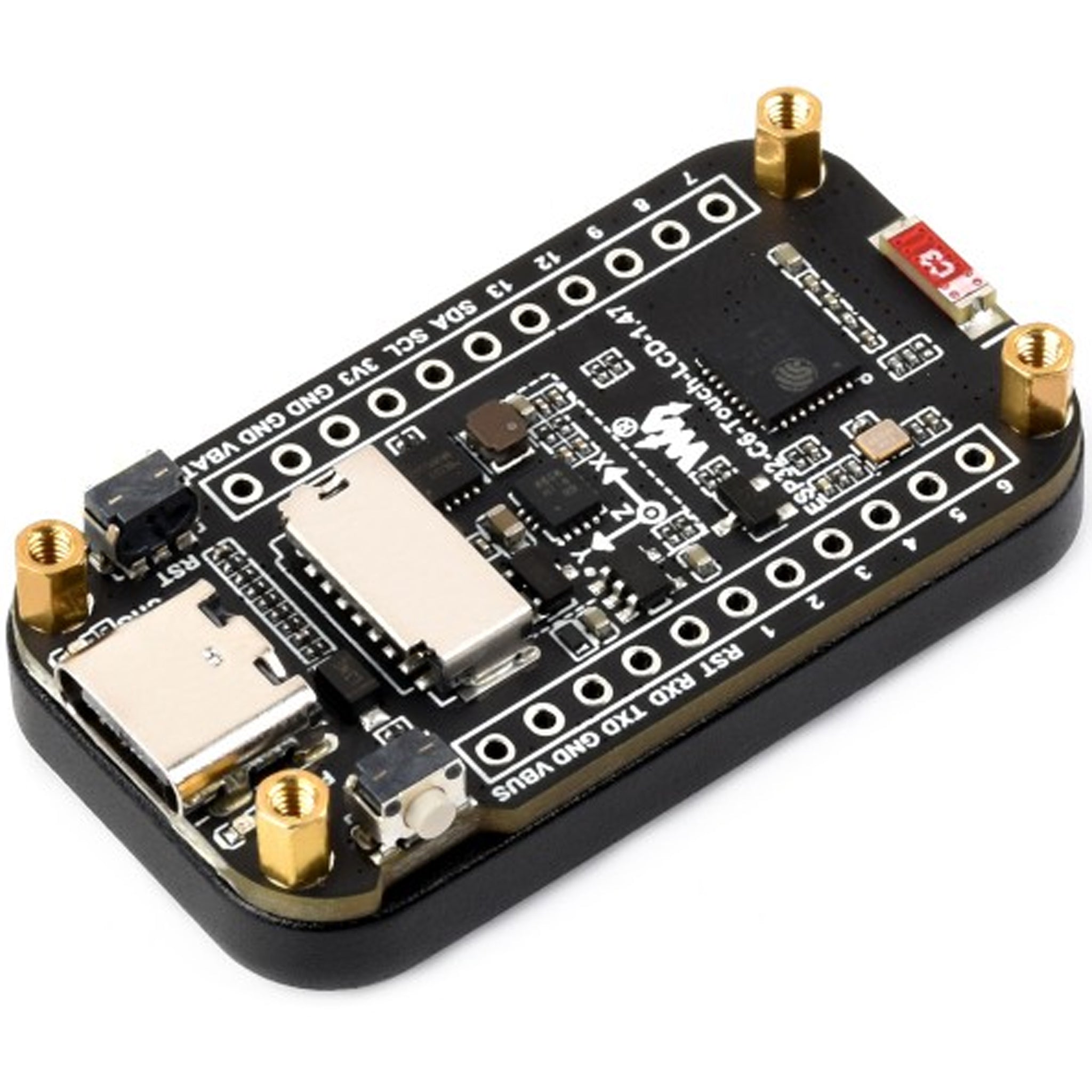

This ESP32 LCD development board includes several useful onboard features that make prototyping faster. The USB Type-C interface supports easy connection to a computer, while the RESET and BOOT buttons help with programming and testing. The TF card slot allows external storage for pictures, files, logs, or other project data.

The onboard QMI8658 6-axis IMU adds motion sensing capability, making the board useful for orientation-aware projects, handheld displays, motion input devices, and portable sensor interfaces.

Technical Specifications

Great for ESP32 HMI, IoT, and Touchscreen Projects

This ESP32-C6 1.47 inch touch display board is well suited for quick HMI development, WiFi-connected control panels, Bluetooth Low Energy projects, small sensor screens, smart device interfaces, and other compact electronics projects. The built-in screen, touch input, wireless connectivity, storage expansion, and motion sensing make it a flexible choice for both learning and real-world prototyping.

For users who want an ESP32 touchscreen board without wiring a separate display, this module gives you a clean all-in-one starting point for building interactive WiFi and BLE projects.

Documentation and Wiki:

Manufacturer wiki and setup information can be found at:

www.waveshare.com/wiki/ESP32-C6-Touch-LCD-1.47
