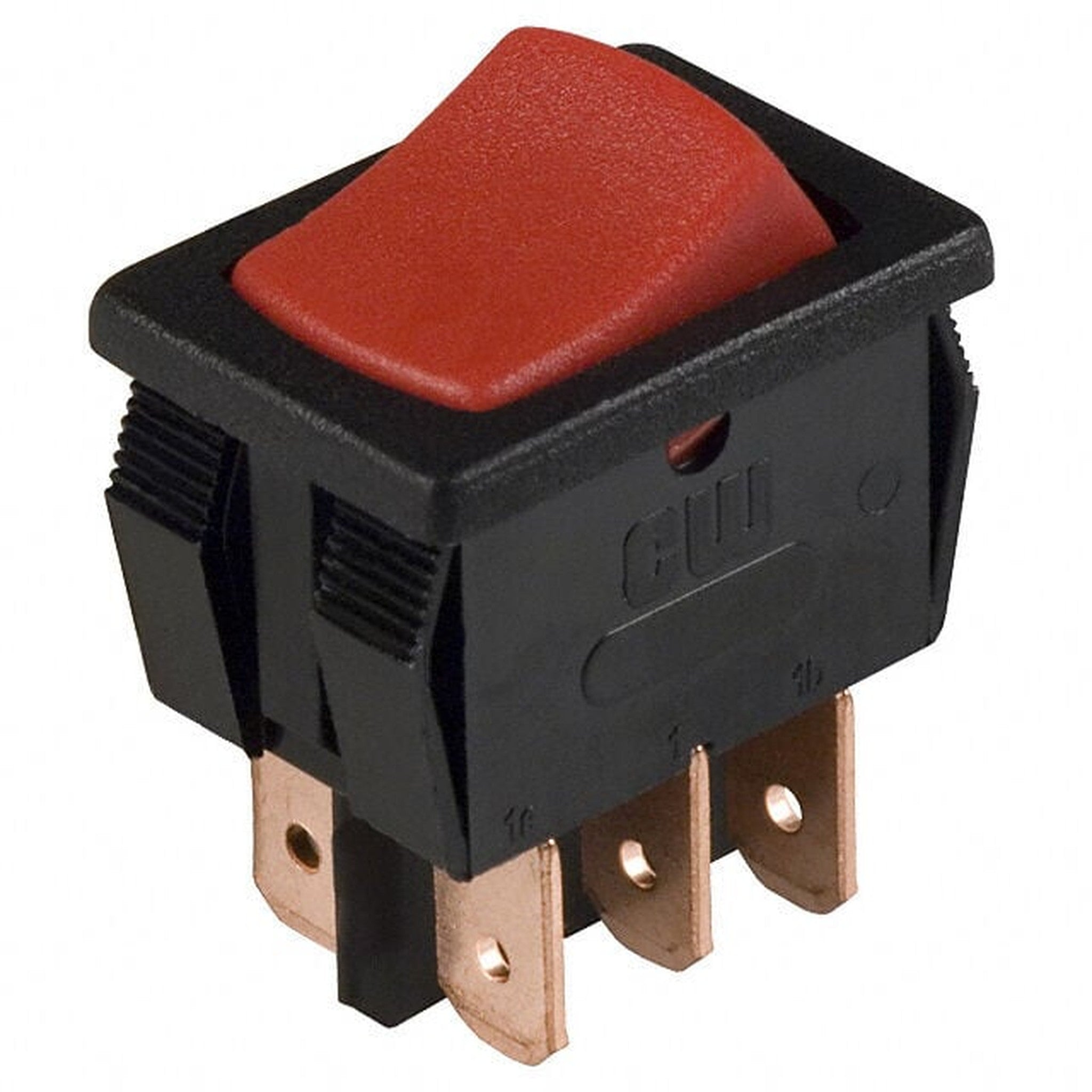

DPDT Momentary Rocker Switch 13A 125V, Red Panel Mount

This DPDT rocker switch gives you clean, positive control in a compact panel mount body. The bright red concave actuator is easy to spot and easy to press, so the switch position is clear at a glance. Rated for 13A at 125 V AC, it is a dependable choice for appliances, power tools, custom electronics, and everyday DIY projects. It is made by CW Industries as part number GRS-4023C-0005 and stocked at Vetco under SKU VUPN2971.

Momentary Rocker Switch With Mom-Off-Mom Action

Unlike a standard on/off switch, this momentary rocker switch springs back to the center off position the moment you let go. Press it up or down for as long as you need, then release to stop. That Mom-Off-Mom action is ideal for jogging a motor, running a pump, or any job where you want power only while you are holding the switch.

Easy Snap-In Panel Mount Installation

The snap-in design makes installing this panel mount rocker switch quick and tool-free. Cut a rectangular opening, push the switch in, and the built-in clips lock it firmly in place with no nuts or brackets to fumble with. The panel cutout measures 19.20 mm x 12.90 mm (0.76 in x 0.51 in), a common size that fits many enclosures and control panels.

Quick Connect Terminals for Fast, Solder-Free Wiring

Six 0.187 in (4.7 mm) quick connect terminals let you wire this DPDT rocker switch in seconds using standard push-on spade connectors, with no soldering required. That makes it beginner friendly while still standing up to regular use.

A Durable Red Rocker Switch Built to Last

This red rocker switch is rated for 100,000 mechanical cycles and 25,000 electrical cycles, and it operates reliably from -20°C to 105°C. It is RoHS3 compliant, so you can use it with confidence in modern builds.

Rocker Switch Specifications

Rocker Switch Dimensions
