DPDT 6V DC Coil - 12A 250V AC Contacts - Power Relay - Finder 56.32.9.006.0070
Finder Relay — DPDT 6V DC Coil, 12A 250V AC Contacts
Compact, Reliable Power Relay for Everyday Projects

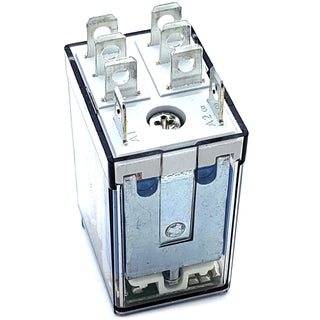

The Finder 56.32.9.006.0070 is a miniature power relay designed for easy switching of appliances, lights, and automation circuits. With its plug-in socket design, this electrical relay is simple to install and replace, making it perfect for DIYers, hobbyists, and professionals alike.
Dual-Pole Relay with Strong Switching Power
This Finder relay features 2-pole changeover (DPDT/CO) contacts rated up to 12A at 250V AC. It safely controls household or low-industrial loads including pumps, fans, and lighting systems. The compact design (just 20.7 × 37.2 × 27.7 mm) ensures it fits easily into control panels and project enclosures.
Everyday Benefits of a Finder Control Relay
- Easy installation: Plug-in mount for Finder 96 Series sockets; flange mount option with Faston 187 connections.
- Clear status indicators: Lockable test button, optional mechanical position indicator, and double LED (non-polarized DC).
- Durable: Rated for up to 100,000 electrical cycles of service life.
- Safe: Strong 4kV coil-to-contact insulation and wide –40 °C to +70 °C operating range.
- Compact footprint: Fits easily into tight spaces while delivering reliable switching capacity.
Key Technical Specs (Finder 56.32.9.006.0070)
| Contact configuration | 2 pole, CO (DPDT) |
| Rated contact voltage | 250 V AC |
| Rated current (per pole) | 12 A |
| Nominal coil voltage | 6 V DC |
| Operating range | 4.8...6.6 V DC |
| Coil resistance | ≈ 40 Ω |
| Power consumption | ≈ 1 W (150 mA) |
| Holding voltage | 3.6 V |
| Drop-out voltage | 0.6 V |
| Insulation (coil/contacts) | 4 kV |
| Electrical life | 100,000 cycles |
| Ambient temperature | –40 °C to +70 °C |
| Contact material | AgNi |
| Mounting | Plug-in (96 Series sockets) or flange adaptor with Faston 187 (4.8 × 0.5 mm) |
| Dimensions (W × L × H) | 20.7 × 37.2 × 27.7 mm |
| Options | Lockable test button, mechanical indicator, LED indicator |
Where to Use This Finder Relay
This miniature power relay is excellent for home automation, DIY electronics, appliance control, and low-industrial automation. The 6V DC coil can be driven by microcontrollers or low-voltage control circuits, while the 12A contacts handle higher current loads with ease. Its versatility makes it a trusted choice for hobby projects and professional control panels alike.
Product Identification
Series: Finder 56 | Type: 56.32.9.006.0070 | Product Code: 563290060070
Note: Technical values are provided directly from Finder’s datasheet for this model.
