DPDT 24V DC Coil - 12A 250V AC Contacts - Power Relay - Finder 56.32.9.024.0070
Finder Relay — DPDT 24V DC Coil, 12A 250V AC Contacts
Durable 24V DC Coil Relay for Everyday Control

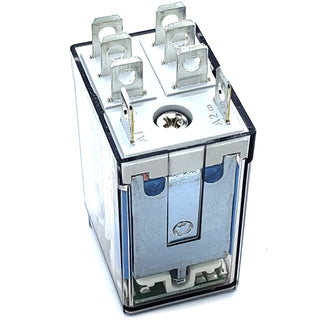

The Finder 56.32.9.024.0070 is a DPDT 24V relay built for reliable switching in automation systems, DIY electronics, and appliance control. This miniature power relay offers a compact, easy-to-install design with a plug-in relay socket option, making it a versatile solution for both consumer and professional applications.
High Power Switching with DPDT Contacts
This Finder relay 24V provides 2-pole changeover (DPDT/CO) contacts, rated up to 12A at 250V AC. It handles lighting, motors, pumps, and other household or workshop loads safely. Measuring just 20.7 × 37.2 × 27.7 mm, it delivers strong switching performance in a small footprint.
Key Benefits of the Finder 56.32 Relay
- Easy installation: Plug-in mount for Finder 96 Series sockets, or flange adaptor with Faston 187 connectors.
- Status indicators: Optional lockable test button, mechanical position indicator, and double LED (non-polarized DC).
- Reliable and long-lasting: Rated for up to 100,000 electrical cycles.
- Safe operation: 4kV insulation between coil and contacts, plus an ambient operating range of –40 °C to +70 °C.
- Compact design: Fits easily into control boxes, junctions, and project enclosures.
Technical Specifications (Finder 56.32.9.024.0070)
| Contact configuration | 2 pole, CO (DPDT) |
| Rated contact voltage | 250 V AC |
| Rated current (per pole) | 12 A |
| Nominal coil voltage | 24 V DC |
| Operating range | 19.2...26.4 V DC |
| Coil resistance | ≈ 600 Ω |
| Power consumption | ≈ 1 W (40 mA) |
| Holding voltage | 14.4 V |
| Drop-out voltage | 2.4 V |
| Insulation (coil/contacts) | 4 kV |
| Electrical life | 100,000 cycles |
| Ambient temperature | –40 °C to +70 °C |
| Contact material | AgNi |
| Mounting | Plug-in (96 Series sockets) or flange adaptor with Faston 187 (4.8 × 0.5 mm) |
| Dimensions (W × L × H) | 20.7 × 37.2 × 27.7 mm |
| Options | Lockable test button, mechanical indicator, LED indicator |
Applications for the Finder 24V DC Coil Relay
This Finder DPDT relay is ideal for home automation, appliance control, and automation panels. The 24V DC coil relay can be driven by standard control circuits and PLCs, while the high-current 12A 250V AC contacts handle larger electrical loads with confidence. Its plug-in compatibility with Finder 96 Series sockets makes it a flexible and service-friendly choice for modern installations.
Product Identification
Series: Finder 56 | Type: 56.32.9.024.0070 | Product Code: 563290240070
Note: Specifications provided directly from Finder’s datasheet for this model.
