DPDT 12V DC Coil - 12A 250V AC Contacts - Power Relay - Finder 56.32.9.012.0070
Finder Relay — DPDT 12V DC Coil, 12A 250V AC Contacts
Reliable 12V DC Coil Relay for Everyday Applications

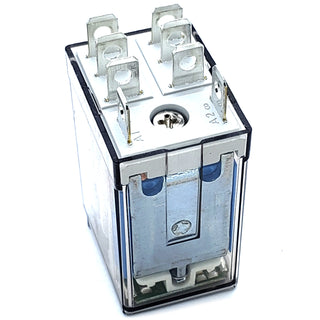

The Finder 56.32.9.012.0070 is a DPDT 12V relay designed for safe, dependable switching in automation, hobby, and appliance control. With its compact design and simple plug-in relay socket mounting, this miniature power relay is easy to install and service, making it a practical choice for DIY electronics and professional use alike.
High Power Switching with DPDT Contacts
This Finder relay 12V features 2-pole changeover (DPDT/CO) contacts, rated for 12A at 250V AC. It can handle common household or workshop loads such as pumps, fans, or lighting. Its small footprint of 20.7 × 37.2 × 27.7 mm makes it ideal for tight enclosures while still delivering high current switching capability.
Everyday Benefits of the Finder 56.32 Relay
- Easy installation: Plug-in mount on 96 Series sockets, or optional flange adaptor with Faston 187 connections.
- Status at a glance: Available with lockable test button, mechanical indicator, and double LED (non-polarized DC).
- Durable: Rated for up to 100,000 electrical cycles for long service life.
- Safe and rugged: 4kV insulation between coil and contacts, and an ambient operating range of –40 °C to +70 °C.
- Compact design: Fits neatly into panels, junction boxes, and project housings.
Key Technical Specs (Finder 56.32.9.012.0070)
| Contact configuration | 2 pole, CO (DPDT) |
| Rated contact voltage | 250 V AC |
| Rated current (per pole) | 12 A |
| Nominal coil voltage | 12 V DC |
| Operating range | 9.6...13.2 V DC |
| Coil resistance | ≈ 140 Ω |
| Power consumption | ≈ 1 W (86 mA) |
| Holding voltage | 7.2 V |
| Drop-out voltage | 1.2 V |
| Insulation (coil/contacts) | 4 kV |
| Electrical life | 100,000 cycles |
| Ambient temperature | –40 °C to +70 °C |
| Contact material | AgNi |
| Mounting | Plug-in (96 Series sockets) or flange adaptor with Faston 187 (4.8 × 0.5 mm) |
| Dimensions (W × L × H) | 20.7 × 37.2 × 27.7 mm |
| Options | Lockable test button, mechanical indicator, LED indicator |
Applications for This Finder 12V DC Coil Relay
Use this Finder DPDT relay in home automation, appliance control, and DIY electronics projects. The 12V DC coil relay can be driven directly by low-voltage control circuits, including microcontrollers and relay modules, while the high-current 12A 250V AC contacts safely switch larger loads. Its versatility makes it an excellent choice for compact, reliable, and long-lasting control solutions.
Product Identification
Series: Finder 56 | Type: 56.32.9.012.0070 | Product Code: 563290120070
Note: Technical data provided directly from Finder’s datasheet for this model.
