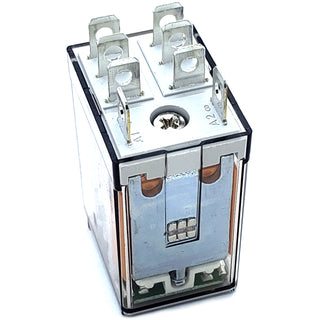

DPDT 12V AC Coil - 12A 250V AC Contacts - Power Relay - Finder 56.32.8.012.0050
Finder Relay — Miniature Power Relay (12 A, Plug-In)
Easy, Reliable Electrical Relay for Everyday Projects
This Finder relay makes it simple to switch household-level loads safely and reliably. It’s a compact, easy-to-use control relay you can plug into a matching socket, ideal for home automation, DIY electronics, hobby builds, and general switching tasks. Short on space? Its small footprint fits neatly in junction boxes and control panels.
Plug-In Relay Convenience with Dual Changeover Contacts
With 2-pole changeover (DPDT/CO) contacts rated up to 12 A and 250 V AC, this miniature power relay handles lights, fans, pumps, and other appliances with confidence. The plug-in socket design speeds installation and service—no soldering on the relay body required.
Why Choose a Finder Control Relay?
- Simple to use: Plug-in mounting on matching 96 Series sockets; optional flange mount adaptor available.
- Clear feedback: Optional lockable test button, mechanical position indicator, and double LED (DC non-polarized) for quick status checks.
- Built for real-world duty: Up to 100,000 electrical cycles and a wide –40 °C to +70 °C ambient range.
- Strong isolation: 4 kV insulation (coil to contacts) enhances safety.
- Compact size: Only 20.7 × 37.2 × 27.7 mm—easy to fit in tight spaces.
Key Technical Specs (Finder Miniature Power Relay 12 A)
| Contact configuration | 2 pole, changeover (CO / nPDT / DPDT) |
| Rated contact voltage | 250 V AC |
| Rated current (per pole) | 12 A |
| Coil type / supply | DC coil, 6 V DC |
| Coil resistance / power | ≈ 40 Ω, 1 W (typ.) |
| Coil current (nominal) | ≈ 150 mA at 6 V DC |
| Must drop-out / holding voltage | ≈ 0.6 V / 3.6 V |
| Electrical life | Up to 100,000 cycles |
| Insulation (coil/contacts) | 4 kV |
| Ambient temperature | –40 °C to +70 °C |
| Contact material | AgNi |
| Dimensions (W × L × H) | 20.7 × 37.2 × 27.7 mm |
| Mounting | Plug-in on 96 Series sockets; optional flange adaptor |
| Terminations (adaptor) | Faston 187 (4.8 × 0.5 mm) |
| Options | Lockable test button, mechanical indicator, double LED (DC non-polarized) |
Where This Miniature Power Relay Fits
Use this Finder relay as a safe, dependable electrical relay in small control boxes, smart-home projects, or benchtop builds. Pair the 6 V DC coil with a low-voltage driver circuit (e.g., a transistor or relay module) and let the 12 A contacts do the heavy lifting on the load side. For the easiest setup, choose a matching plug-in relay socket from the 96 Series.
Model & Identification
Series: Finder 56 (Type 56.32) | Product code: 563290060070 (include this code when checking compatibility or ordering accessories).
Note: Specifications above summarize the official technical data for this specific model and its available options.
