DPDT 120V AC Coil - 16A 250V AC Contacts - Power Relay - Finder 62.32.8.120.4050
Finder Relay — DPDT 120V AC Coil, 16A 250V AC Contacts
High Power 120V AC Coil Relay for Reliable Switching

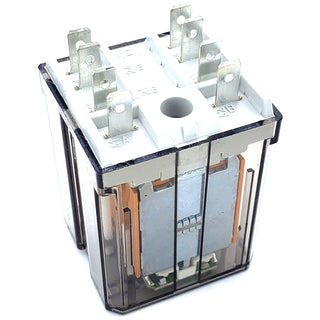

The Finder 62.32.8.120.4050 is a DPDT 120V AC relay designed for demanding control and automation applications. With its sturdy build, 16A 250V AC contacts, and convenient plug-in relay design, this Finder power relay is a dependable choice for switching heavy household or industrial loads such as HVAC units, pumps, and lighting systems.
Strong Switching Capacity with DPDT Contacts
This Finder relay 120V AC offers 2-pole changeover (DPDT/CO) contacts rated for 16A at 250V AC. It provides reinforced safety with wide contact gaps and high insulation levels, making it suitable for higher voltage applications. Despite its rugged performance, the unit remains compact at 38.2 × 49.1 × 35.8 mm, fitting neatly into panels and enclosures.
Everyday Benefits of the Finder 62.32 Relay
- Simple installation: Compatible with Finder 92 Series sockets or Faston 187 connections.
- Status visibility: Built-in mechanical position indicator, optional lockable test button, and LED for AC coil versions.
- Safe performance: 6kV insulation between coil and contacts with reinforced separation per EN 60335-1.
- Durable service life: Rated for up to 100,000 electrical cycles.
- Wide temperature range: Operates reliably from –40 °C to +70 °C.
Technical Specifications (Finder 62.32.8.120.4050)
| Contact configuration | 2 pole, CO (DPDT) |
| Rated contact voltage | 250 V AC |
| Rated current (per pole) | 16 A |
| Nominal coil voltage | 120 V AC |
| Operating range | 96...132 V AC |
| Coil resistance | ≈ 1940 Ω |
| Power consumption | ≈ 2.2 VA (18.6 mA) |
| Holding voltage | 96 V |
| Drop-out voltage | 24 V |
| Insulation (coil/contacts) | 6 kV reinforced |
| Electrical life | 100,000 cycles |
| Ambient temperature | –40 °C to +70 °C |
| Contact material | AgSnO2 |
| Mounting | Plug-in (92 Series sockets) or Faston 187 (4.8 × 0.5 mm) |
| Dimensions (W × L × H) | 38.2 × 49.1 × 35.8 mm |
| Options | Lockable test button, LED indicator, mechanical indicator |
Applications for the Finder 120V AC Coil Relay
This Finder DPDT relay is ideal for HVAC systems, appliance control, industrial machinery, and heavy-duty automation panels. The 120V AC coil relay integrates easily into standard control circuits while its 16A contacts handle high-current loads with safety and reliability. Its reinforced insulation and rugged design make it an excellent choice for both residential and industrial environments.
Product Identification
Series: Finder 62 | Type: 62.32.8.120.4050 | Product Code: 623281204050
Note: Specifications provided directly from Finder’s datasheet for this model.
