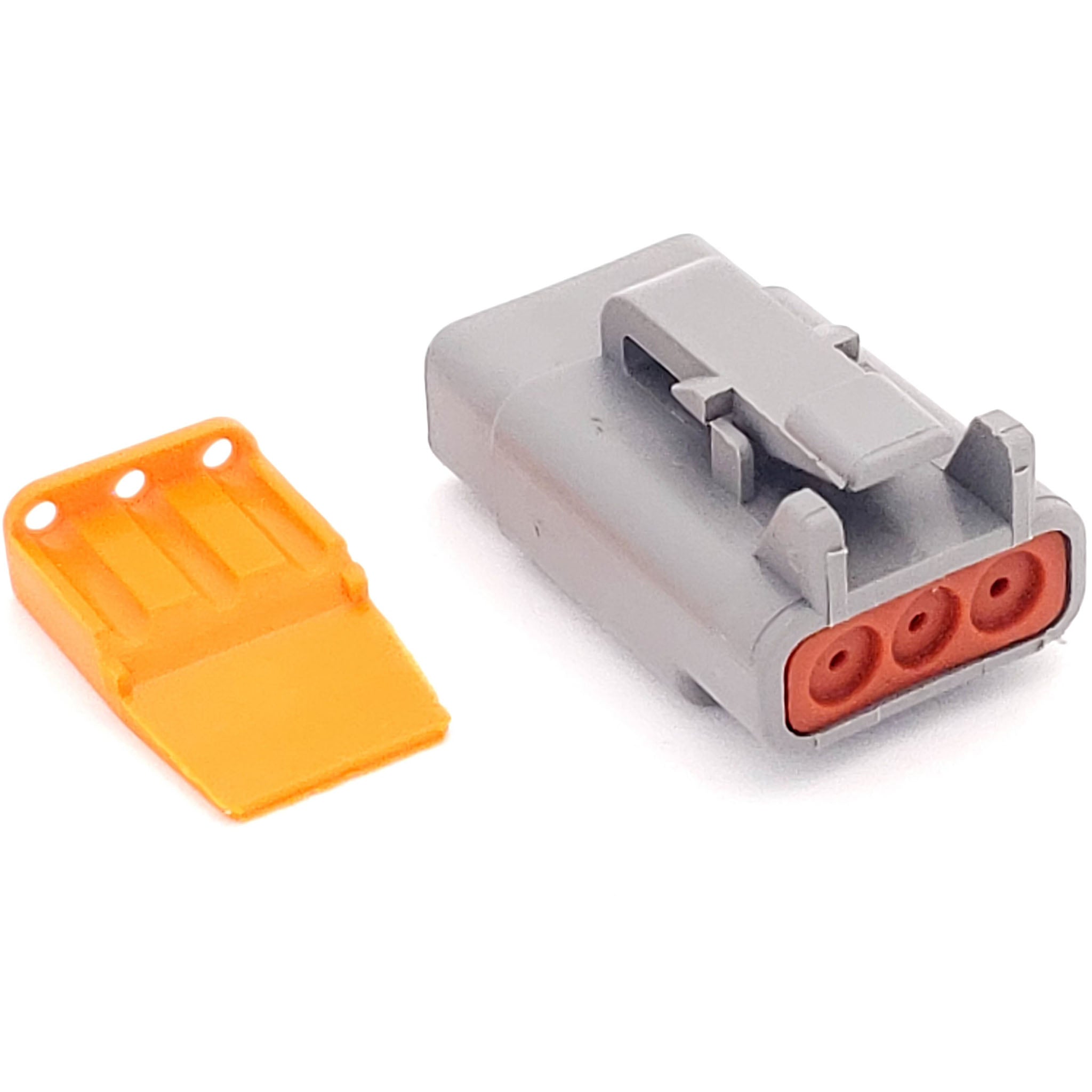

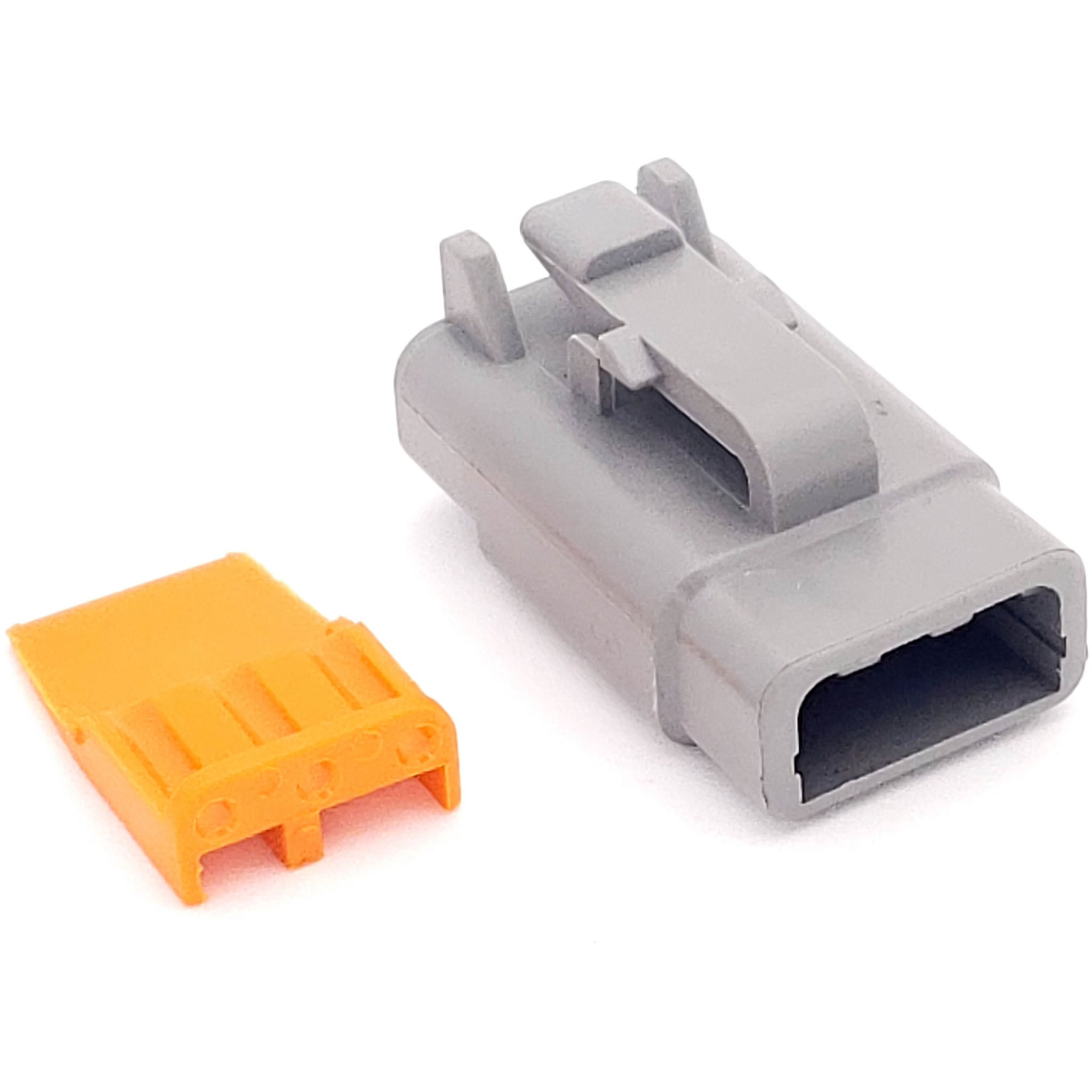

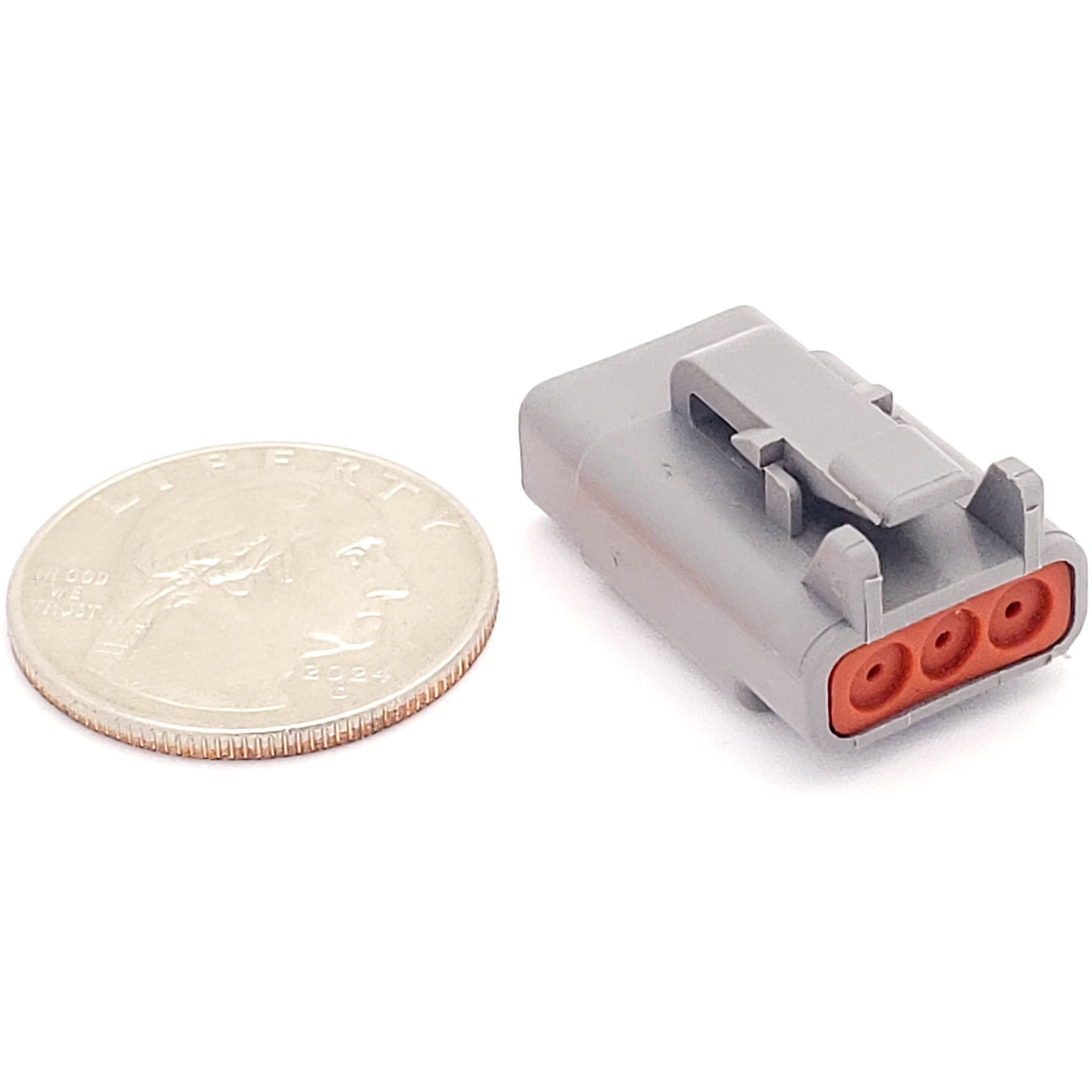

Deutsch DTM 3-Way Male Housing
3-Way Deutsch DTM Male Connector HousingEasy, Reliable Connections with Deutsch DTM 3-Way Male Housing
Looking for a dependable, easy-to-use connector for your next wiring project? The 3-Way Deutsch DTM male connector housing is the perfect choice for automotive, marine, and DIY applications. Built for low-current signal wiring, this compact connector helps you make strong, trustworthy connections every time.
Key Features of Deutsch DTM 3-Way Connector
- Waterproof and Durable: IP68-rated waterproofing keeps dirt, dust, and moisture out—even in tough conditions.
- Secure Connection: Integrated latching system and thermoplastic wedgelock prevent accidental disconnects and ensure proper pin alignment.
- Flexible Wire Support: Handles 16-22 AWG wire (contact size 20, up to 7.5 amps per circuit), perfect for signal and control wiring.
- All-Weather Performance: Operates reliably from -55°C to +125°C, ideal for outdoor and harsh environments.
- Easy Assembly: Compact housing with silicone grommets and seals—simple to use with no special tools required.
Technical Specifications
- Model/Part Number: 5973C
- Circuit Count: 3-way male
- Wire Gauge: Accepts 16-22 AWG
- Contact Size: 20
- Current Rating: 7.5 Amps per contact
- Material: Rectangular thermoplastic shell
- Sealing: Silicone rubber grommets and seals, IP68 waterproof rating
- Temperature Range: -55 °C to +125 °C
- Locking Mechanism: Integrated latch with thermoplastic wedgelock
Ideal Uses for Deutsch DTM Connectors
Deutsch DTM connectors are trusted for use in cars, trucks, motorcycles, off-road vehicles, boats, industrial equipment, and more. Their weatherproof design and secure locking system make them a top choice for repair, upgrades, and custom wiring projects where reliability matters most.
Why Choose This Deutsch Connector?
This 3-way Deutsch DTM male housing offers everyday users a professional-grade wiring solution that’s simple to install, tough enough for the elements, and trusted in demanding environments. Get clean, long-lasting connections every time—without hassle.
